1064 nm Ultrafast Fiber Laser


Rainbow 1064 OEM is a miniaturized version of Rainbow 1064 Pro. The laser is highly compact and is specially developed for easy integration with multi-purpose spectroscopy/microscopy systems.

Rainbow 1064 OEM has flexible parameters upon user requests. The laser operates at a wavelength of 1064±2 nm, and has pulse width of <15ps, repetition rate range between 50±0.5MHz and an average output power up to 200mW. The laser can couple with our high-performance frequency-doubling module for 532nm (Green) output.

Rainbow 1064 OEM is ideal for applications such as high-power ultrafast laser seeding, super-continuum generation, time-resolved fluorescence excitation, and pump-probe spectroscopy/microscopy.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1064 nm Ultrafast Fiber Laser
    • Commodity ID: 1041148264595677184

    Rainbow 1064 OEM is a miniaturized version of Rainbow 1064 Pro. The laser is highly compact and is specially developed for easy integration with multi-purpose spectroscopy/microscopy systems.</br></br> Rainbow 1064 OEM has flexible parameters upon user requests. The laser operates at a wavelength of 1064±2 nm, and has pulse width of <15ps, repetition rate range between 50±0.5MHz and an average output power up to 200mW. The laser can couple with our high-performance frequency-doubling module for 532nm (Green) output.</br></br> Rainbow 1064 OEM is ideal for applications such as high-power ultrafast laser seeding, super-continuum generation, time-resolved fluorescence excitation, and pump-probe spectroscopy/microscopy.

    Laser Parameters

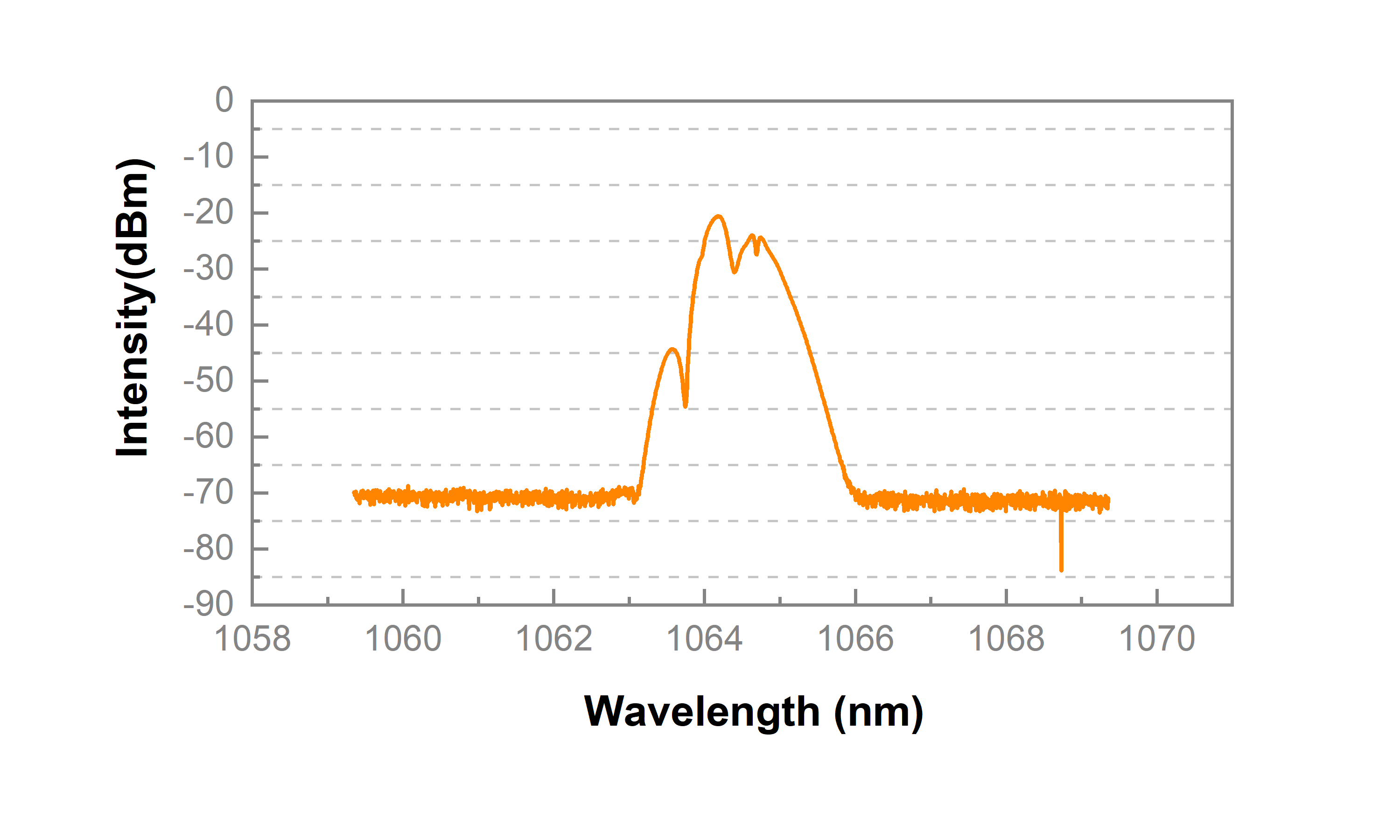

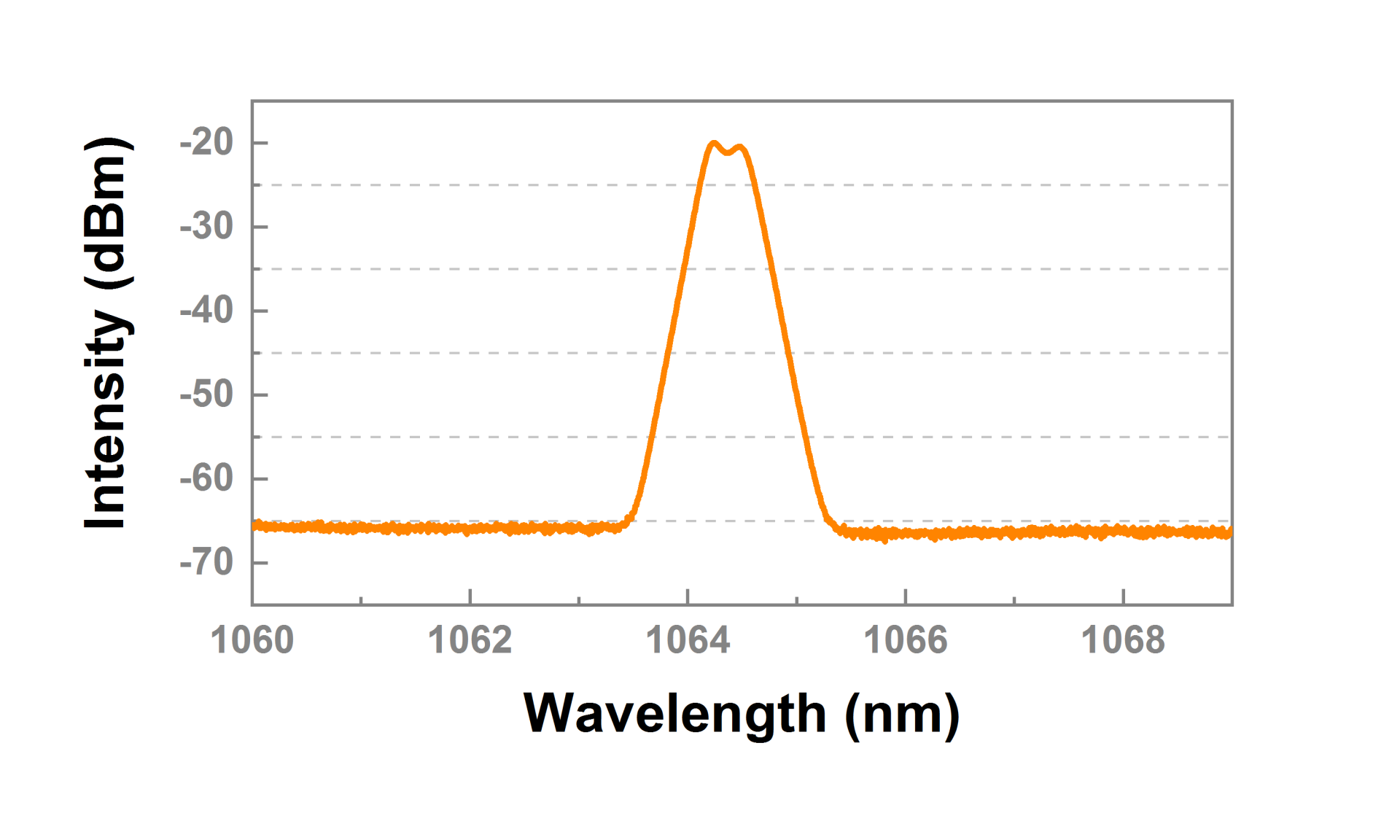

    Operating Wavelength

    1064±2 nm

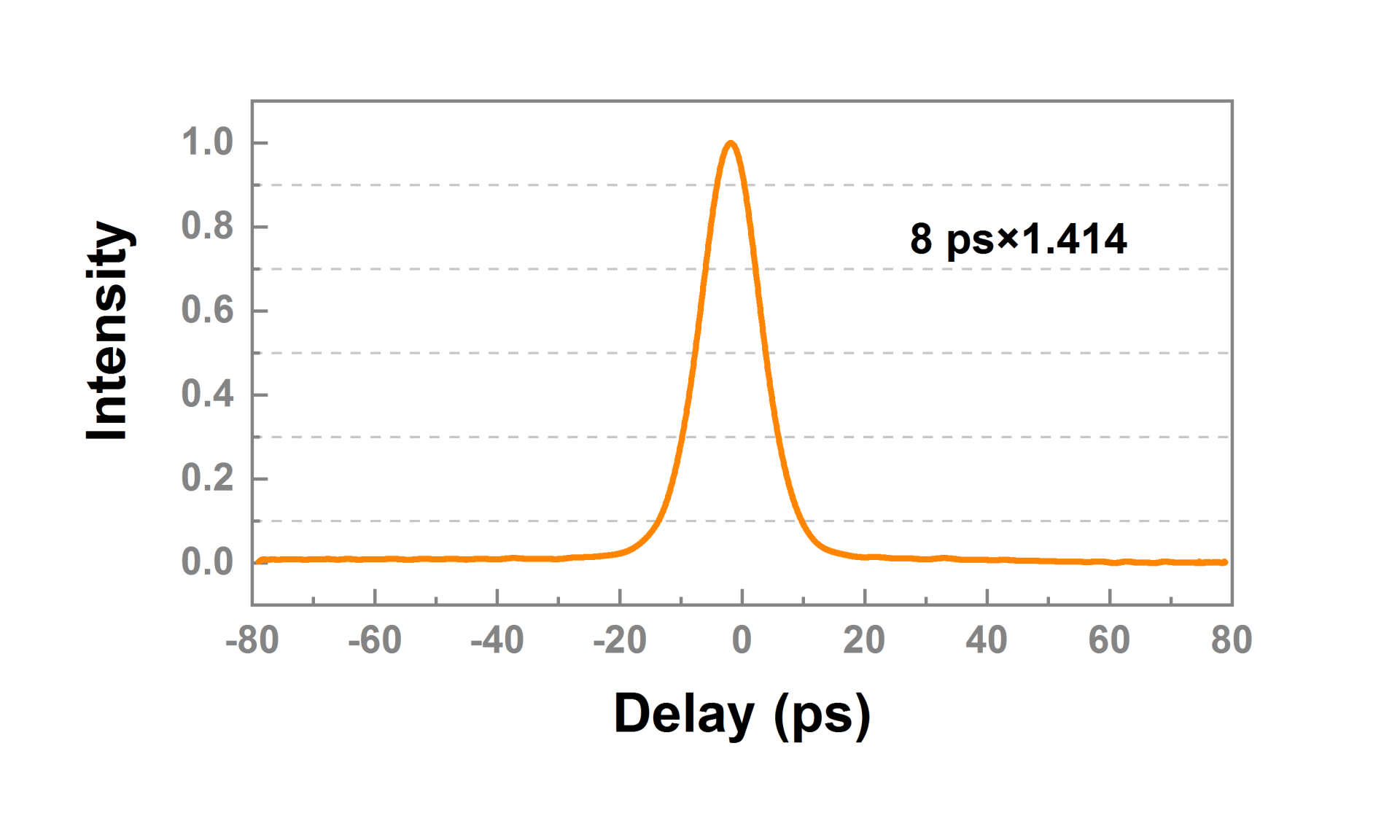

    Pulse width (FWHM)

    <15 ps

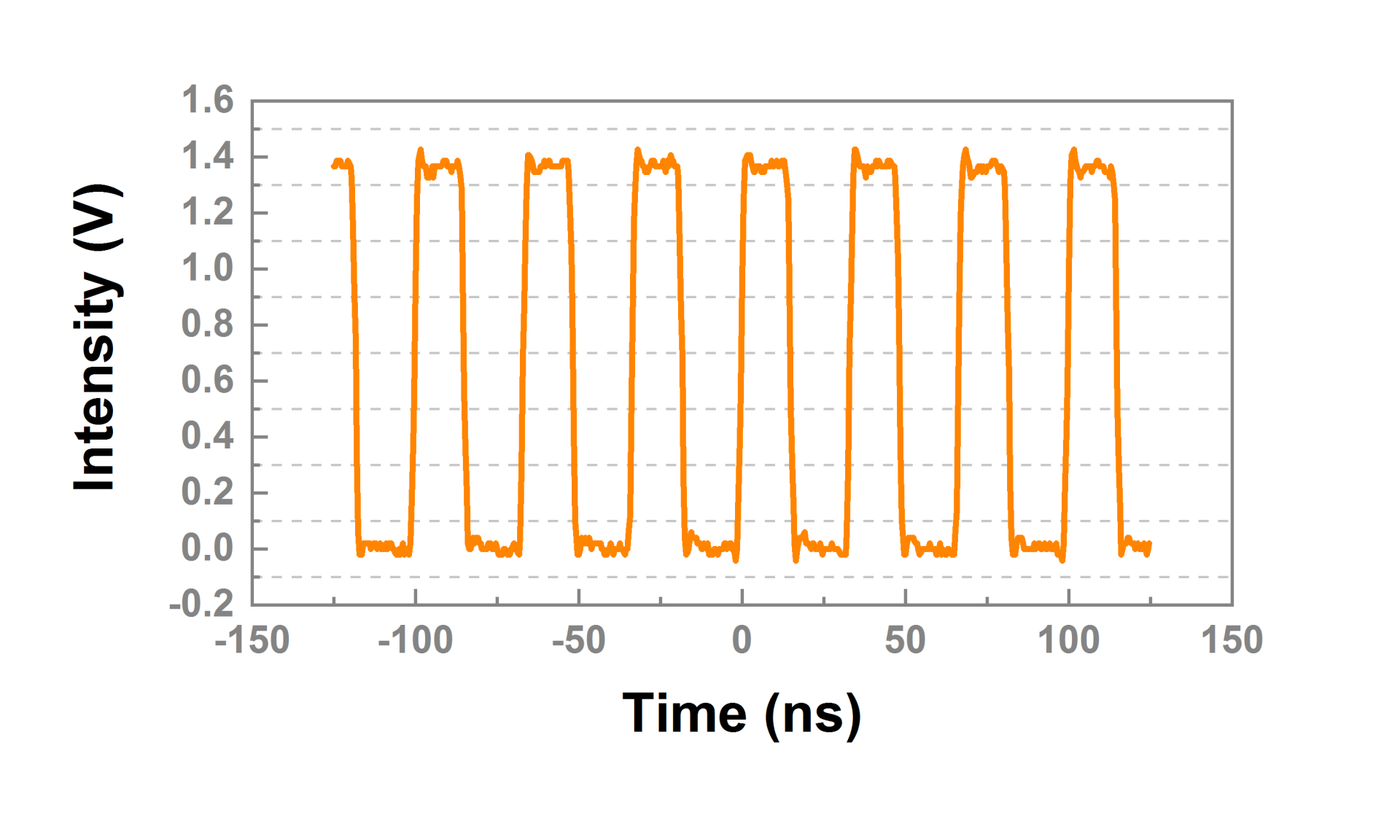

    Repetition Rate

    50±0.5 MHz

    Average Power

    >200 mW

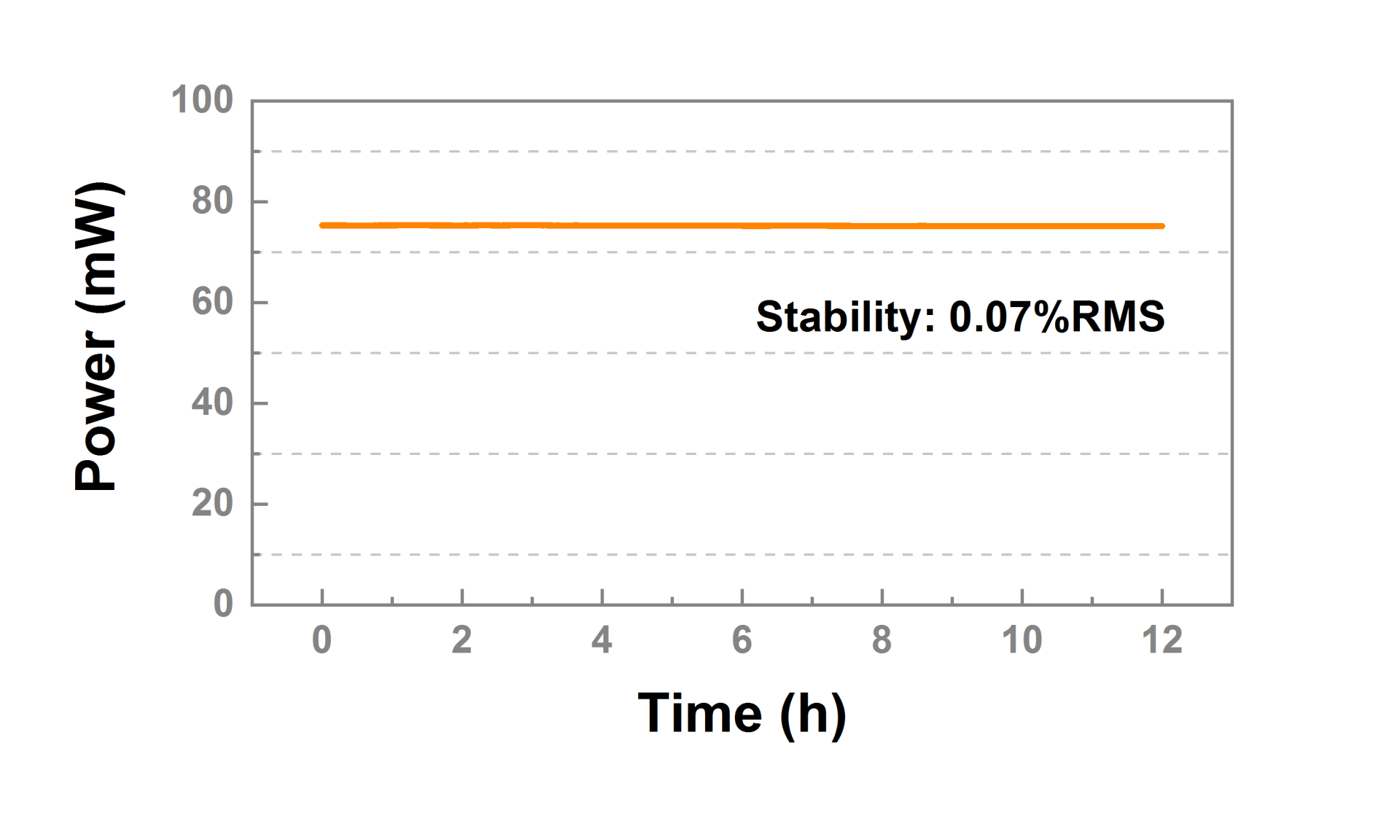

    Average Power Stability

    <0.5% RMS(12h@25℃)

    Pigtail Length

    1 m

    Polarization Extinction Ratio

    >20 dB

    Output Type

    PM SM fiber, FC/APC narrow key jumper

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    12 VDC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    1.2 kg

    Dimensions

    204×127×70 mm

    Cooling

     Air cooling

  •



  • Key Features:

    · Customizable wavelength

    · Picosecond level

    · Linear polarization

    · Diffration-limited beam

    Applications:

    · Ultrafast seed source

    · Time resolved fluorescence

    · laser ranging

    · Supercontinuum generation
