OPPO MIR-cw Widely Tunable Fiber Laser


OPPO MIR is a tunable laser based on optical parameter oscillation (OPO).

OPPO MIR has tunable wavelength range of 1.4-1.8um & 2.3-4um, with maximum output power >1W at characteristic wavelengths.

OPPO MIR has important applications in material characterizations, remote sensing, medical and biomedical fields. It boasts rugged industrial design ensuring high stability and high reliability. The user-friendly software allows easy control of both operating wavelength and power. With high brightness, good coherence performance, it can be widely used in mid-infrared sensing and infrared materials/structure characterizations etc.

product details

  • Detail

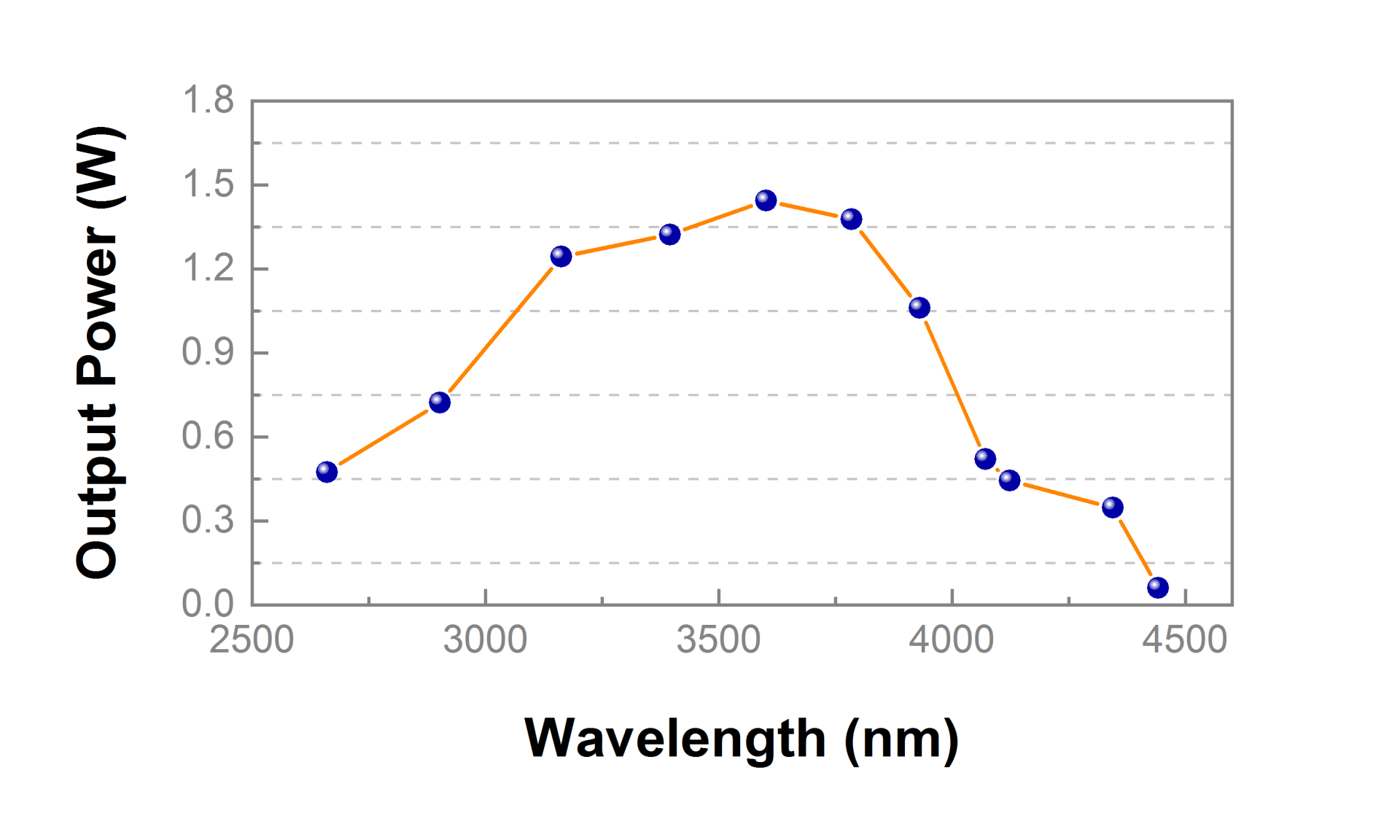

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: OPPO MIR-cw Widely Tunable Fiber Laser
    • Commodity ID: 1041146935785644032

    OPPO MIR is a tunable laser based on optical parameter oscillation (OPO). </br></br> OPPO MIR has tunable wavelength range of 1.4-1.8um & 2.3-4um, with maximum output power >1W at characteristic wavelengths.</br></br> OPPO MIR has important applications in material characterizations, remote sensing, medical and biomedical fields. It boasts rugged industrial design ensuring high stability and high reliability. The user-friendly software allows easy control of both operating wavelength and power. With high brightness, good coherence performance, it can be widely used in mid-infrared sensing and infrared materials/structure characterizations etc.

    Laser Parameters                                                        Signal

    Idle

    Operating Wavelength

    1.4-1.8 μm

    2.6-4.3 μm

    Output Power

    0.3 W@1.7 μm

    >1.2 W@3.5 μm

    Spectral linewidth

    <100 MHz

    Mode-hop free tuning range

      <1 GHz
    Beam Quality

    M2<1.4

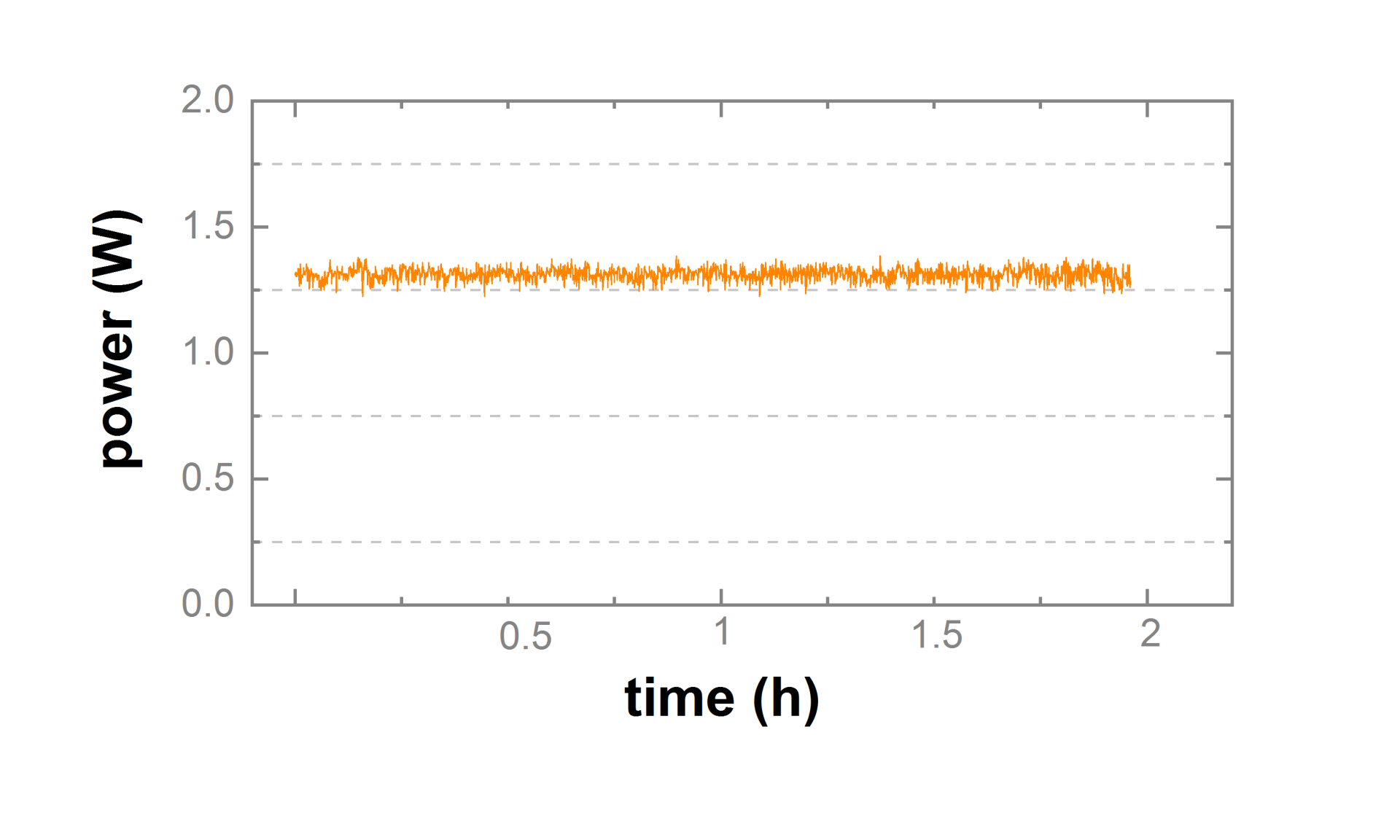

    Aerage Power Stability

    <2% RMS(12h@25℃)

    Control Mode

    PC software

    Output Type

    Spatially collimated output

    Electrical, Environmental and Mechanical Parameters



    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    25 kg

    Dimensions

    548×430×185 mm,255×140×100 mm

    Cooling

     Water cooling

  • Key Features:

    ·  Tunable wavelength

    ·   Mode-hop-free sweep

    ·   Excellent power stability

    ·   Diffration limited beam

    Applications:

    ·   Gas sensing

    ·   Atmospheric remote sensing

    ·   Biomedical analysis

    ·   Test and measurement
