1064 nm Narrow Linewidth Fiber Laser


Ultraline 1064 is a 1um CW fiber laser with MHz level narrow line width. It features high reliability and high output power up to Watt-level.

Ultraline 1064 is widely used in MIR laser generation, spectroscopy analysis, non-linear optics and other research areas.
The laser can be used with YDFA-HP to generate 10-W output power.

product details

  • Detail

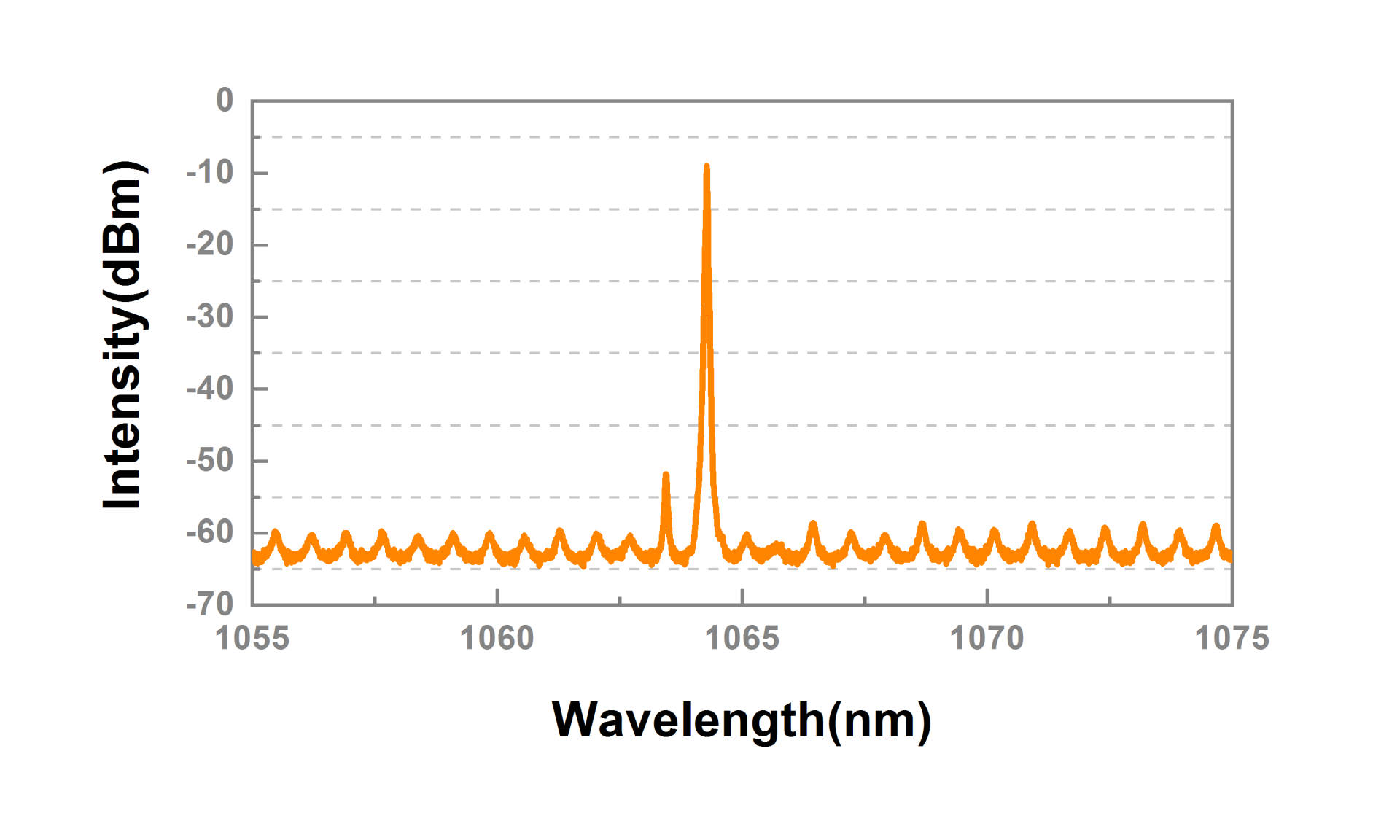

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1064 nm Narrow Linewidth Fiber Laser
    • Commodity ID: 1041147020523167744

    Ultraline 1064 is a 1um CW fiber laser with MHz level narrow line width. It features high reliability and high output power up to Watt-level.</br></br> Ultraline 1064 is widely used in MIR laser generation, spectroscopy analysis, non-linear optics and other research areas.</br> The laser can be used with YDFA-HP to generate 10-W output power.

    Laser Parameters

    Operating Wavelength

    1064±2 nm

    Spectral Bandwidth

    ~2 MHz

    Average Power

    100 mW, 1W

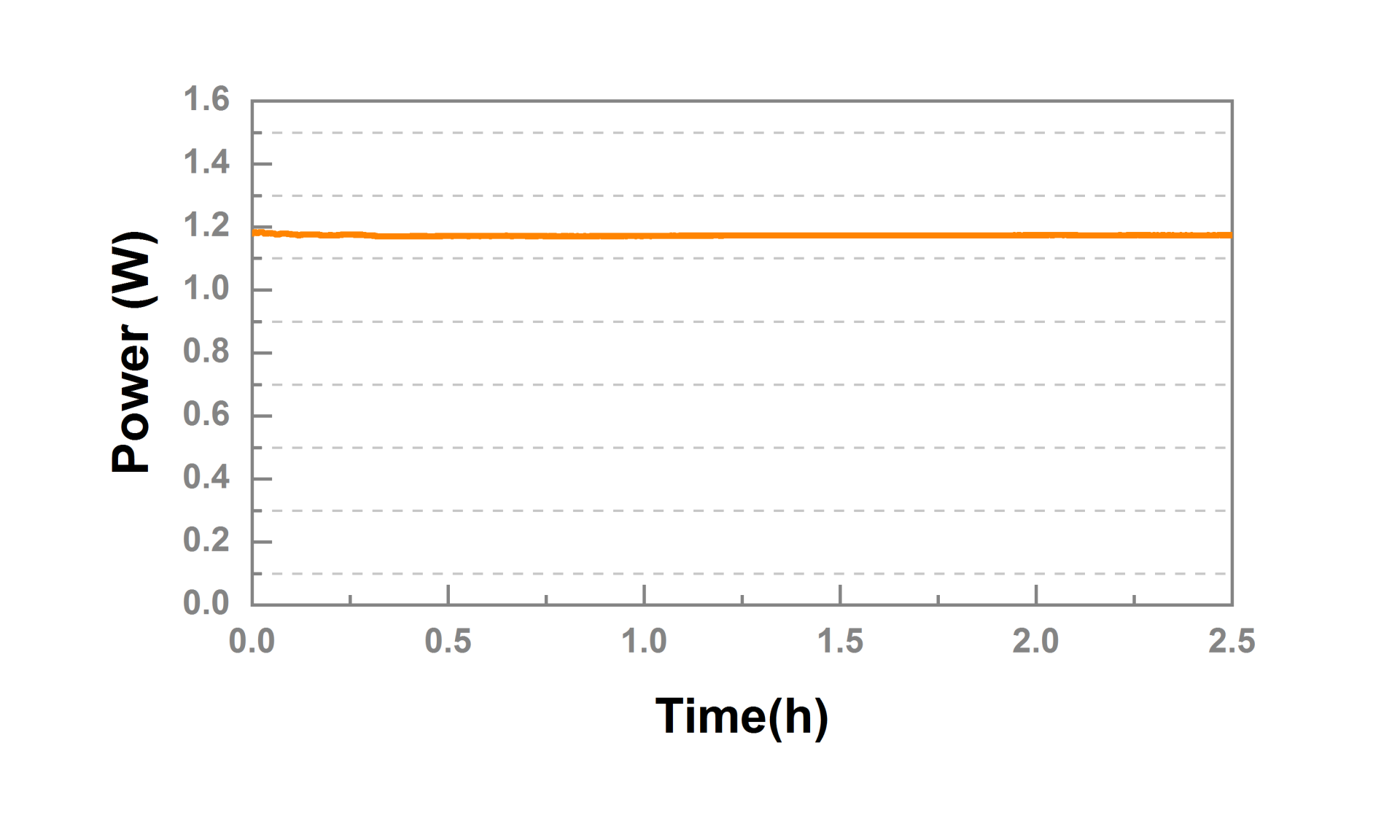

    Average Power Stability

    <1% RMS(12h@25℃)
    Beam Quality

    M2<1.1

    Output Type

     FC/APC Connector(100 mW), Spatial collimation output(1 W)

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    5 kg

    Dimensions

    306×261×111.5 mm

    Cooling

     Air cooling

  • Key Features:

    · Customizable wavelength

    · Very narrow spectral linewidth

    · Single mode fiber delivery

    · Diffration limited beam

    · Turn-key system

    Applications:

    · Laser radar

    · Environmental monitoring

    · Molecular detection

    · Laser frequency conversion

    · Mid-IR Related Research

  • Ultraline1064.pdf
