1550 nm Repetition-rate locked Ultrafast Fiber Laser

型号：
Rainbow 1550 LOCK is our repetition-rate locked version of the standard Rainbow 1550 Pro Ultrafast lasers. It has all the excellent optical characteristics, while at the same time, utilizing an integrated feedback module to stabilize the repetition rates to within a few mHz. The laser is designed to take in a reference frequency from a high-performance signal source between 80-100MHz. It is well suited for applications such as optical frequency comb and asynchronous optical system design.
As the base part is Rainbow 1550 Pro, the LOCK system also shares NPI Lasers' proprietary optical switch packaging technology, and integrates NPI Lasers' unique "Smart-Lock" processes to ensure long-term stability and reliability. The laser is an easy-to-use turn-key system, and can also be computer controlled.
The LOCK system is also available at 1um and 2um range, upon customer request.
Retail price
0.0
元
Market price
0.0
元
Number of views:
1040
Category
Rainbow Pro
Quantity
-
+
Stock:
1
Main Specification
Parameters
Test Data
Applications
Datasheet
Quotation

Laser Parameters

Operating Wavelength

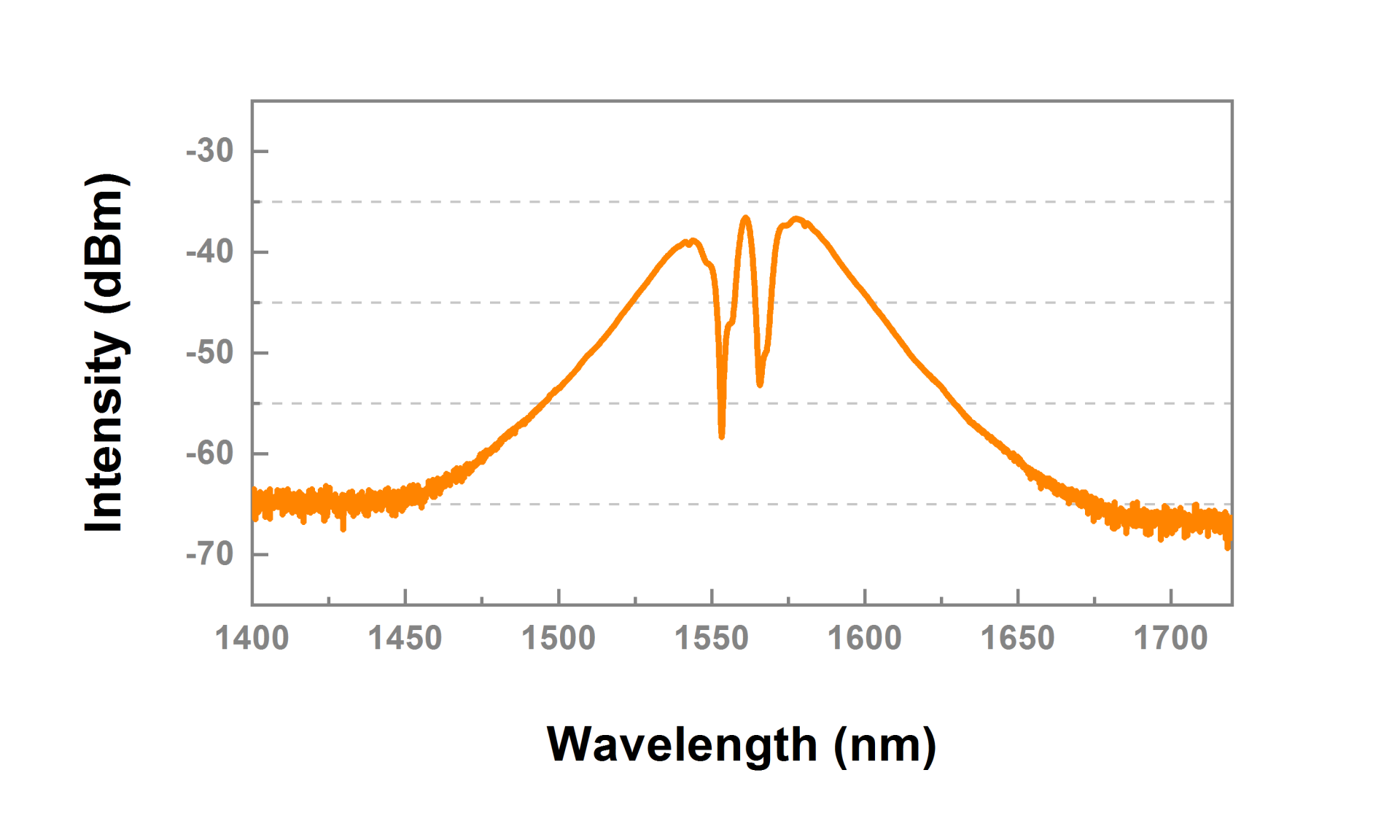

1560±10 nm
Pulse width (FWHM)

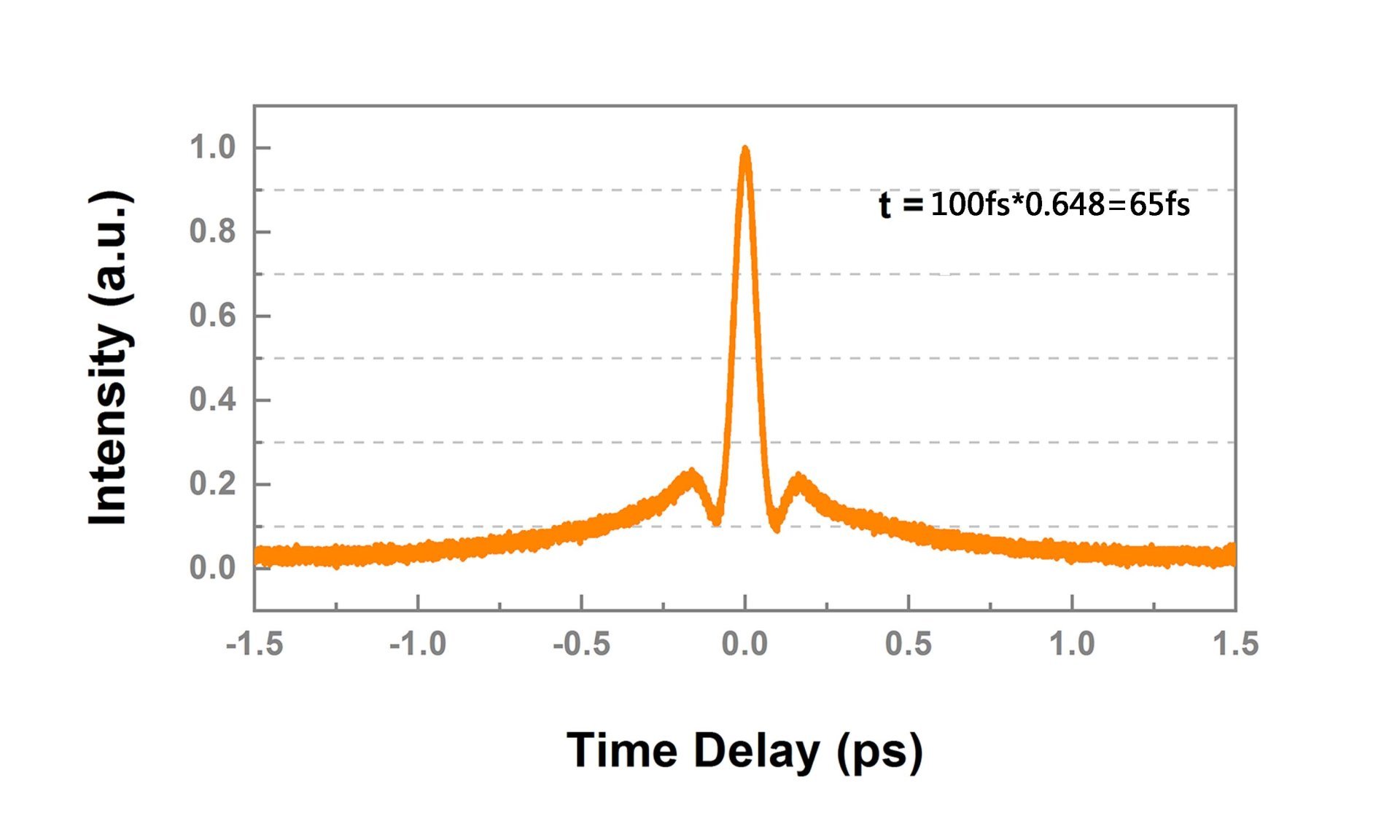

<80 fs

Repetition Rate

80-100 MHz Customizable

Average Power

 >100 mW
Average Power Stability

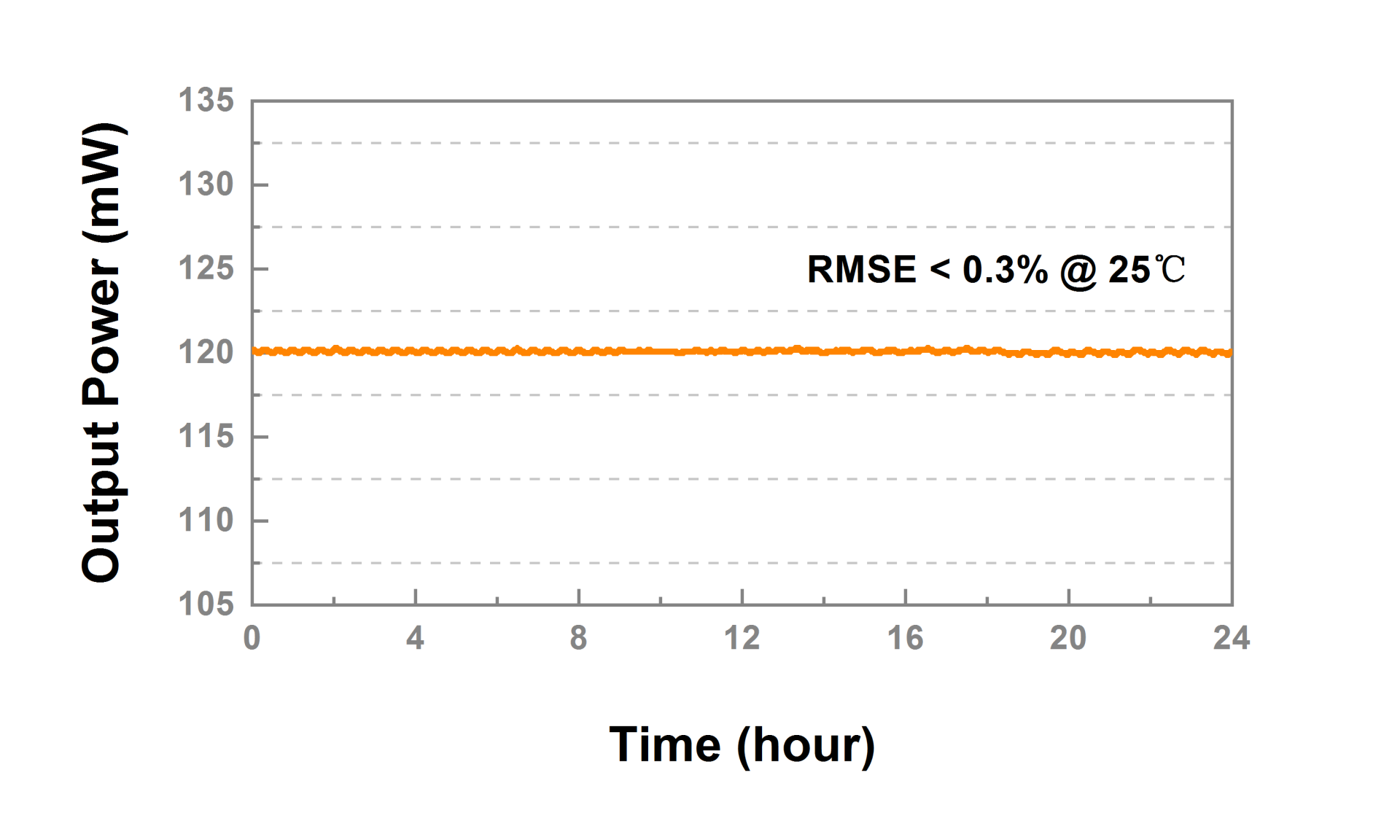

<0.5% RMS(12h@25℃)
Repetition Rate Stability

＜10 mHz 24h@25 ℃ (dependent on reference stability)
Allen variance

＜10-11 @1s (dependent on reference stability)

Output Type

 PM1550 Fiber,FC/APC Connector

Electrical, Environmental and Mechanical Parameters

Supply Voltage

100-240 VDC

Operational Temperature Range

15-35 ℃

Operational Humidity Range

20~80 ( non-condensing )

Weight

17 Kg

Dimensions

387×298×115

Cooling

 Air cooling
We could not find any corresponding parameters, please add them to the properties table





Key Features：

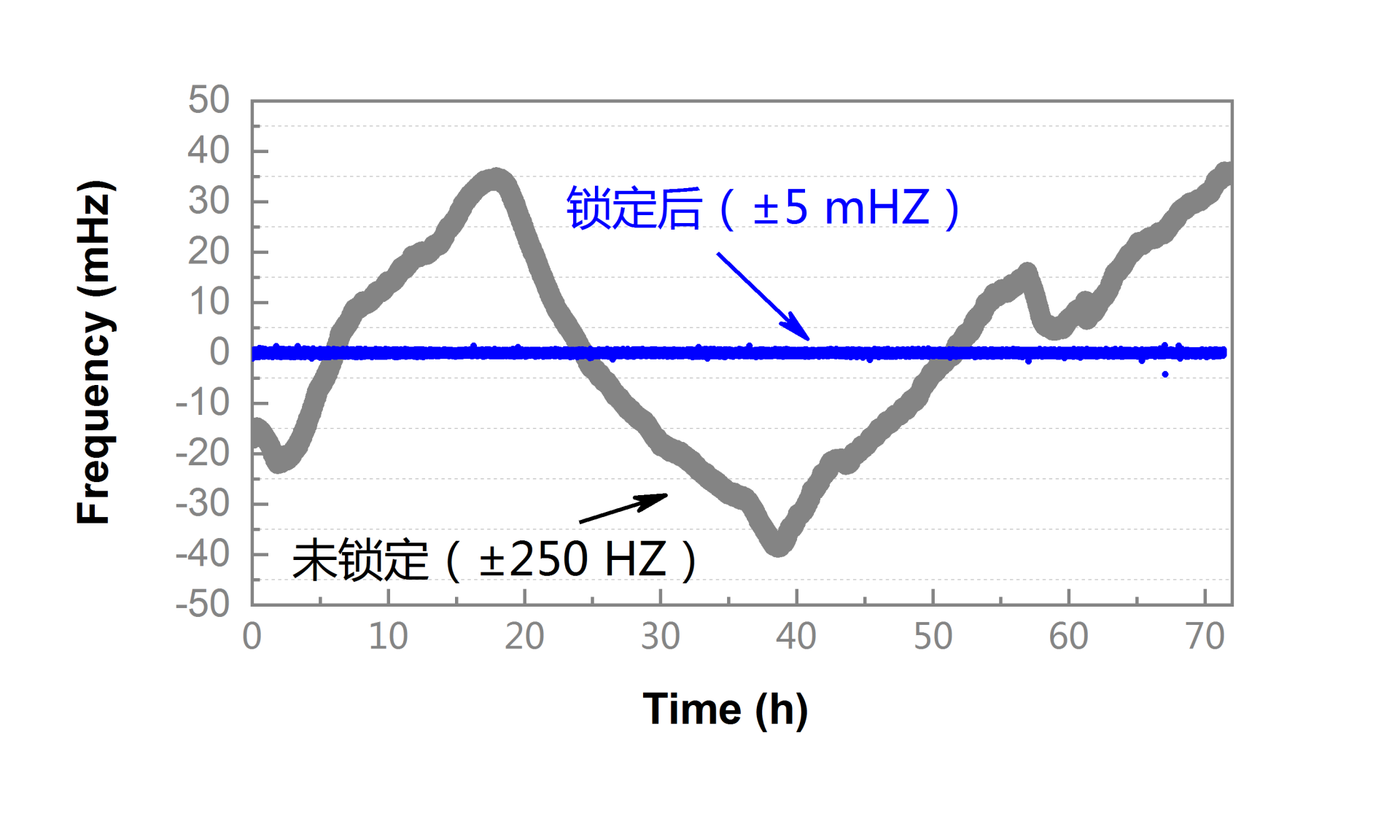

· Low frequency drif (±5 mHz）

· Long locking time

· Customizable wavelength

· High peak power

Applications：

· Optical frequency comb

· Precision optical measurement

· Terahertz generation

· Optical asynchronous sampling



Rainbow 1550 LOCK.pdf

Please contact us for sales requests by email or by phone:

Tel：025-84985077

Email：sales@npilasers.com

You can also use the sales request form below.
