2μm Nanosecond Fiber Laser


Powerwave 2000-ns is a highly versatile 2um nanosecond pulsed fiber laser for scientific and industrial applications. The laser features modular design and undergoes stringent industrial reliability tests. Typical output specifications of the series include a selectable center wavelength in the range of 1900~2000nm, kHz to MHz repetition rate, and a maximum output power of 10W / pulse energy of 10uJ.

Powerwave 2000-ns is an excellent choice for pumping Mid-IR supercontinuum, and can be used in emerging industrial processings.

product details

  • Detail

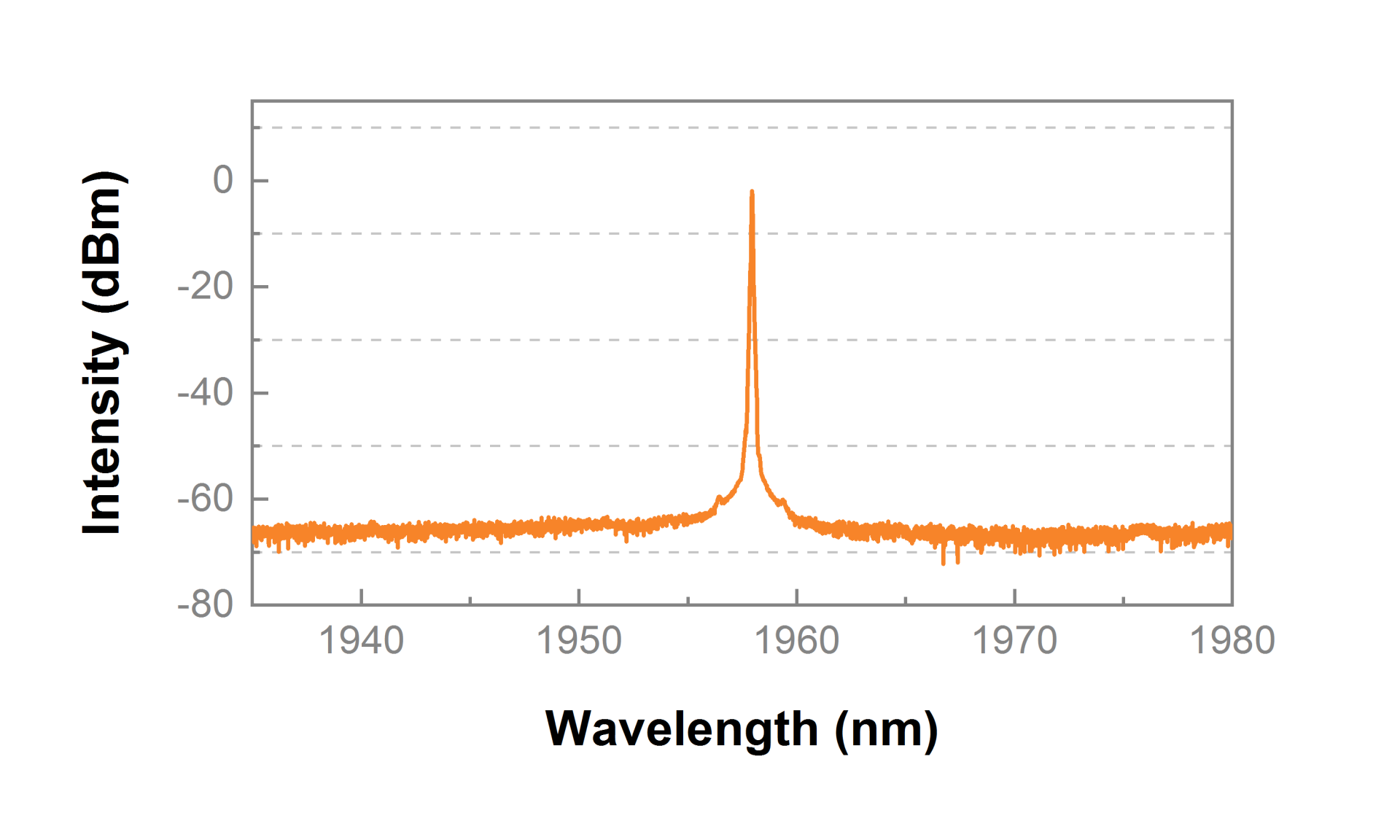

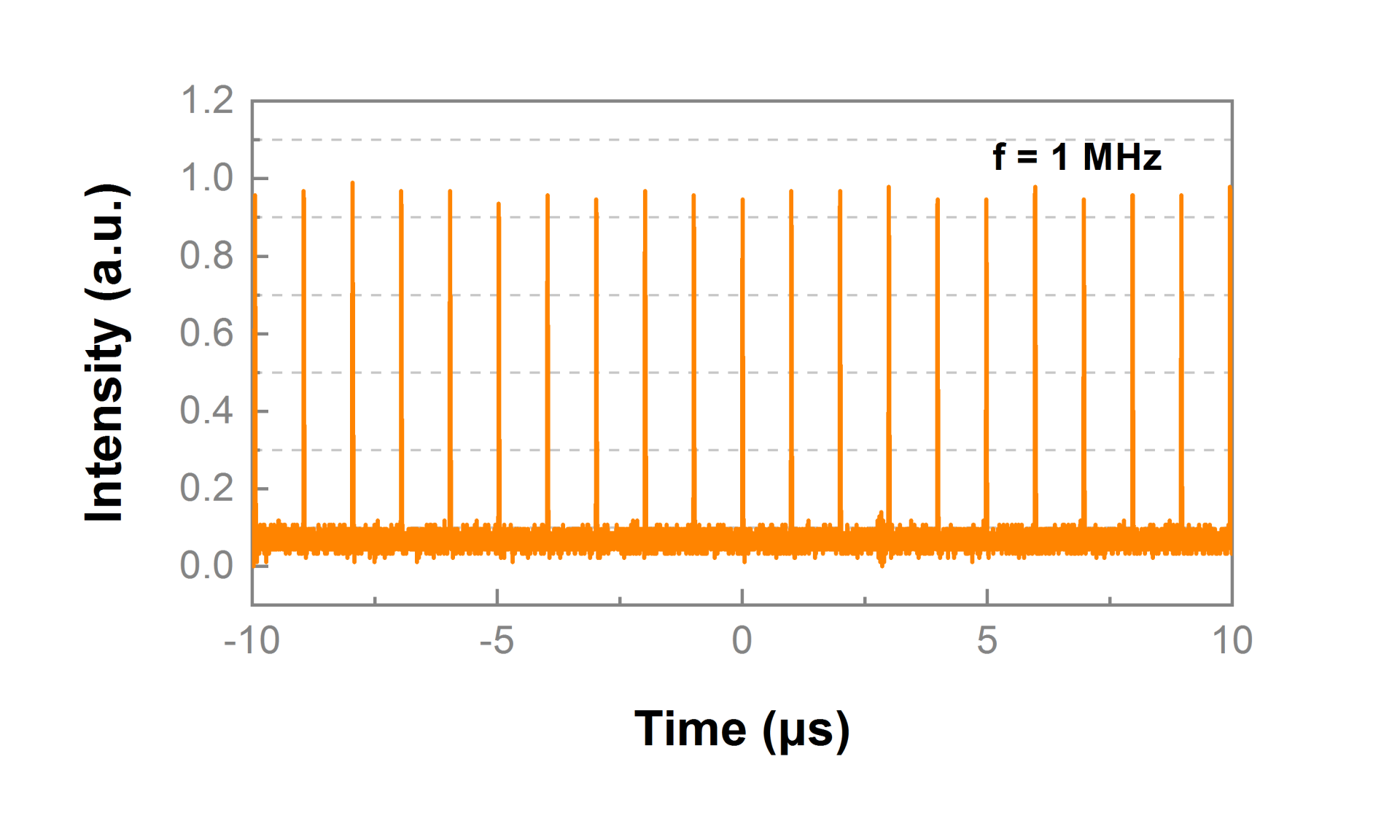

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 2μm Nanosecond Fiber Laser
    • Commodity ID: 1041147207001923584

    Powerwave 2000-ns is a highly versatile 2um nanosecond pulsed fiber laser for scientific and industrial applications. The laser features modular design and undergoes stringent industrial reliability tests. Typical output specifications of the series include a selectable center wavelength in the range of 1900~2000nm, kHz to MHz repetition rate, and a maximum output power of 10W / pulse energy of 10uJ.</br></br> Powerwave 2000-ns is an excellent choice for pumping Mid-IR supercontinuum, and can be used in emerging industrial processings.

    Laser Parameters

    Operating Wavelength

    1900-2000 nm

    Pulse Width (FWHM)

    >10 ns

    Repetition Rate

    0.5-2 MHz

    Average Power

    10 W

    Average Power Stability

    <0.5% RMS(12h@25℃)
    Pulse Energy

    >10 μJ

    Beam Quality

    M2<1.2

    Output Type

     Fiber collimator output

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    20 Kg

    Dimensions

    633×483×141

    Cooling

     Air cooling,  Water cooling

  •

  • Key Features:

    · Customizable wavelength

    · Single mode

    · Diffration limited beam

    · Easy operation and maintenance-free

    · Turn-key system

    Applications:

    · HBr gas laser pumping source

    · Cr2+ doped laser pumping source

    · Supercontinuum
