1030-1060 nm High Power Ultrafast Laser


Rainbow 10X0 HP is our new generation of “wavelength versatile” high power fiber laser that features unparalleled output parameters. The laser adopts an innovative new cavity design that allows setting of the central wavelength within 1030-1060 nm. As with other NPI mode-locked products, the Rainbow 10X0 HP laser is produced using our proprietary ‘Smart-Lock’ processes to ensure long-term stability and reliability. It has an average output power exceeding 5-10 W and a pulse width under 150 fs. A frequency-doubling module can be used to enable W-level 532nm (Green) femtosecond output.

Rainbow 10X0 HP is well suited for applications such as OPO/OPA pumping, fluorescence microscopy, two-photon polymerization, seeding high-power amplifiers and other advanced photonic experiments.

product details

  • Detail

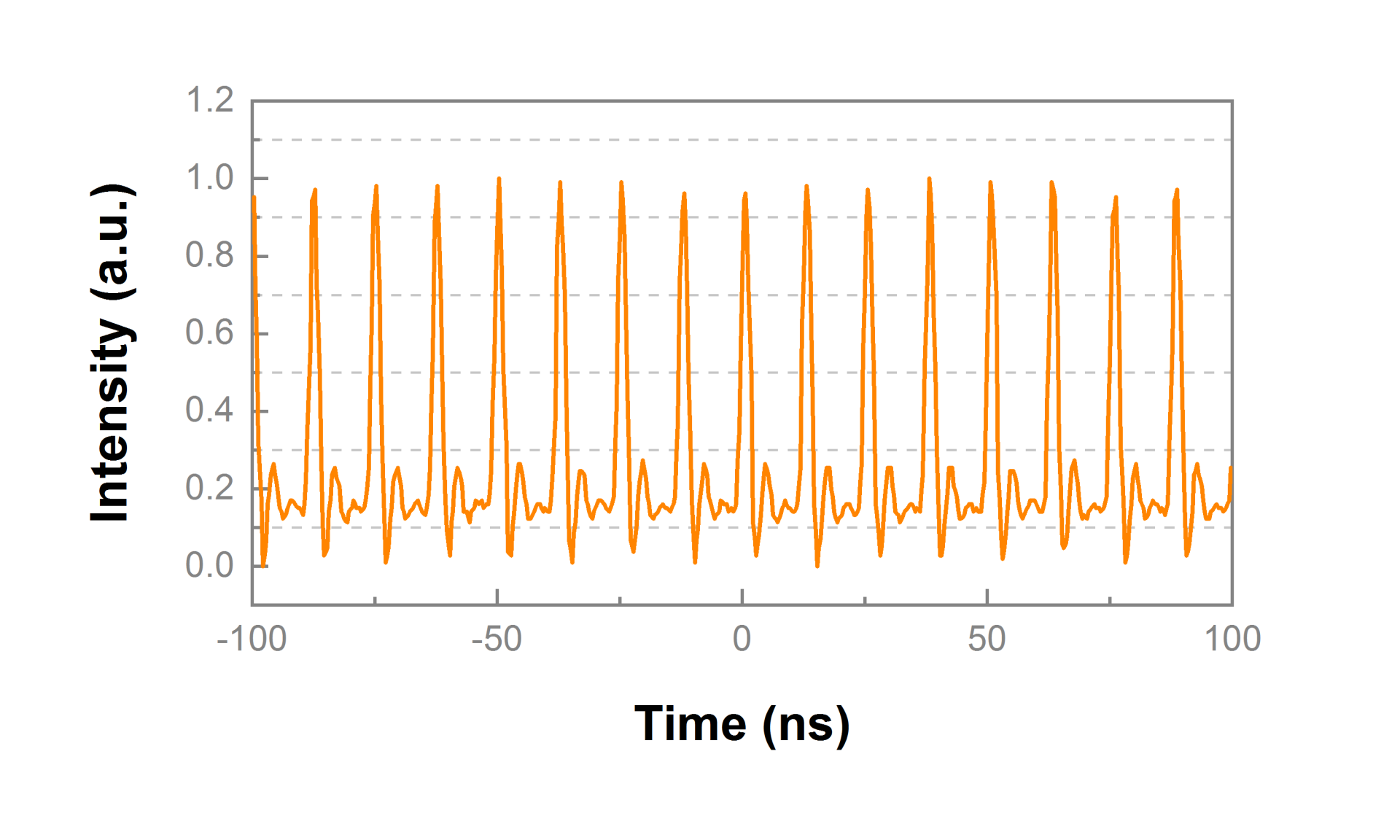

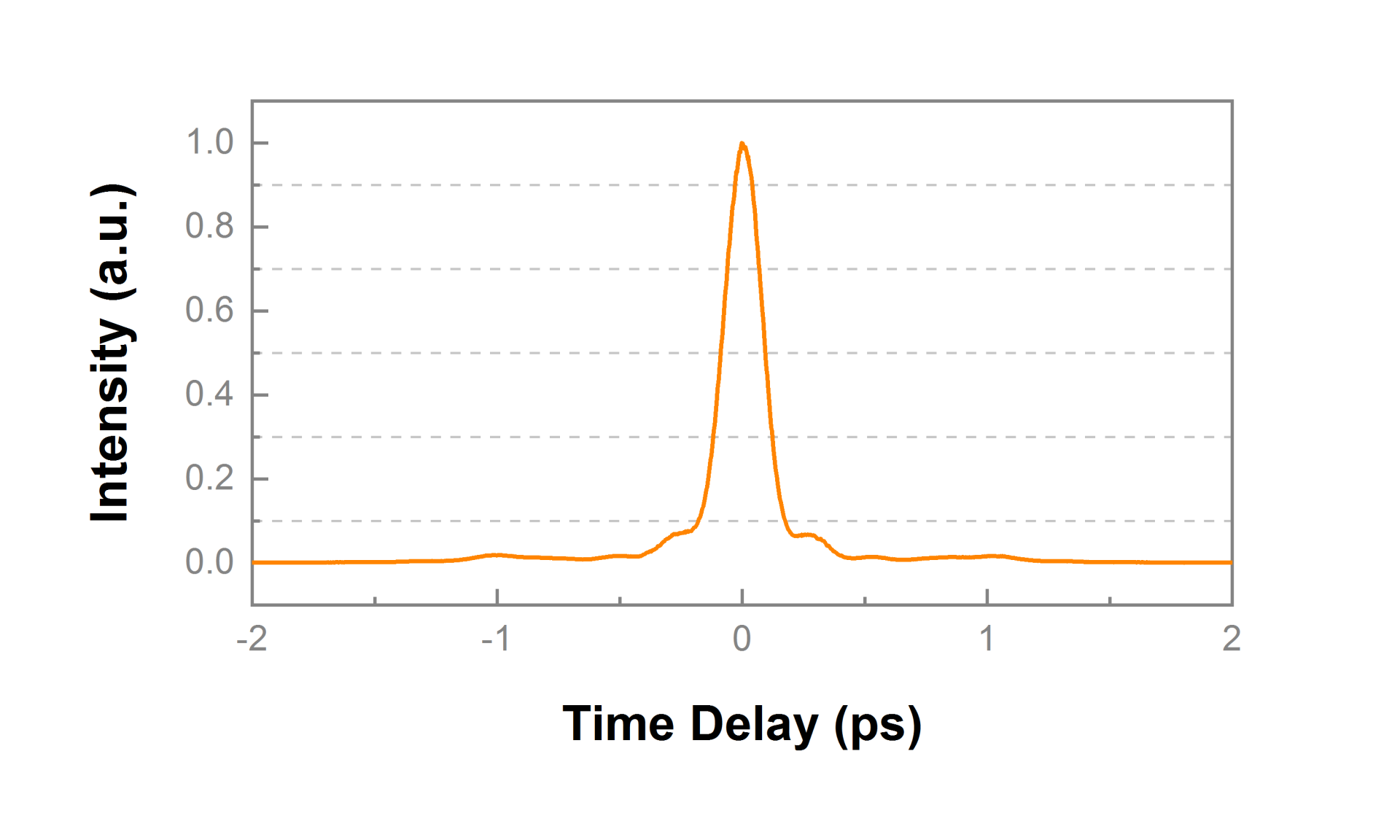

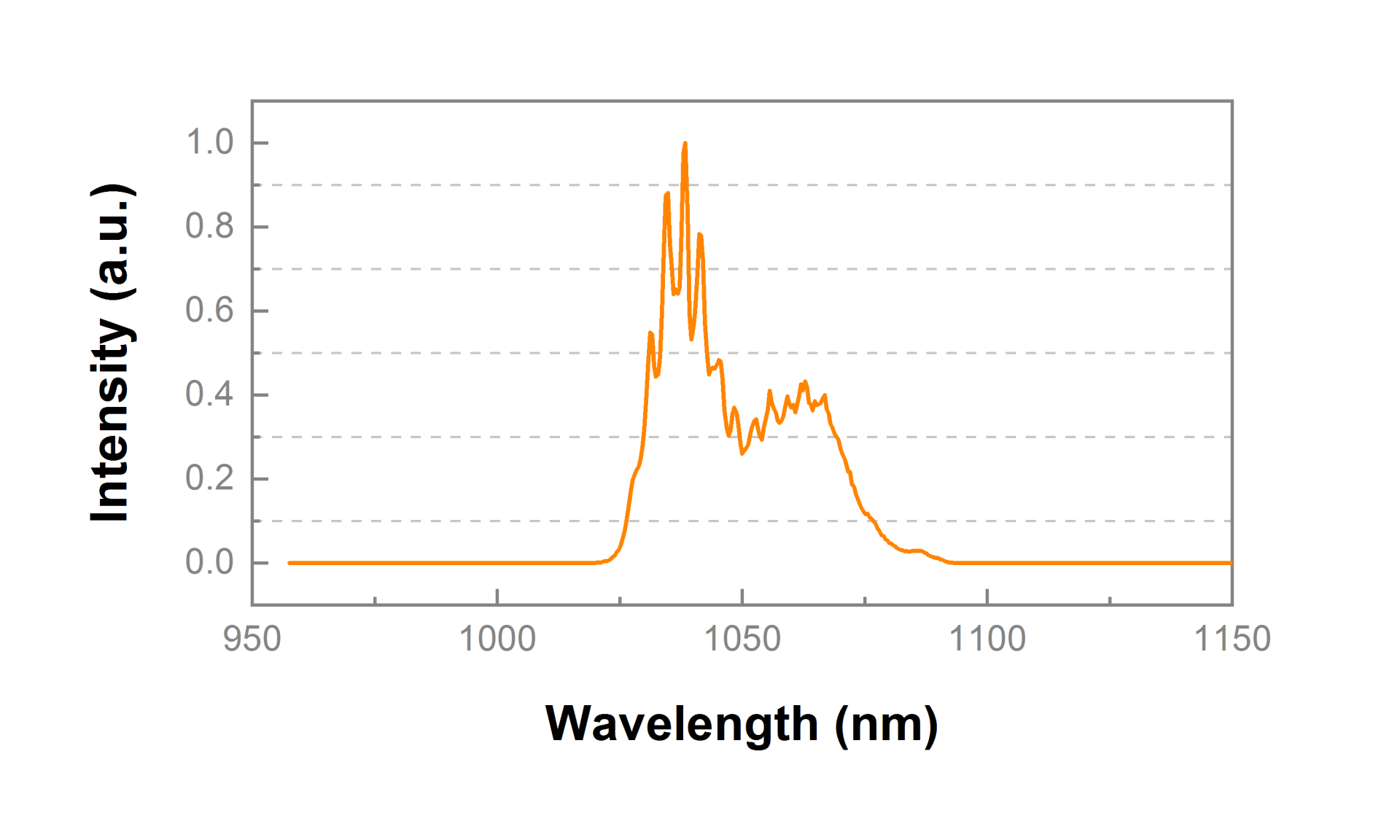

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1030-1060 nm High Power Ultrafast Laser
    • Commodity ID: 1041147373863919616

    Rainbow 10X0 HP is our new generation of “wavelength versatile” high power fiber laser that features unparalleled output parameters. The laser adopts an innovative new cavity design that allows setting of the central wavelength within 1030-1060 nm. As with other NPI mode-locked products, the Rainbow 10X0 HP laser is produced using our proprietary ‘Smart-Lock’ processes to ensure long-term stability and reliability. It has an average output power exceeding 5-10 W and a pulse width under 150 fs. A frequency-doubling module can be used to enable W-level 532nm (Green) femtosecond output.</br></br> Rainbow 10X0 HP is well suited for applications such as OPO/OPA pumping, fluorescence microscopy, two-photon polymerization, seeding high-power amplifiers and other advanced photonic experiments.

    Laser Parameters

    Operating Wavelength

    1030/1040/1050/1060 nm

    Pulse width (FWHM)

    <150 fs,<200 fs(for 8 W)

    Repetition Rate

    80 MHz

    Average Power

    5-10 W

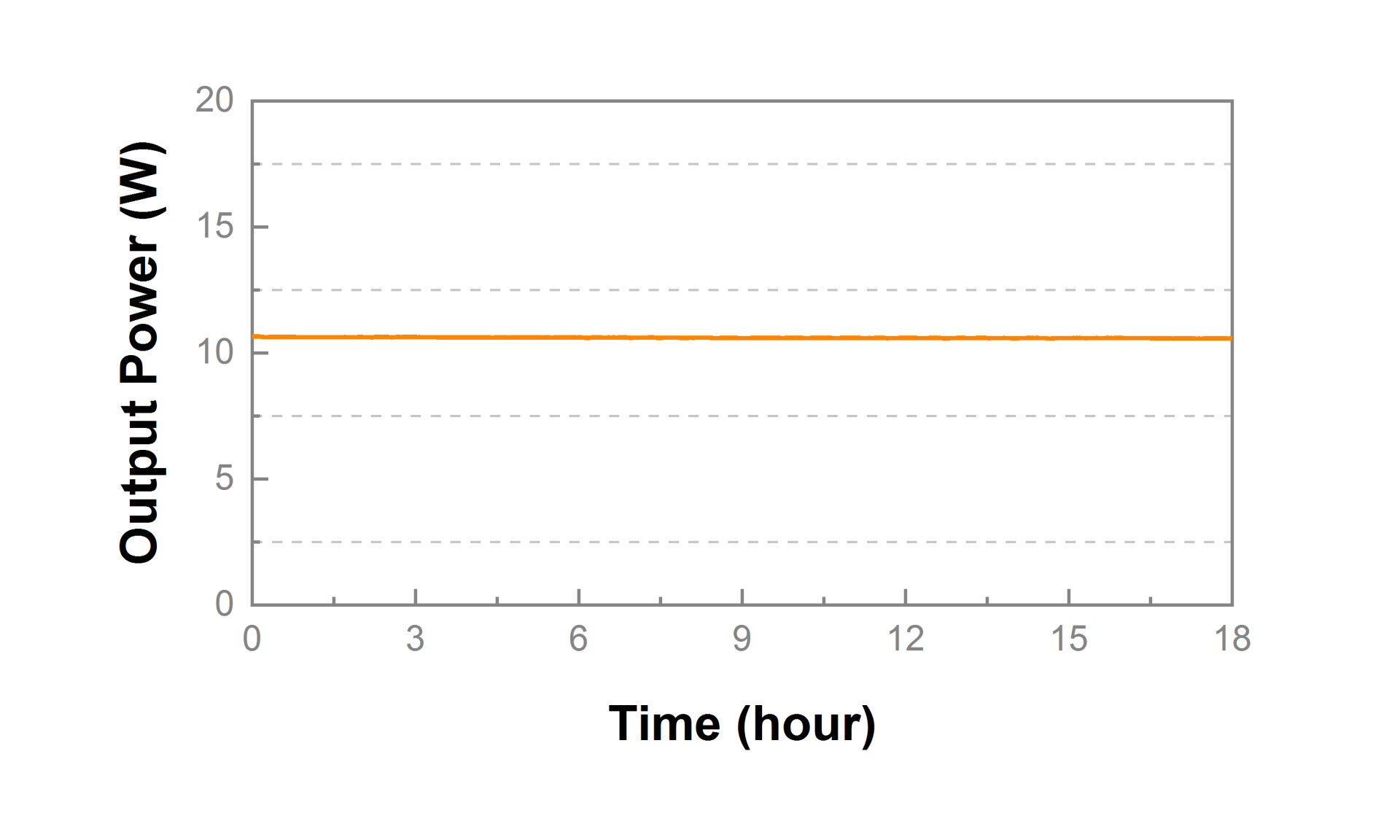

    Aerage Power Stability

    <0.5% RMS(12h@25℃)

    Pulse Energy

    >80 nJ

    Polarization Extinction Ratio

    >20 dB

    Output Type

    Spatially collimated output

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    20 kg

    Dimensions

    446×300×134 mm, 445×383×97 mm

    Cooling

     Air cooling

  • Key Features:

    · Long-term stable operation

    · High pulse energy

    · Reliable mode-locking

    · All-PM solution

    Applications:

    · Harmonic imaging

    · Two-photon polymerization

    · Two-photon fluorescence imaging

    · High precision laser ranging
