OPPO-SC Multichannel Broadband Tunable Ultrafast Fiber Laser


OPPO is a series of wideband tuneable ultrafast fiber lasers based on NPI’s advanced nonlinear photonic technologies. It enables the output of either broad supercontinuum or tunable wavelengths across visible to NIR. In addition to a tunable port, the product may also include multiple fixed-wavelength channels (i.e. 400nm/800nm/1560nm), making it well suited for building multi-purpose spectroscopy/microscopy systems that require flexible reconfiguration.

OPPO-SC is a wideband femtosecond supercontinuum light source that spans 1000-2400 nm. Different with conventional supercontinuum light sources, OPPO-SC is pumped by a highly stable femtosecond fiber laser. The product is based completely on an all-PM architecture, ensuring excellent stability, mode-quality and cost/performance ratio.

OPPO-SC can be used with a tunable filter to enable wavelength tunability for a range of applications including multi-photon microscopy, pump-probe/fluorescence lifetime microscopy as well as OCT and other ultrafast characterizations. The compactness and maintenance-free features make it an ideal substitute for conventional OPO/OPA systems.

product details

  • Detail

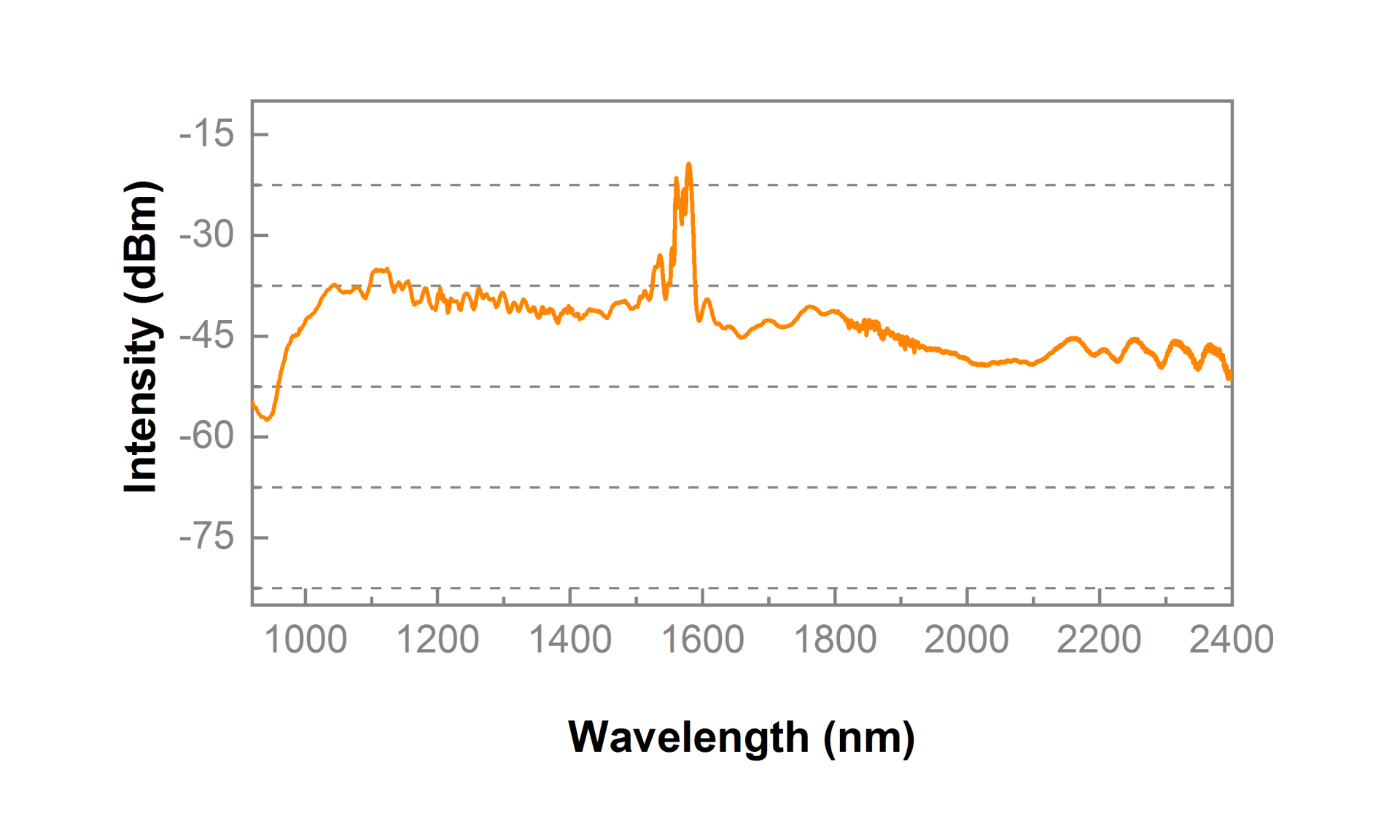

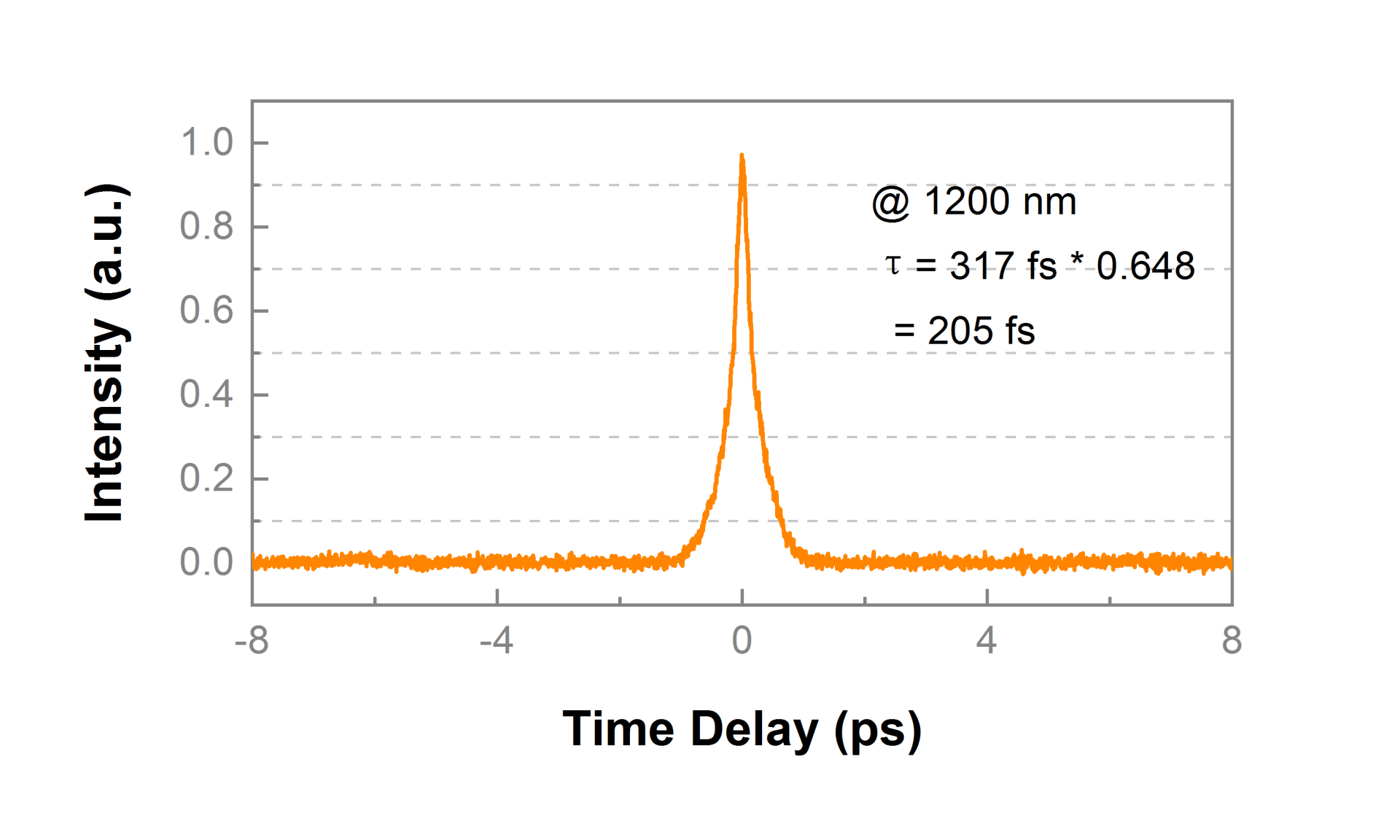

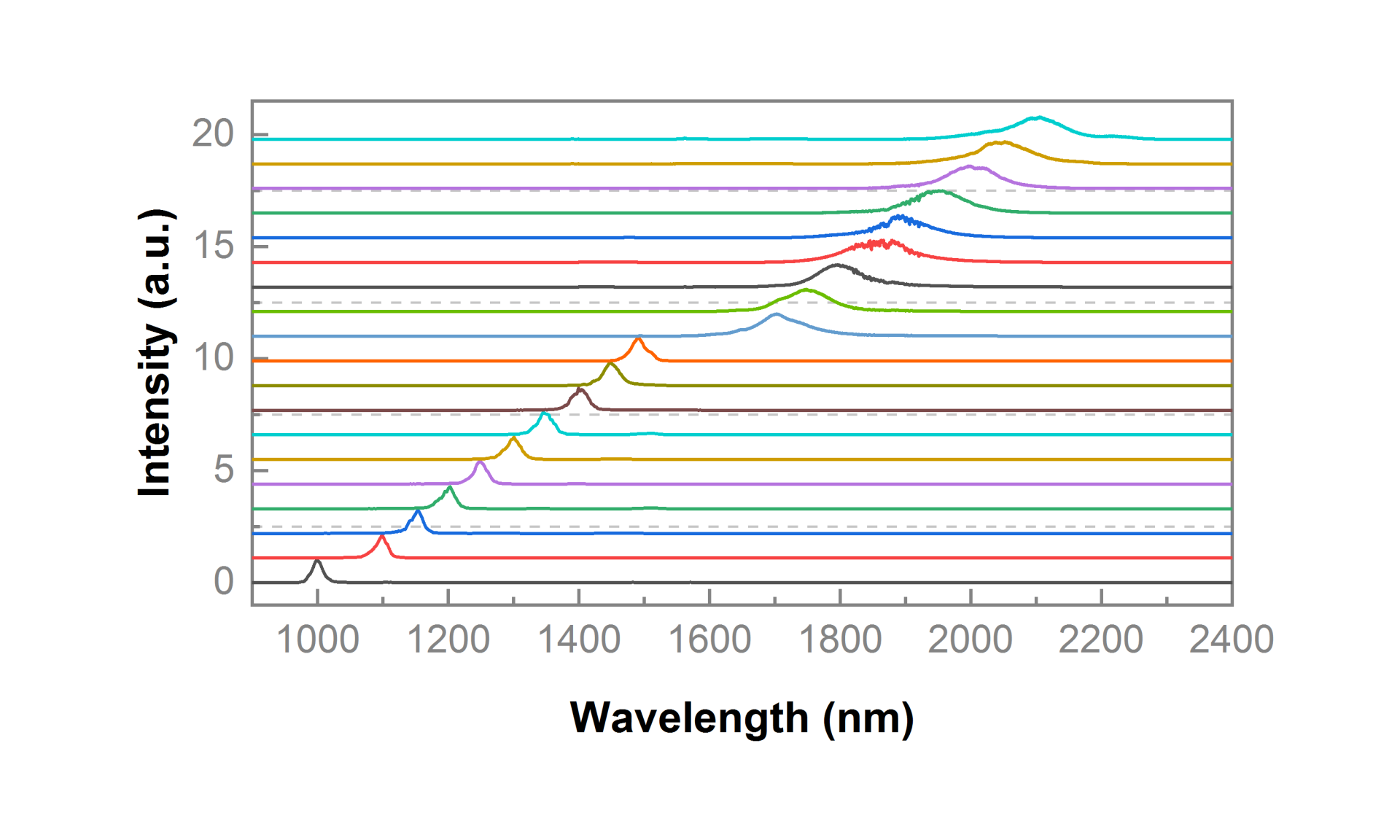

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: OPPO-SC Multichannel Broadband Tunable Ultrafast Fiber Laser
    • Commodity ID: 1041147424321396736

    OPPO is a series of wideband tuneable ultrafast fiber lasers based on NPI’s advanced nonlinear photonic technologies. It enables the output of either broad supercontinuum or tunable wavelengths across visible to NIR. In addition to a tunable port, the product may also include multiple fixed-wavelength channels (i.e. 400nm/800nm/1560nm), making it well suited for building multi-purpose spectroscopy/microscopy systems that require flexible reconfiguration. </br></br> OPPO-SC is a wideband femtosecond supercontinuum light source that spans 1000-2400 nm. Different with conventional supercontinuum light sources, OPPO-SC is pumped by a highly stable femtosecond fiber laser. The product is based completely on an all-PM architecture, ensuring excellent stability, mode-quality and cost/performance ratio. </br></br> OPPO-SC can be used with a tunable filter to enable wavelength tunability for a range of applications including multi-photon microscopy, pump-probe/fluorescence lifetime microscopy as well as OCT and other ultrafast characterizations. The compactness and maintenance-free features make it an ideal substitute for conventional OPO/OPA systems.

    Laser Parameters

    Operating Wavelength

    1000-2400 nm

    Pulse width (FWHM)

    <300 fs

    Repetition Rate

    80 MHz

    Average Power

    1 W
    Aerage Power Stability

    <0.5% RMS(12h@25℃)

    Beam Quality

    TEM00, M²<1.2

    Polarization Extinction Ratio

    >20 dB

    Output Type

    Spatially collimated output

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    17 Kg

    Dimensions

    447×422×138, 290×194×98.5

    Cooling

     Air cooling

  •

  • Key Features:

    · Multi-channel, wavelength tunable

    · High peak power

    · Linearly polarization

    · Diffration limited beam

    · Turn-key system

    Applications:

    · Medium infrared spectrum

    · Pump-probe

    · Medium infrared femtosecond seed

    · Nonlinear optics

    · Silicon photonics
