2000 nm High Power Ultrafast Laser

Rainbow 2000 HP represents the long-wavelength capabilities of NPI’s Watt-level femtosecond oscillators. It utilizes a unique dispersion engineering technology to ensure good balance between pulse duration and spectral width. The standard product has a center wavelength of 1970 ±10nm, a pulse width of <300 fs, repetition rate of 80MHz, and an average output power of >1 W. As with our other ultrafast products, Rainbow 2000 HP has flexible parameters upon user requests.

Rainbow 2000 HP is well-suited for applications such as Mid-IR frequency conversion, Nonlinear optics and Silicon photonics. It can meet a broad range of R&D requirements of the scientific community.

product details

  • Detail

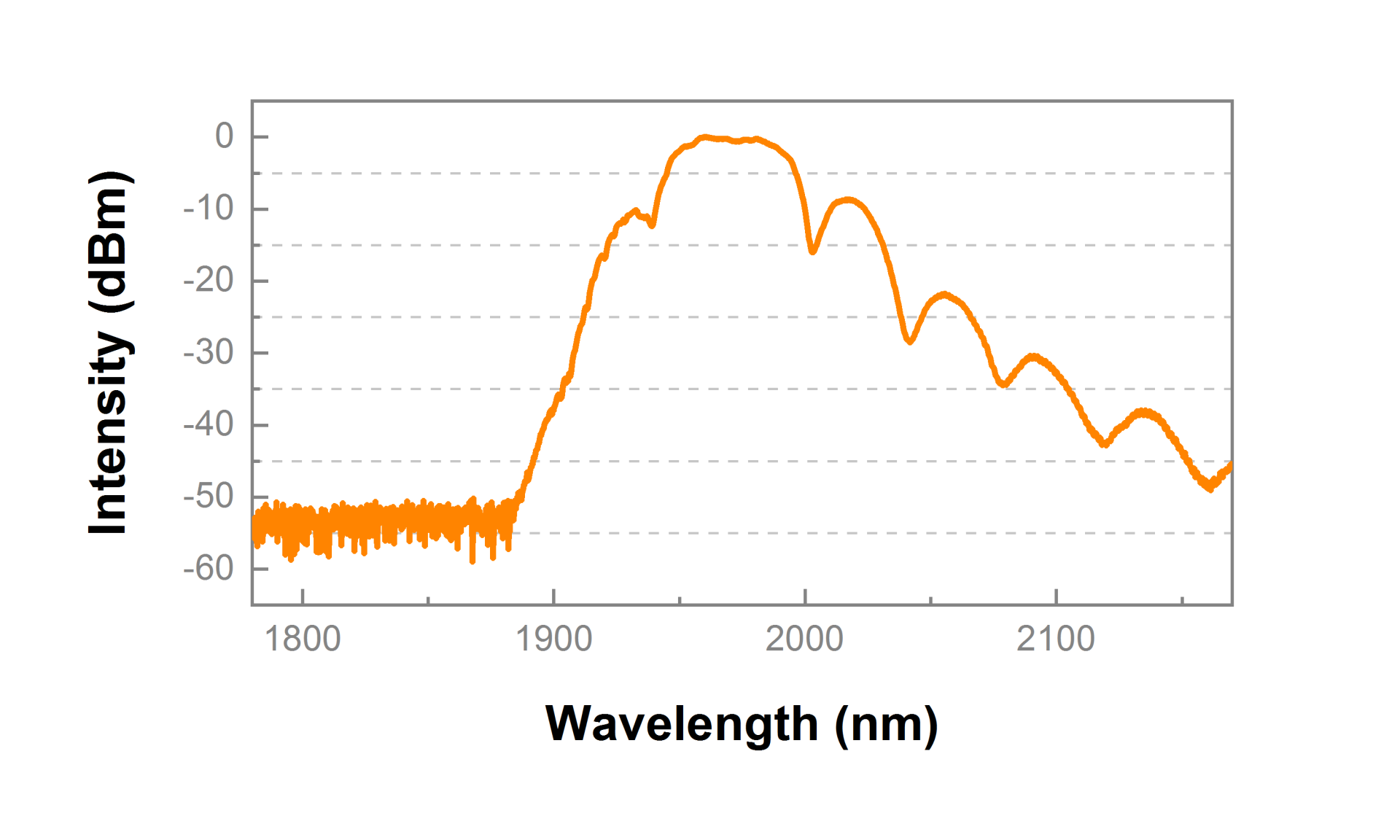

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 2000 nm High Power Ultrafast Laser
    • Commodity ID: 1041147467044577280

    Rainbow 2000 HP represents the long-wavelength capabilities of NPI’s Watt-level femtosecond oscillators. It utilizes a unique dispersion engineering technology to ensure good balance between pulse duration and spectral width. The standard product has a center wavelength of 1970 ±10nm, a pulse width of <300 fs, repetition rate of 80MHz, and an average output power of >1 W. As with our other ultrafast products, Rainbow 2000 HP has flexible parameters upon user requests.</br></br> Rainbow 2000 HP is well-suited for applications such as Mid-IR frequency conversion, Nonlinear optics and Silicon photonics. It can meet a broad range of R&D requirements of the scientific community.

    Laser Parameters

    Operating Wavelength

    1970±10 nm

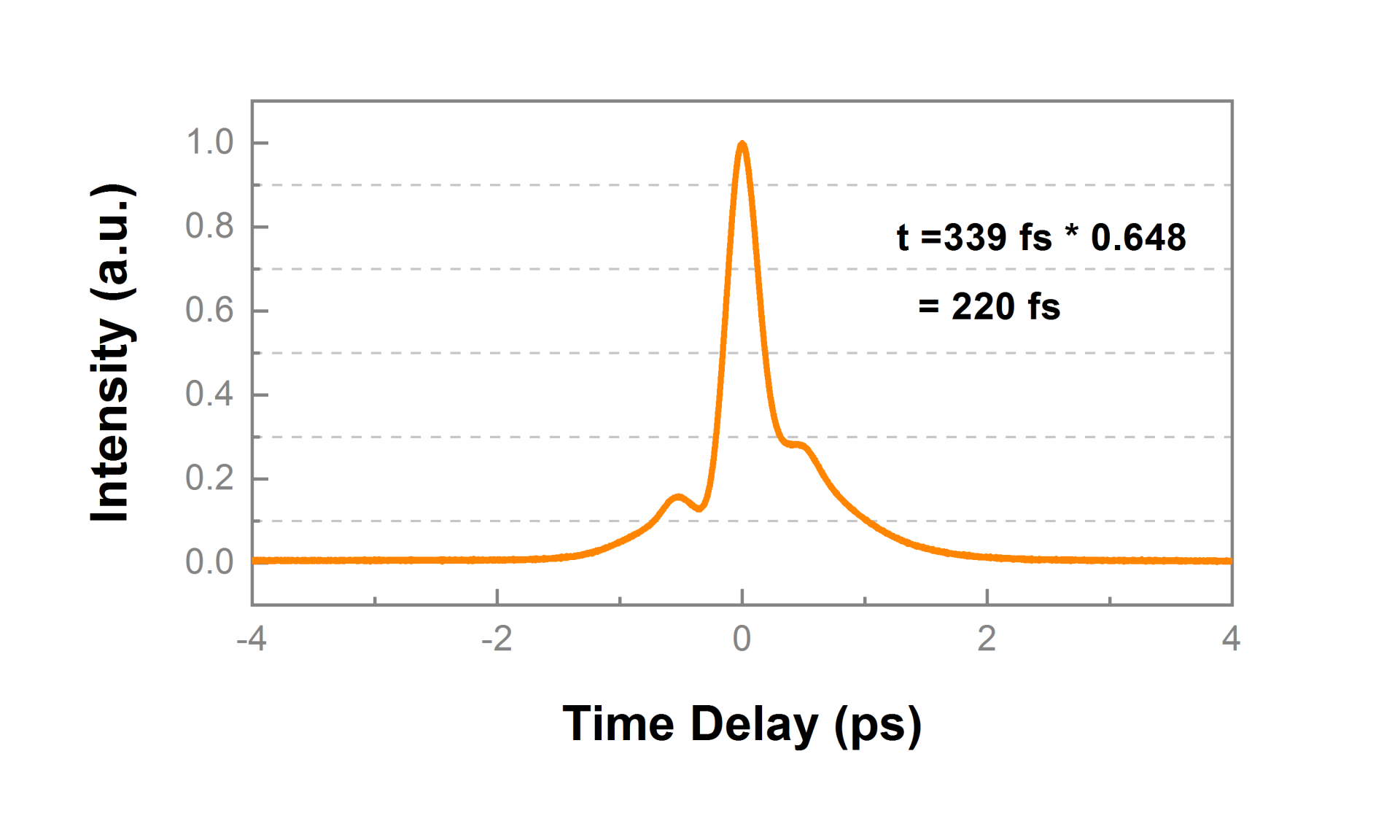

    Pulse width (FWHM)

    <300 fs（Typical <250 fs）

    Repetition Rate

    80±1 MHz

    Average Power

    		 >1 W

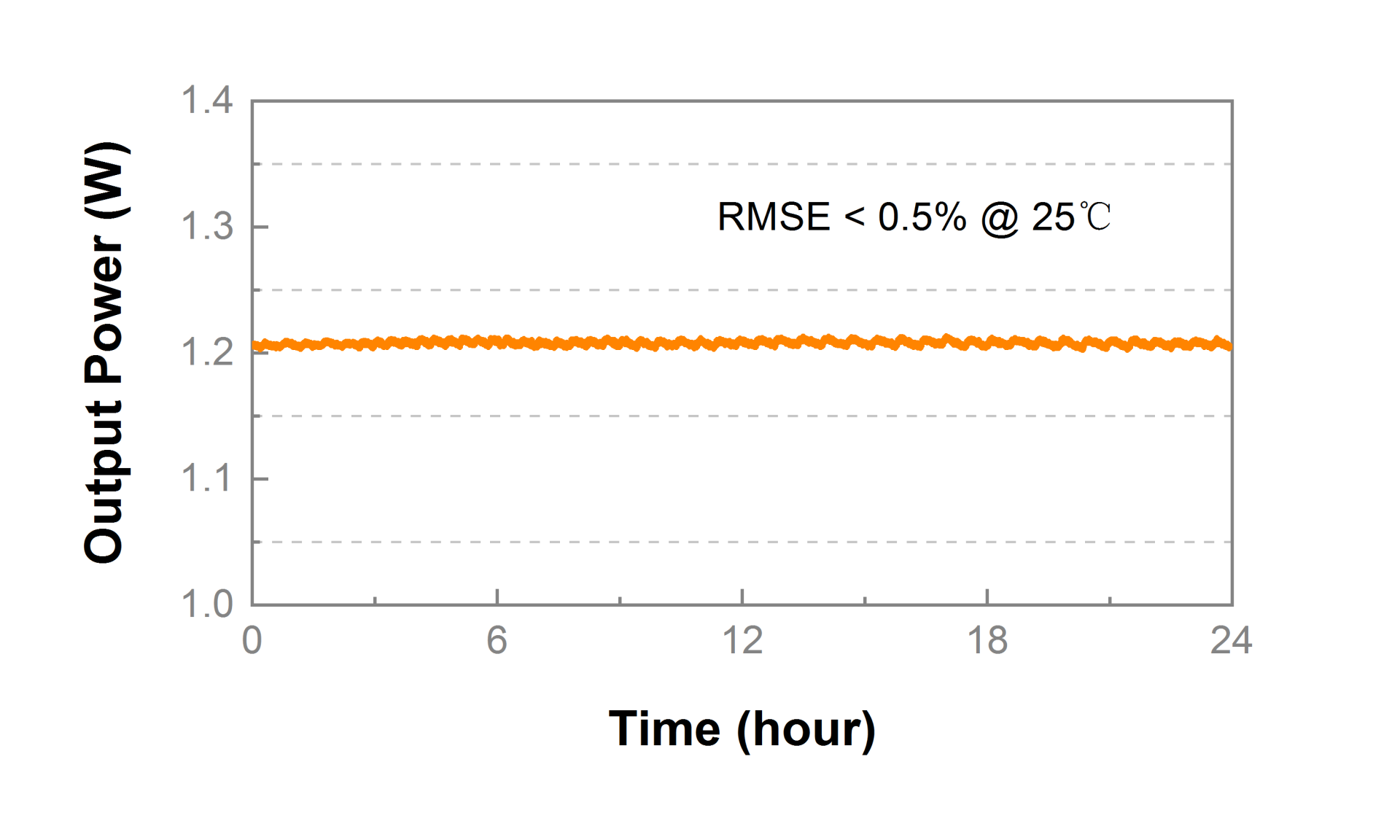

    Aerage Power Stability

    <0.5% RMS(12h@25℃)

    Pulse Energy

    >18 nJ
    Polarization Extinction Ratio

    >20 dB

    Output Type

    		 Spatially collimated output

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    20 Kg

    Dimensions

    445×300×134, 380×445×94

    Cooling

     Air cooling

  • Key Features：

    · Long-term stable operation

    · High pulse energy

    · Reliable mode-locking

    · All-PM solution

    Applications：

    · Mid-IR Frequency Conversion

    · Nonlinear optics

    · Mid-IR spectroscopy

    · Silicon photonics



  • Rainbow 2000 HP.pdf
