532 nm Ultrafast Fiber Laser


Rainbow 532 OEM is a high-performance 532nm (Green) picosecond fiber laser. It is comprised of our best-selling Rainbow 1064 OEM and a compact frequency-doubling module to generate green laser beam with excellent power and transverse mode stability. The laser is highly compact and well-suited for multi-purpose spectroscopy systems.

Rainbow 532 OEM has flexible parameters upon user requests. The laser operates at a wavelength of 532±10nm, and has pulse width of ≤15ps, repetition rate range between 20-50MHz and an average power >20 mW. A fiber-pigtailed version is available as an option.

Rainbow 532 OEM is ideal for materials research such as TCSPC, SHG/THG imaging, and other nonlinear optical applications. It can meet a broad range of R&D requirements of the photonics and materials research community.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 532 nm Ultrafast Fiber Laser
    • Commodity ID: 1041147516520587264

    Rainbow 532 OEM is a high-performance 532nm (Green) picosecond fiber laser. It is comprised of our best-selling Rainbow 1064 OEM and a compact frequency-doubling module to generate green laser beam with excellent power and transverse mode stability. The laser is highly compact and well-suited for multi-purpose spectroscopy systems.</br></br> Rainbow 532 OEM has flexible parameters upon user requests. The laser operates at a wavelength of 532±10nm, and has pulse width of ≤15ps, repetition rate range between 20-50MHz and an average power >20 mW. A fiber-pigtailed version is available as an option.</br></br> Rainbow 532 OEM is ideal for materials research such as TCSPC, SHG/THG imaging, and other nonlinear optical applications. It can meet a broad range of R&D requirements of the photonics and materials research community.

    Laser Parameters

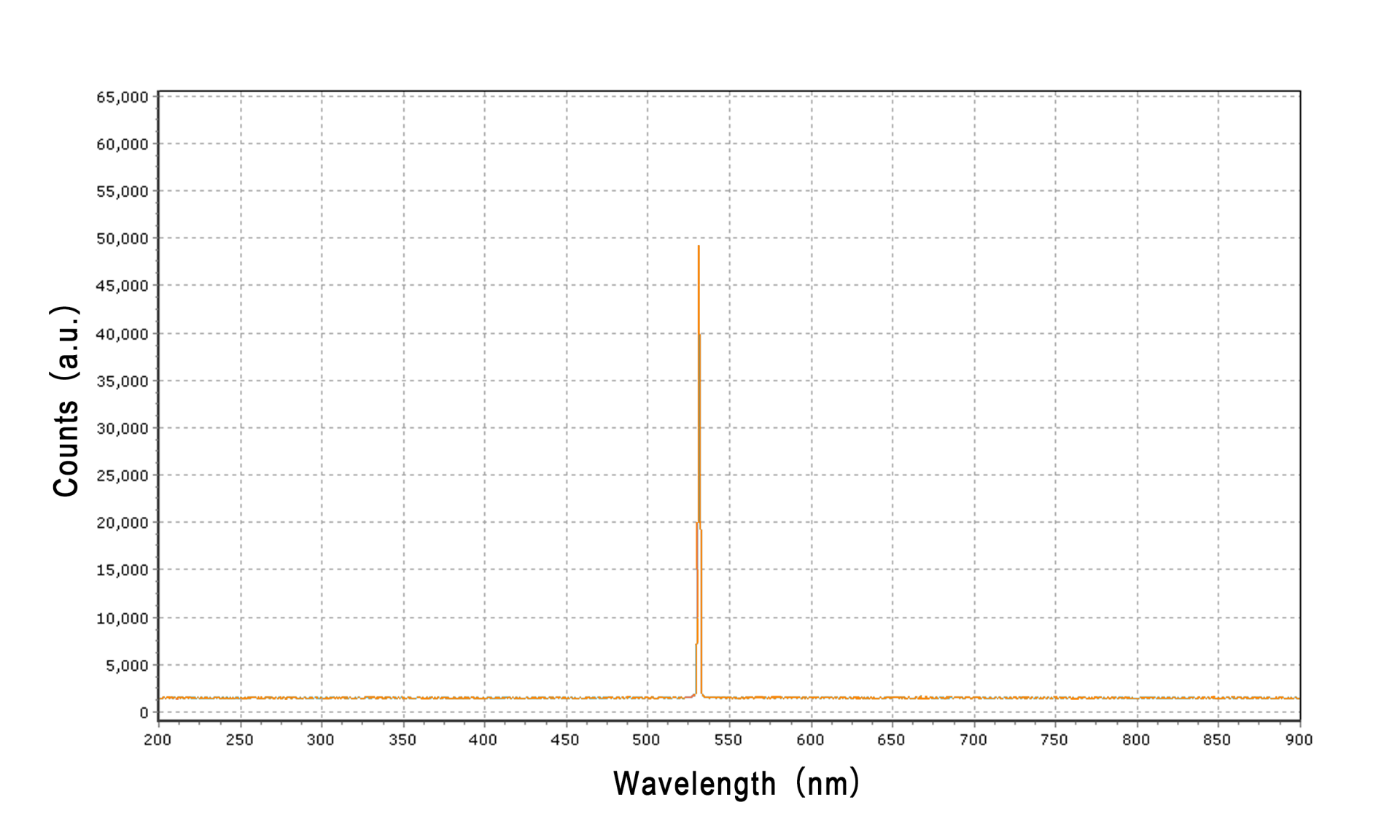

    Operating Wavelength

    532±10 nm

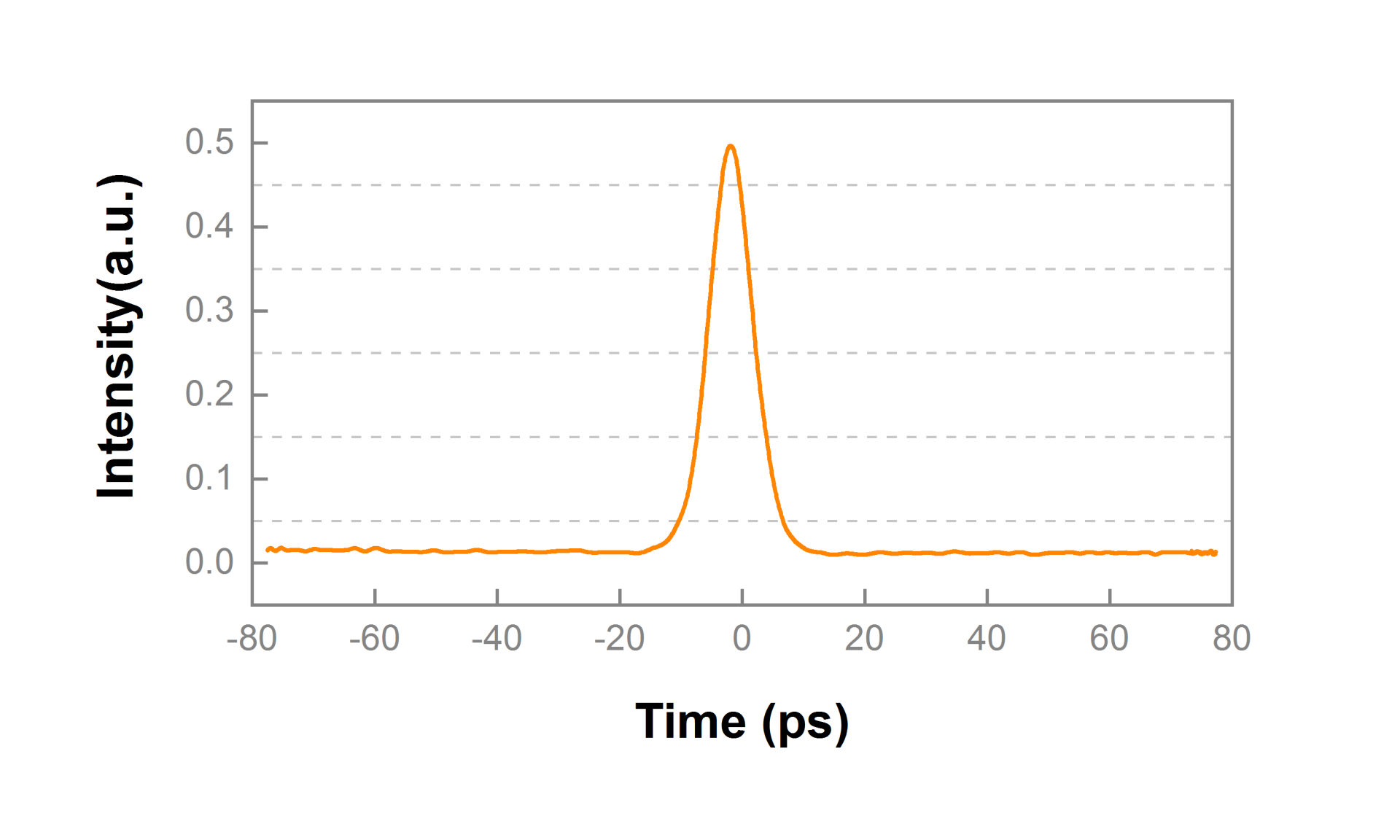

    Pulse width (FWHM)

    <15 ps

    Repetition Rate

    20-50 MHz

    Average Power

    >20 mW

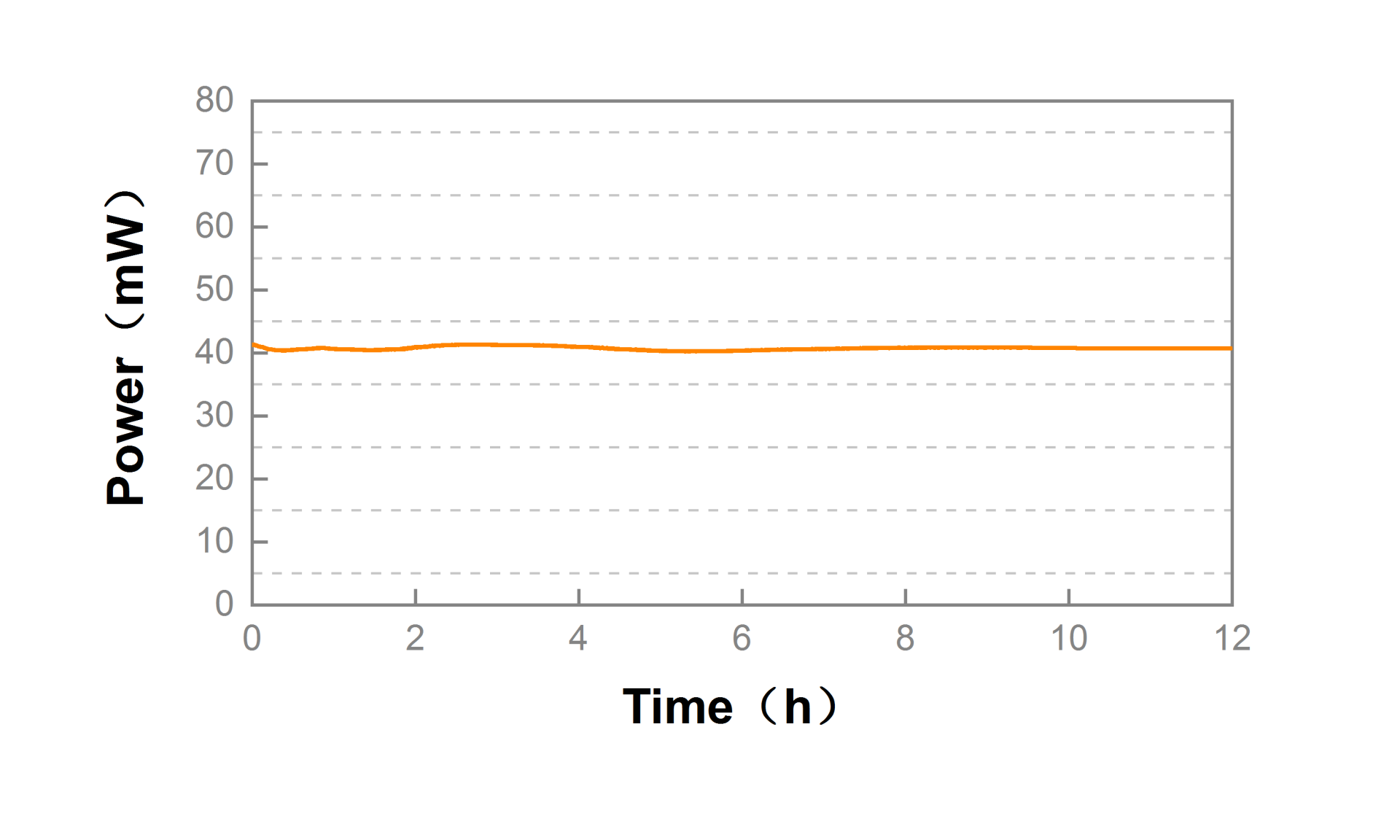

    Average Power Stability

    <0.5% RMS(12h@25℃)

    Beam Quality

    TEM00, M2<1.3

    Polarization Extinction Ratio

    >20 dB

    Output Type

    Spatially collimated output

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    12 VDC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    2.5 kg

    Dimensions

    204×127×70 mm, 182×140×88 mm

    Cooling

     Air cooling

  •




  • Key Features:

    · 10 ps green light output

    · Linear polarization

    · Diffraction-limited beam quality

    Applications

    · Radar ranging

    · Fluorescence lifetime imaging

    · Time resolved fluorescence
