780 nm Ultrafast Fiber Laser

Rainbow 780 OEM is a high-performance ~800 nm ultrafast fiber laser, specifically designed for oem integration, such as commercial THz instrumentation. It is comprised of our best-selling Rainbow 1550 OEM and a compact frequency-doubling module to generate 780nm femtosecond laser beam with excellent power and transverse mode stability.

Rainbow 780 OEM has flexible parameters upon user requests. The laser operates at a wavelength of 780±10nm, and has pulse width of ≤100fs, repetition rate of 80MHz and an average power up to 60mW.A picosecond version is available as an option.

Rainbow 780 OEM is ideal for photonics research such as time-domain terahertz generation, SHG/THG imaging, and other nonlinear optical applications. It can meet a broad range of R&D requirements of the photonics and materials research community.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 780 nm Ultrafast Fiber Laser
    • Commodity ID: 1041147560007131136

    Rainbow 780 OEM is a high-performance ~800 nm ultrafast fiber laser, specifically designed for oem integration, such as commercial THz instrumentation. It is comprised of our best-selling Rainbow 1550 OEM and a compact frequency-doubling module to generate 780nm femtosecond laser beam with excellent power and transverse mode stability. </br></br> Rainbow 780 OEM has flexible parameters upon user requests. The laser operates at a wavelength of 780±10nm, and has pulse width of ≤100fs, repetition rate of 80MHz and an average power up to 60mW.A picosecond version is available as an option.</br></br> Rainbow 780 OEM is ideal for photonics research such as time-domain terahertz generation, SHG/THG imaging, and other nonlinear optical applications. It can meet a broad range of R&D requirements of the photonics and materials research community.

    Laser Parameters

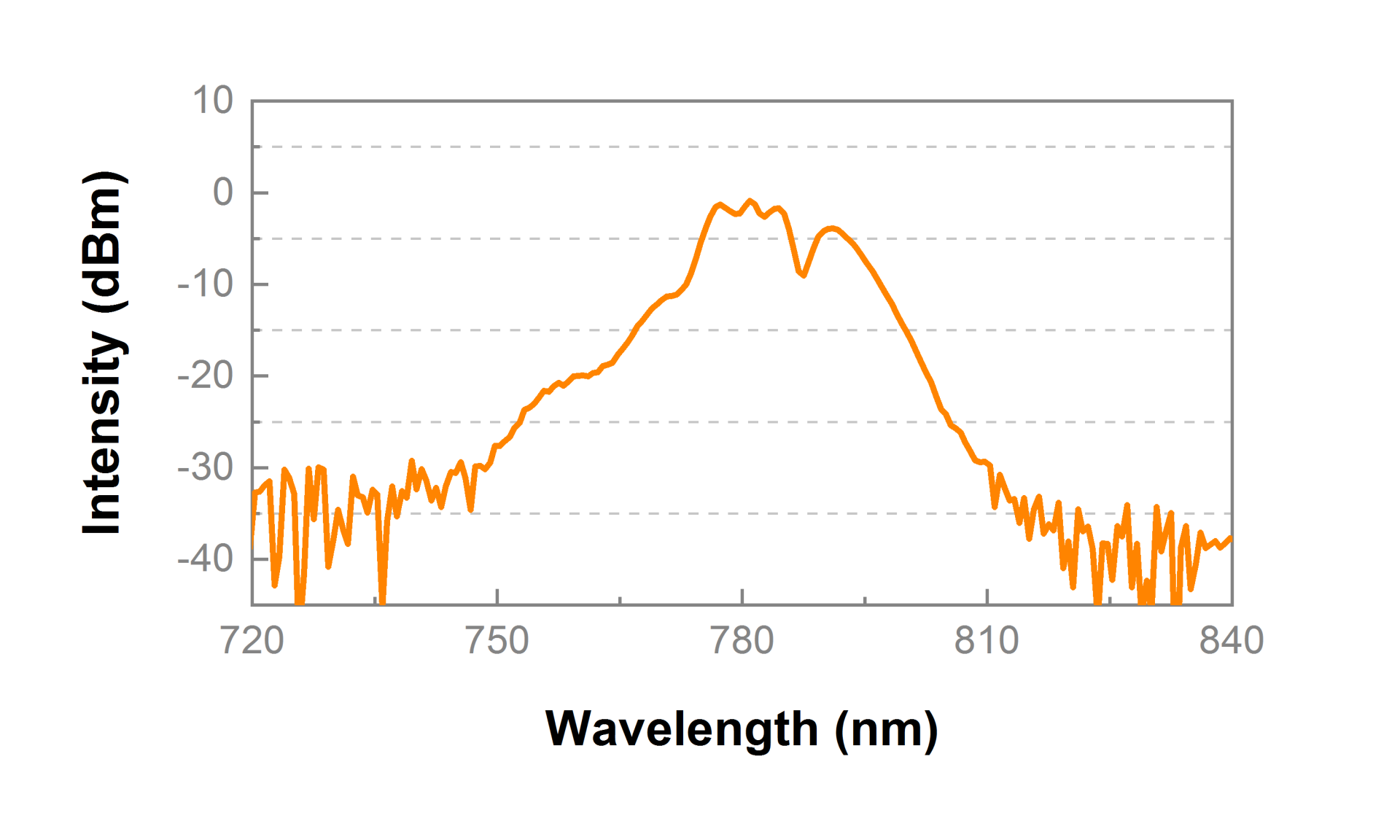

    Operating Wavelength

    780±10 nm

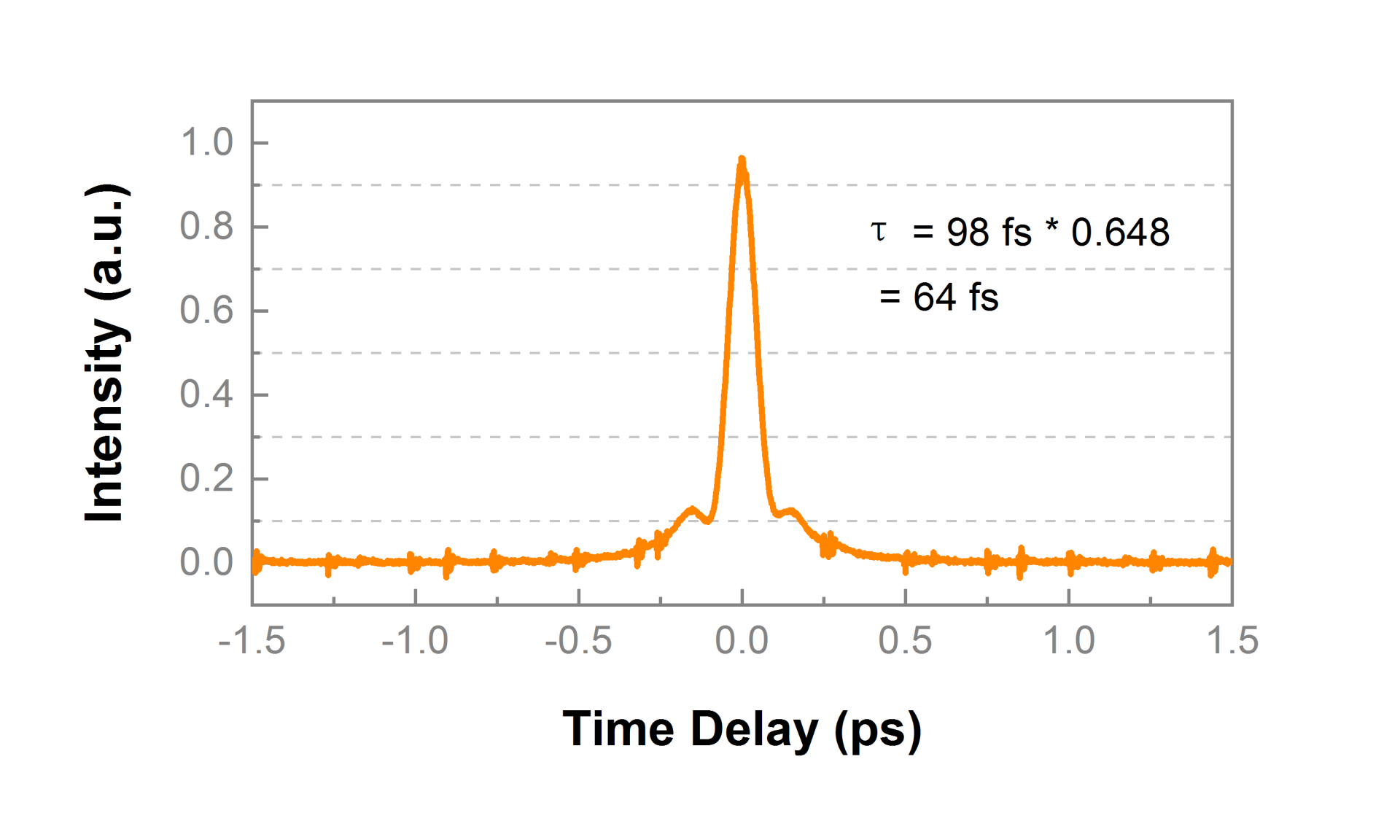

    Pulse width (FWHM)

    <100 fs(Typical 80 fs)

    Repetition Rate

    80 MHz

    Average Power

    		 >60 mW （Up to 80 mW）

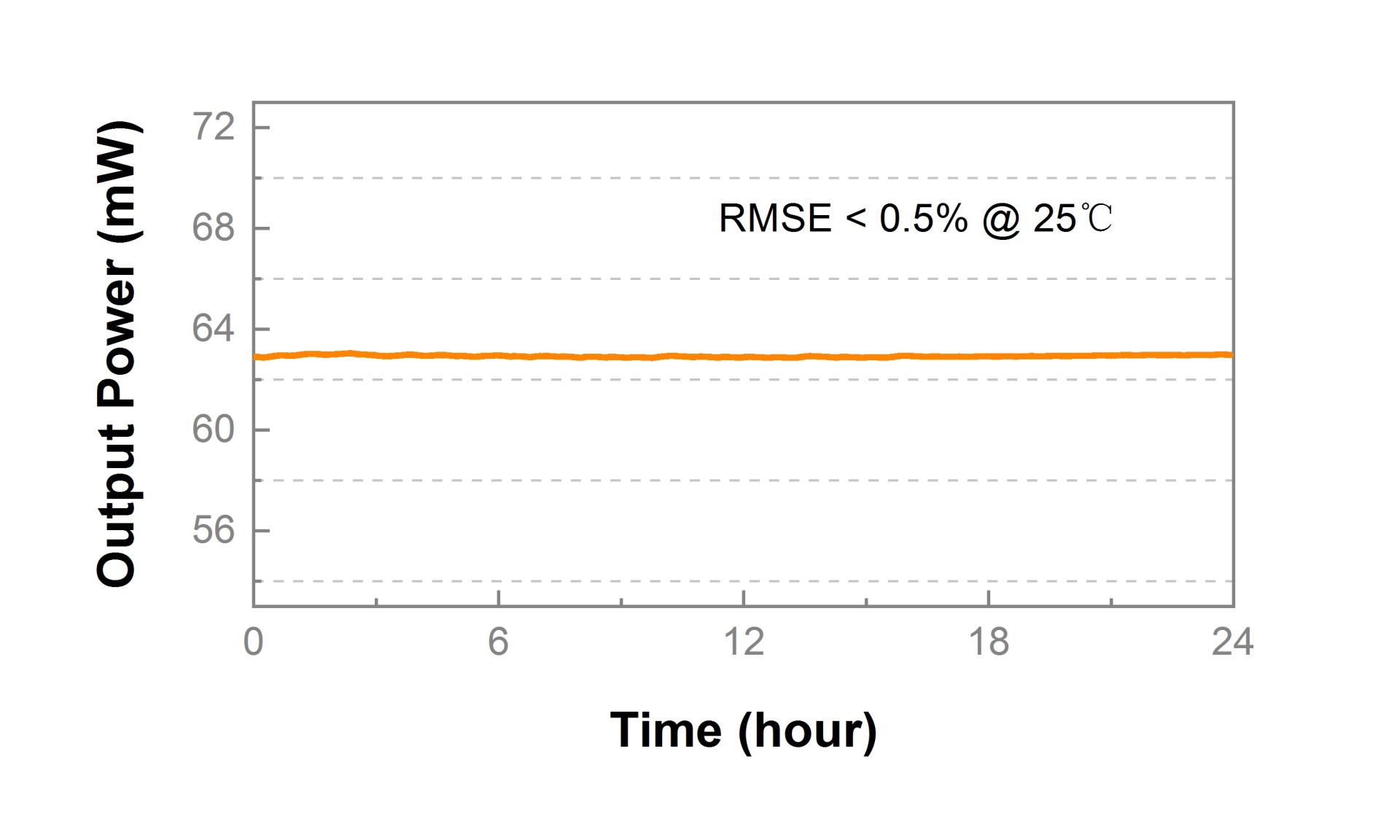

    Average Power Stability

    <0.5% RMS(12h@25℃)

    Pulse Energy

    >0.75 nJ
    Polarization Extinction Ratio

    >20 dB

    Output Type

    		 Spatially collimated output

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    12 VDC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    2 Kg

    Dimensions

    230×140×84

    Cooling

     Air cooling

  • Key Features：

    · Customizable wavelength

    · Picosecond level

    · Linear polarization

    · Diffration-limited beam

    Applications：

    · Biophotonology

    · Terahertz radiation

    · Optical measurements

    · Two-photon imaging



  • Rainbow 780 OEM.pdf
