1064 nm Ultrafast Fiber Laser Seed


Blade seed-AOM is a 1um picosecond fiber seed laser with pulse picker. There are two versions of this laser, with pulse widths of 10±2ps and 60±5ps, repetition rate range between 20k~15MHz and pulse energy of >30 nJ; it also supports burst mode output.

Blade seed-AOM constitutes an integrated system of seed laser oscillator, fiber amplifier, and acousto-optic modulator. The laser system is all-fiber, and has undergone vigorous temperature cycling and vibration tests, ensuring power stability and long-term reliability.

The laser has synchronous output via TTL port and DB9 connector is available for I/O control; it also supports remote control from PC. The laser is equipped with one button power switch, and is compact and maintenance-free.

Blade seed-AOM with pulse picker is unique with its compact size, high performance to cost ratio, and is suitable for customers in early design stage for SSL picosecond laser, and round-the-clock industrial OEM applications.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1064 nm Ultrafast Fiber Laser Seed
    • Commodity ID: 1041147656119607296

    Blade seed-AOM is a 1um picosecond fiber seed laser with pulse picker. There are two versions of this laser, with pulse widths of 10±2ps and 60±5ps, repetition rate range between 20k~15MHz and pulse energy of >30 nJ; it also supports burst mode output. </br></br> Blade seed-AOM constitutes an integrated system of seed laser oscillator, fiber amplifier, and acousto-optic modulator. The laser system is all-fiber, and has undergone vigorous temperature cycling and vibration tests, ensuring power stability and long-term reliability. </br></br> The laser has synchronous output via TTL port and DB9 connector is available for I/O control; it also supports remote control from PC. The laser is equipped with one button power switch, and is compact and maintenance-free. </br></br> Blade seed-AOM with pulse picker is unique with its compact size, high performance to cost ratio, and is suitable for customers in early design stage for SSL picosecond laser, and round-the-clock industrial OEM applications.

    Laser Parameters

    10 ps 60ps

    Operating Wavelength

    1064.3±0.15 nm

    Spectral Width

    <0.5 nm

    <0.2 nm

    Pulse width (FWHM)

    10±2 ps

    60±5 ps

    Repetition Rate

    20kHz-15 MHz(PRR=PRROSC/N,N=2,...,1500)

    Pulse Energy

    >30 nJ(@<2 MHz)

    Average Power Stability

    <0.5% RMS(12h@25℃)

    Polarization Extinction Ratio

    >20 dB

    Output Type

    Spatial light output (collimation module), optional isolator

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    12 VDC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    4 kg

    Dimensions

    234×145×85 mm,240×145×85,57×65×40 mm

    Cooling

     Air cooling

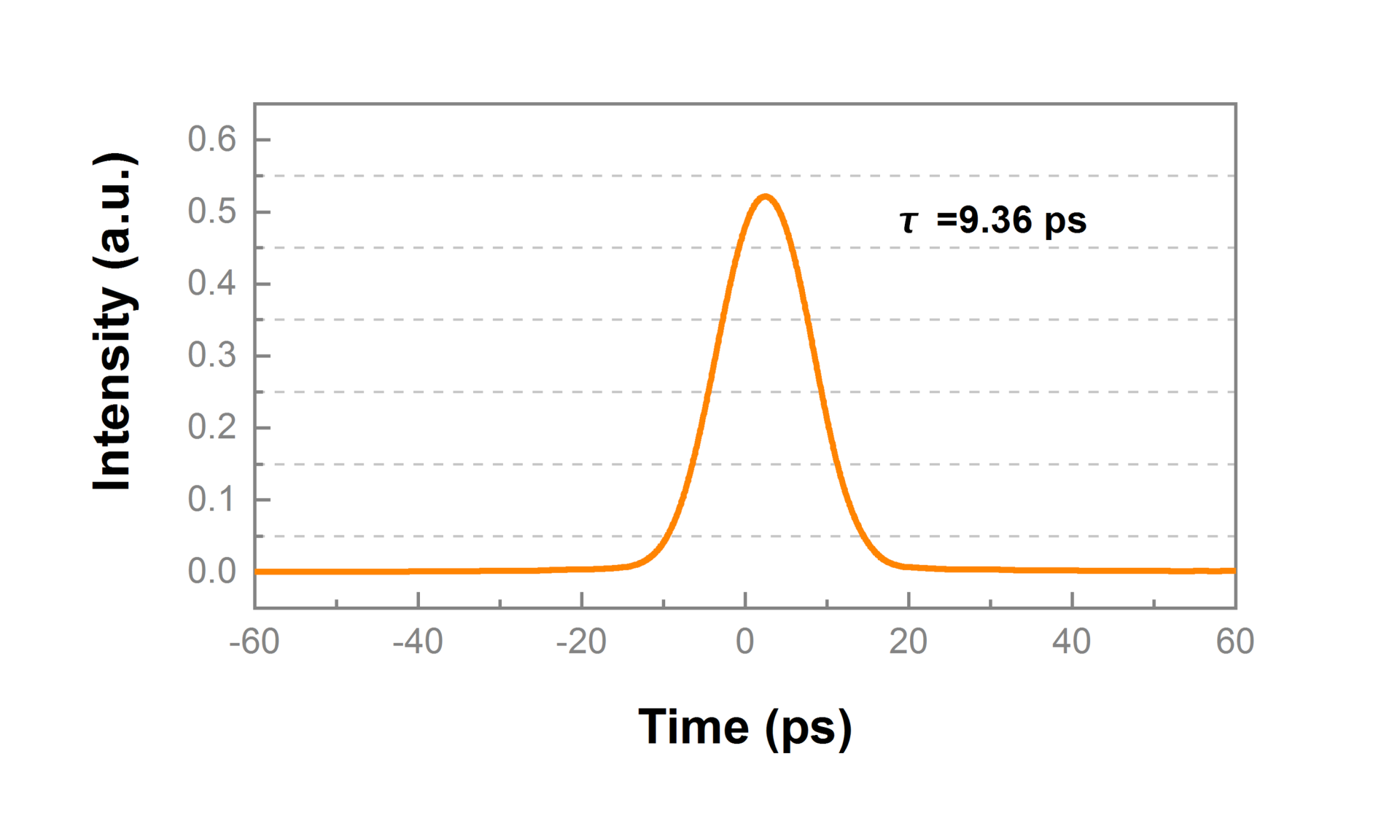

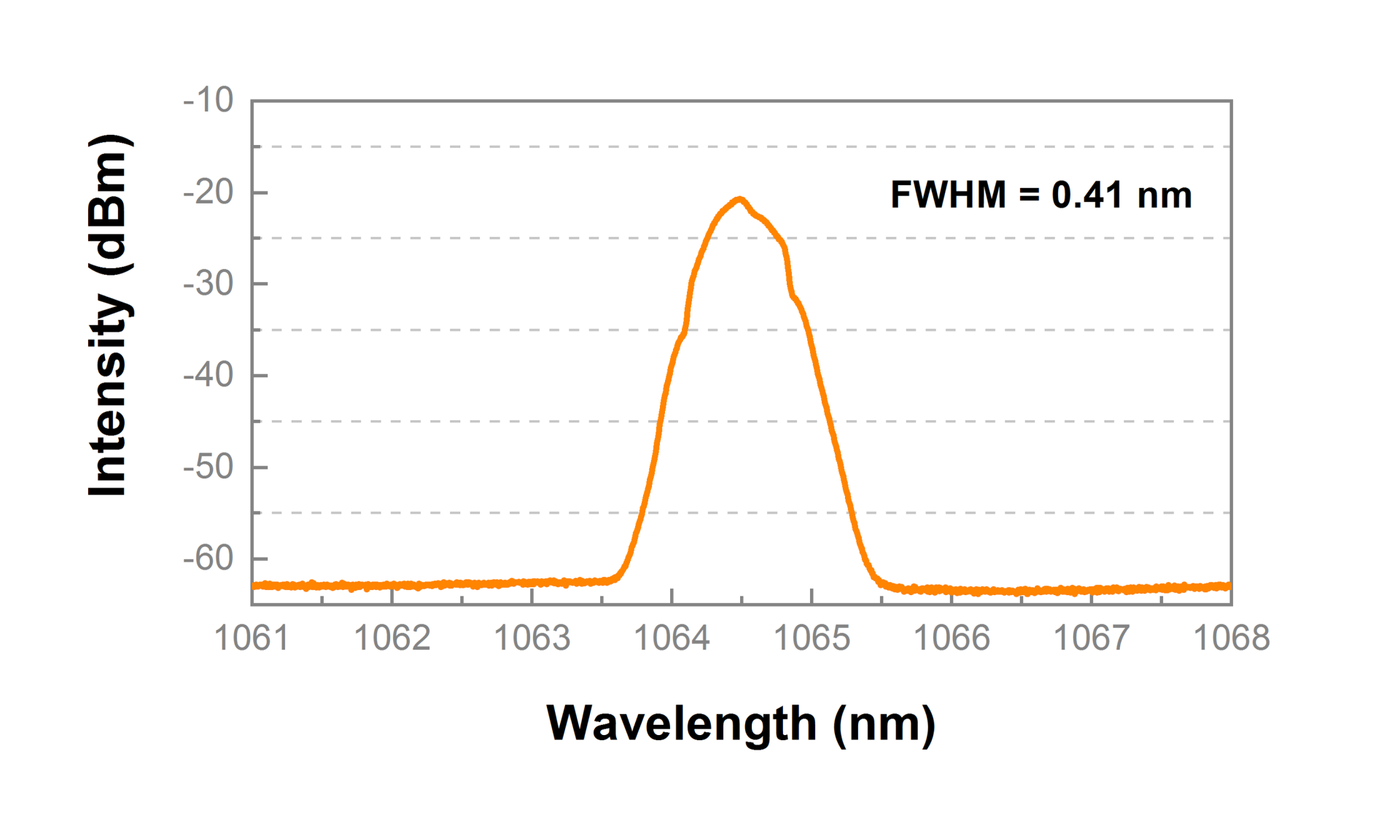

  • 10ps:

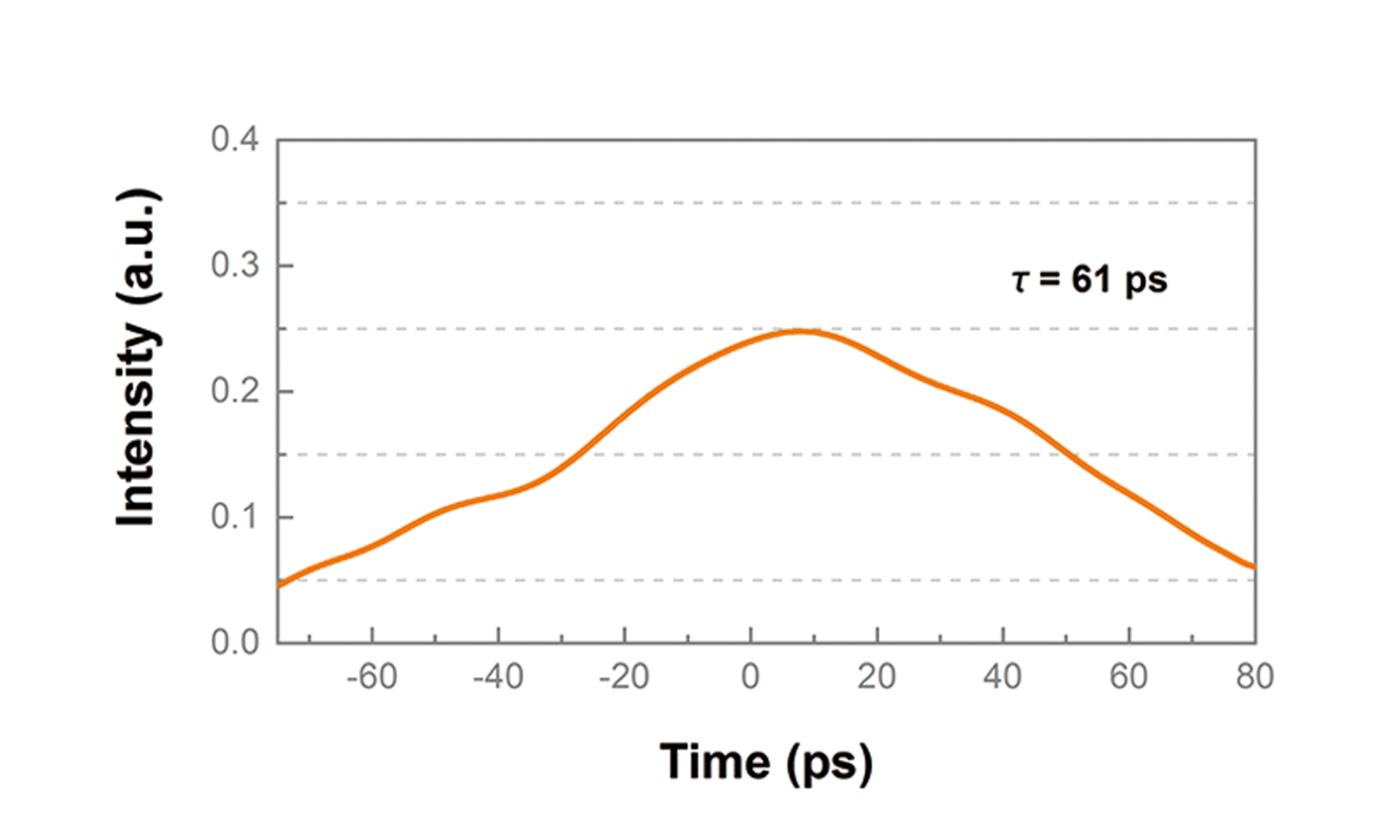

    60ps:

  • Key Features:

    · 24/7 design of high reliable operation

    · 10k times mode-locked test

    · HASS test

    · Flexible, customized desigh

    · Customizable wavelength

    Applications:

    · Ultrafast laser seed

    · Time-resolved fluorescence detection

    · Laser ranging

    · Supercontinuum generation

    · Ultrafast spectroscopy
