2000 nm Narrow Linewidth Fiber Laser


Ultraline 2000 is a 2um CW fiber laser with MHz level narrow line width. It features high reliability and high output power up to Watt-level.

Ultraline2000 is widely used in MIR laser generation, spectroscopy analysis, non-linear optics and other research areas.

The laser can be used with TDFA HP to generate 10-W output power.

product details

  • Detail

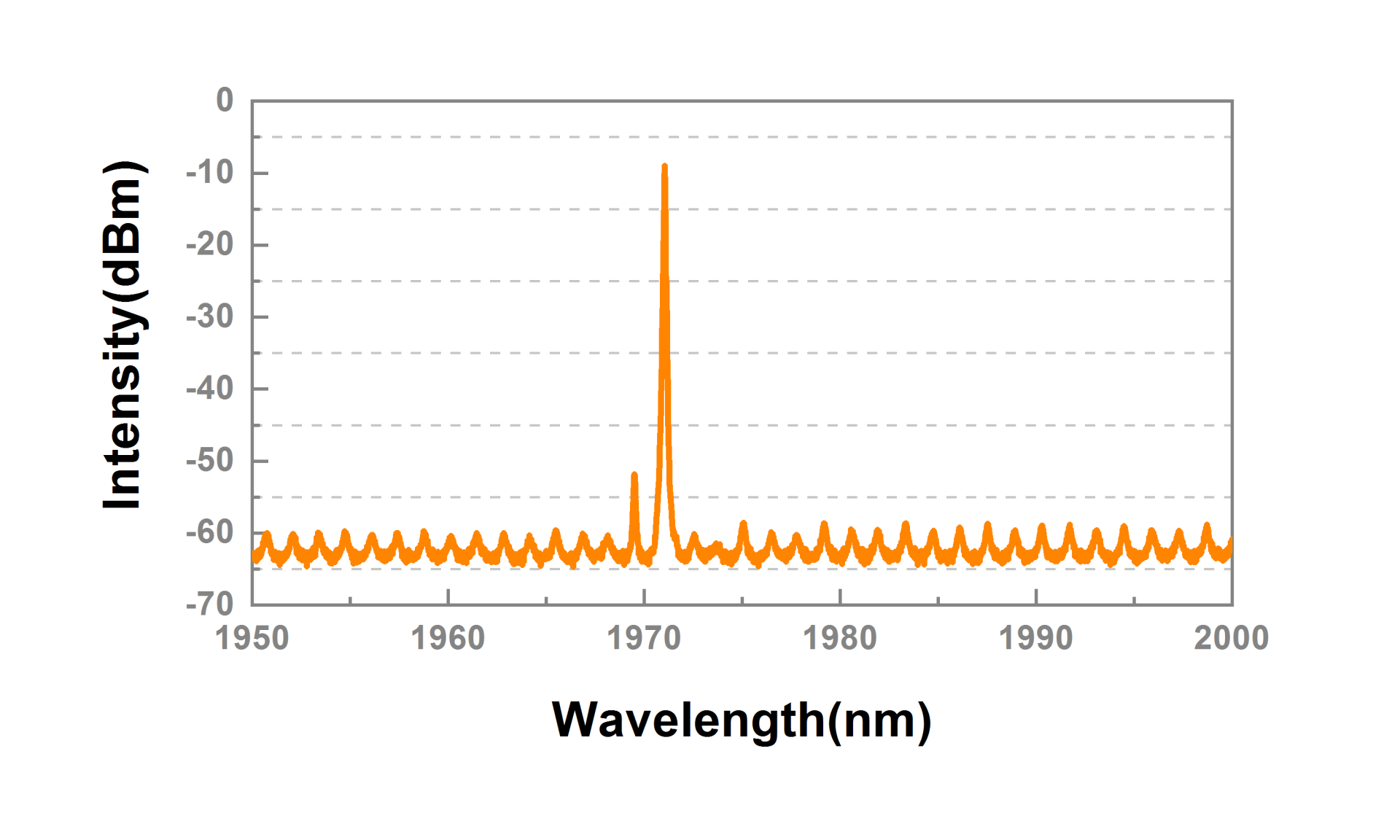

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 2000 nm Narrow Linewidth Fiber Laser
    • Commodity ID: 1041147701963350016

    Ultraline 2000 is a 2um CW fiber laser with MHz level narrow line width. It features high reliability and high output power up to Watt-level.</br></br> Ultraline2000 is widely used in MIR laser generation, spectroscopy analysis, non-linear optics and other research areas.</br></br> The laser can be used with TDFA HP to generate 10-W output power.

    Laser Parameters

    Operating Wavelength

    1900-2100 nm

    Spectral Bandwidth

    ~2 MHz

    Average Power

    100 mW, 1W

    Average Power Stability

    <1% RMS(12h@25℃)
    Beam Quality

    M2<1.1

    Output Type

    FC/APC Connector(100 mW);Fiber collimator output(1 W)

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    5 Kg

    Dimensions

    346×316×113.5 mm

    Cooling

     Air cooling

  • Key Features:

    · Customizable wavelength

    · Very narrow spectral linewidth

    · Single mode fiber delivery

    · Diffration limited beam

    · Turn-key system

    Applications:

    · Laser radar

    · Environmental monitoring

    · Molecular detection

    · Laser frequency conversion

    · Mid-IR Related Research
