2000 nm Widely Tunable Fiber Laser


Supertune-2000 is a highly stable, widely tunable cw laser specially designed for the testing of optical components made for 2um wavelength.

Supertune-2000 covers the wavelength range of 1900~2000nm, with good cost-performance ratio, and bridged a gap in MIR and NIR wavelength range. Supertune-2000 can be also combined with TDFAs to achieve Watt-level power output.

Supertune-2000 is widely used in the testing of passive-fiber, optical coating, optical detectors and integrated optical parts around 2um. With the simple and smart design, it is a good platform for applications such as industrial detection, long-wavelength optical testing platforms.

product details

  • Detail

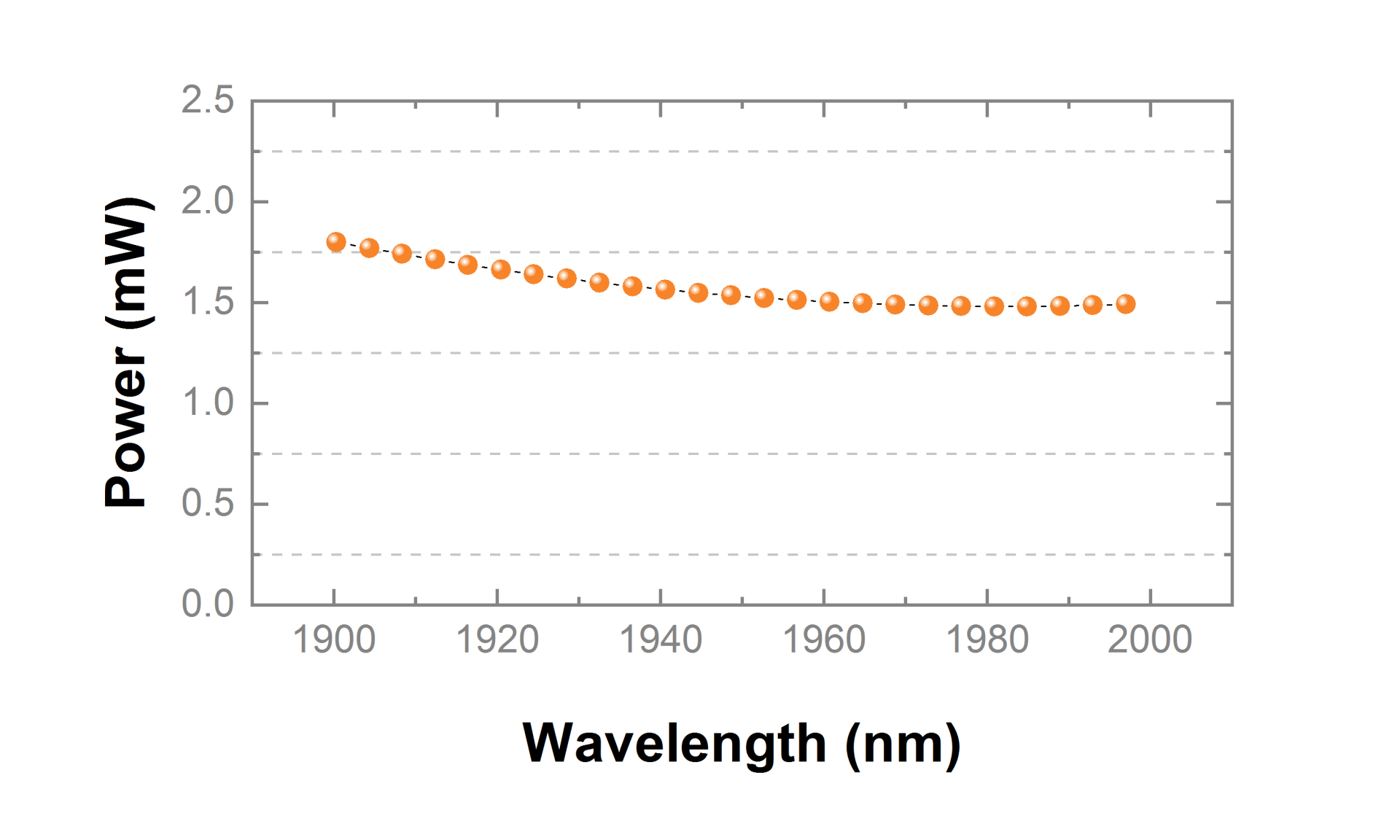

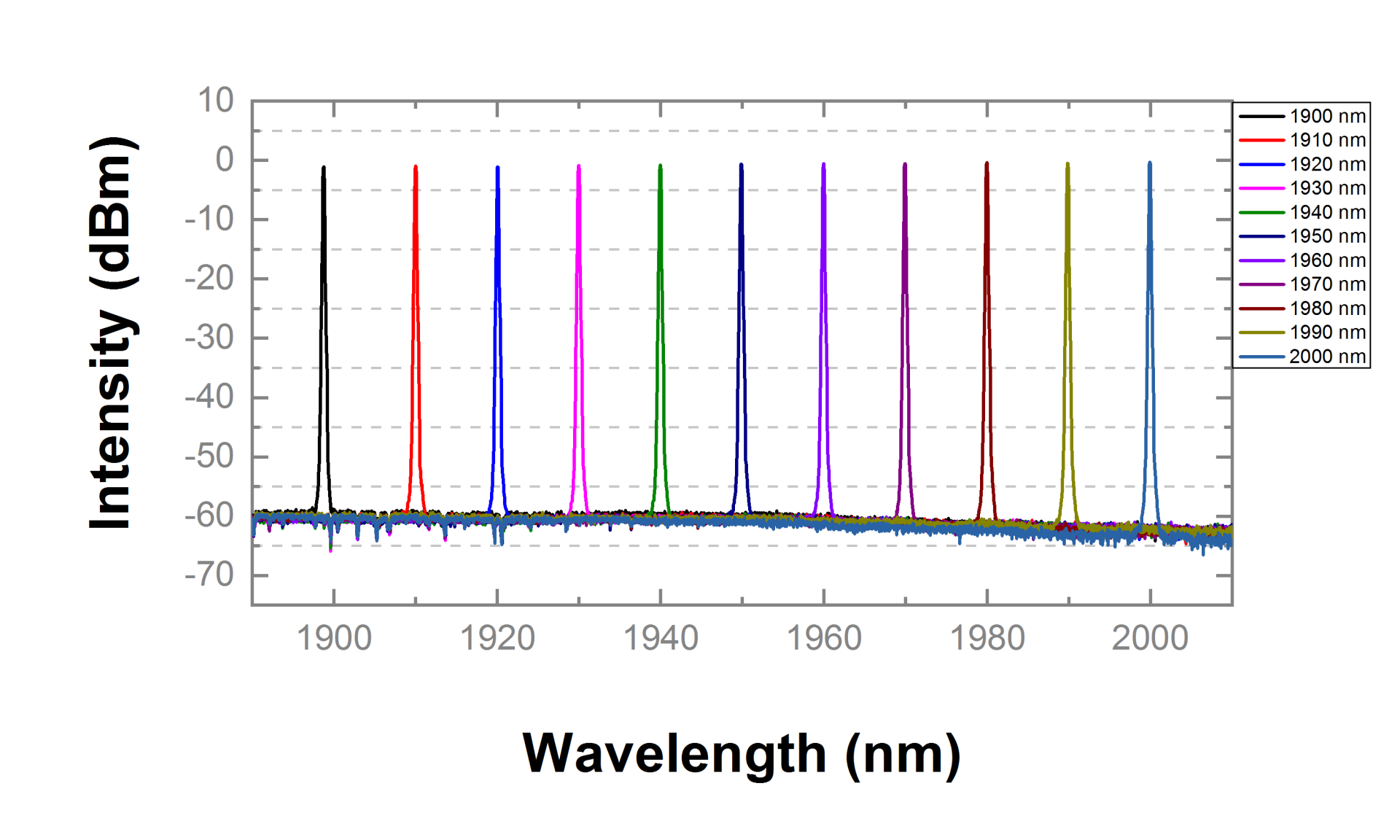

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 2000 nm Widely Tunable Fiber Laser
    • Commodity ID: 1041147751422582784

    Supertune-2000 is a highly stable, widely tunable cw laser specially designed for the testing of optical components made for 2um wavelength.</br></br> Supertune-2000 covers the wavelength range of 1900~2000nm, with good cost-performance ratio, and bridged a gap in MIR and NIR wavelength range. Supertune-2000 can be also combined with TDFAs to achieve Watt-level power output.</br></br> Supertune-2000 is widely used in the testing of passive-fiber, optical coating, optical detectors and integrated optical parts around 2um. With the simple and smart design, it is a good platform for applications such as industrial detection, long-wavelength optical testing platforms.

    Laser Parameters

    Tuning Range

    1900-2000 nm

    Output bandwidth

    <0.1 nm

    Tuning Step

    0.1 nm

    Wavelength Accuracy

    <0.2 nm

    Average Power

    >1 mW
    Average Power Stability

    <0.5% RMS(12h@25℃)

    Beam Quality

    M2<1.2

    Output Type

     SM2000 Fiber,FC/APC Connector

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    17 Kg

    Dimensions

    436×260×146

    Cooling

     Air cooling

  • Key Features:

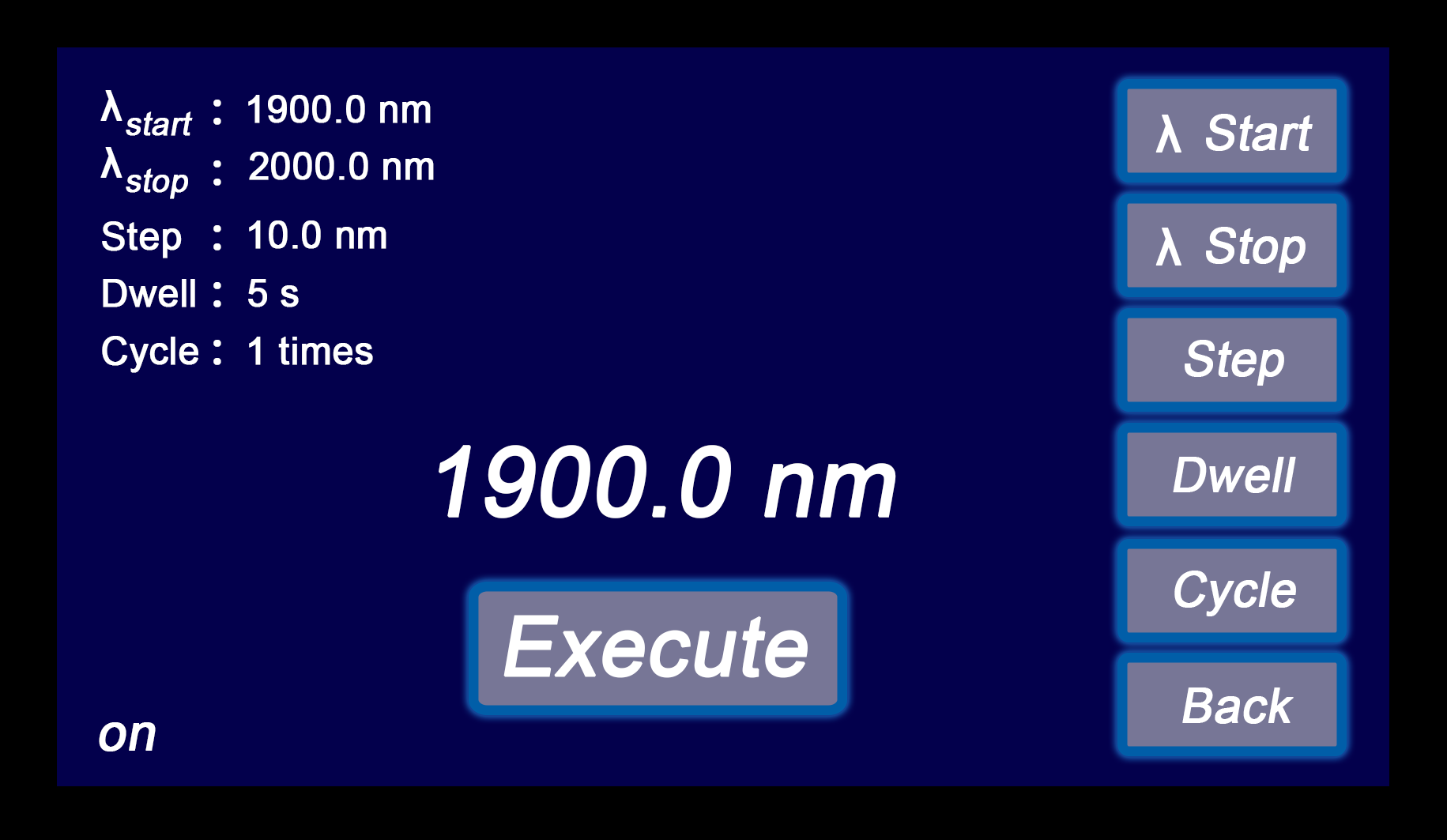

    · Fast wavelength sweep

    · High spatial resolution

    · Excellent power stability

    · Diffration limited beam

    · Turn-key system

    Applications:

    · Gas sensing

    · Spectroscopy

    · Biomedical analysis

    · Test and measurement

    · Silicon Photonics
