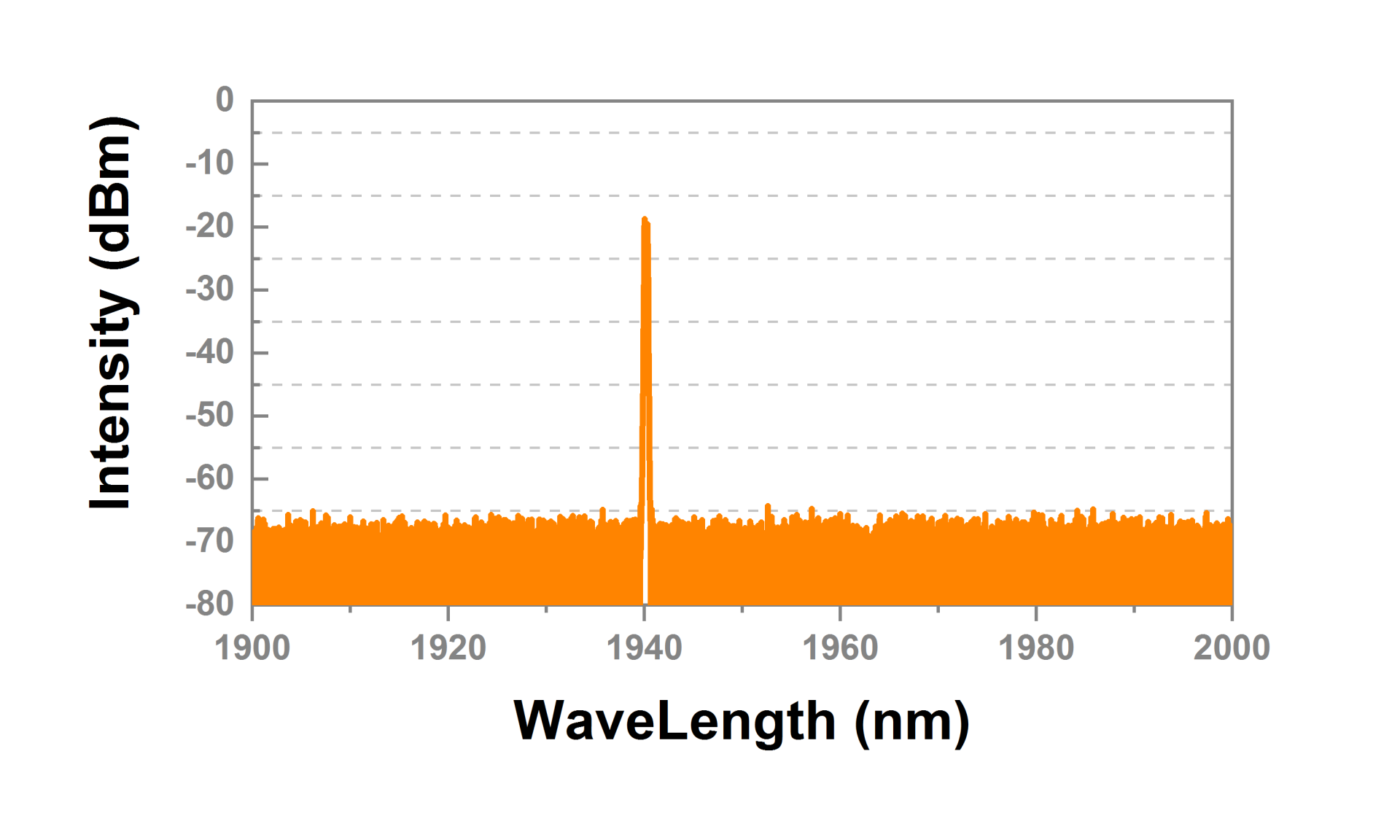

- Test Data
- Applications
- Datasheet
- Quotation
-
- Commodity name: 2000 nm High-power CW Fiber Laser
- Commodity ID: 1041147802064609280
PowerWave 2000 is a high-power 2000nm CW fiber laser developed NPI Lasers. The laser has an operating wavelength range of 1900nm~2050nm, single-mode output with CW output power of up to 30W. It has an excellent near diffraction limit beam. </br></br> PowerWave 2000 is an ideal choice for transparent plastic welding using materials such as PMMA and PC/ABS for biomedical applications. It can also be used as the pump source for MIR lasers in scientific research.
Laser Parameters
Operating Wavelength
1900-2000 nm(Typical 1908&1940 nm)
Spectral Bandwidth <1 nm
Average Power 30 W, 70 W
Average Power Stability
<1% RMS(12h@25℃) Beam Diameter 5 mm
Beam Quality M2<1.2
Output Polarization Random(Linear Polarization optional)
Output Type
Fiber collimator output Electrical, Environmental and Mechanical Parameters
Supply Voltage
100-240 VAC
Operational Temperature Range
15-35 ℃
Operational Humidity Range
20~80 ( non-condensing )
Weight
20 kg
Dimensions
633×483×141 mm
Cooling
Air cooling, Water cooling
-
-
Key Features:
· Customizable wavelength
· Single mode
· Diffration limited beam
· Easy operation and maintenance-free
· Turn-key system
Applications:
· Plastic welding and cutting
· Medical surgery
· Solid laser pump source
· Transparent material processing
· Spectroscopy
-
