High Power Erbium-doped fiber amplifier


EDFA is a benchtop Er-doped fiber amplifier. It incorporates high-end multi-mode pump diodes, WDM combiners, and high-gain Er-doped fiber. The system has industrial-leading power-level and noise performance.

Our EDFAs feature a turn-key design. The operator panel has an alarm and status indicators, and integrates RS232 connector (or Ethernet interface) for PC remote control. There are customization options for single-frequency, all-polarization-maintaining and short-pulsed operation.

product details

  • Detail

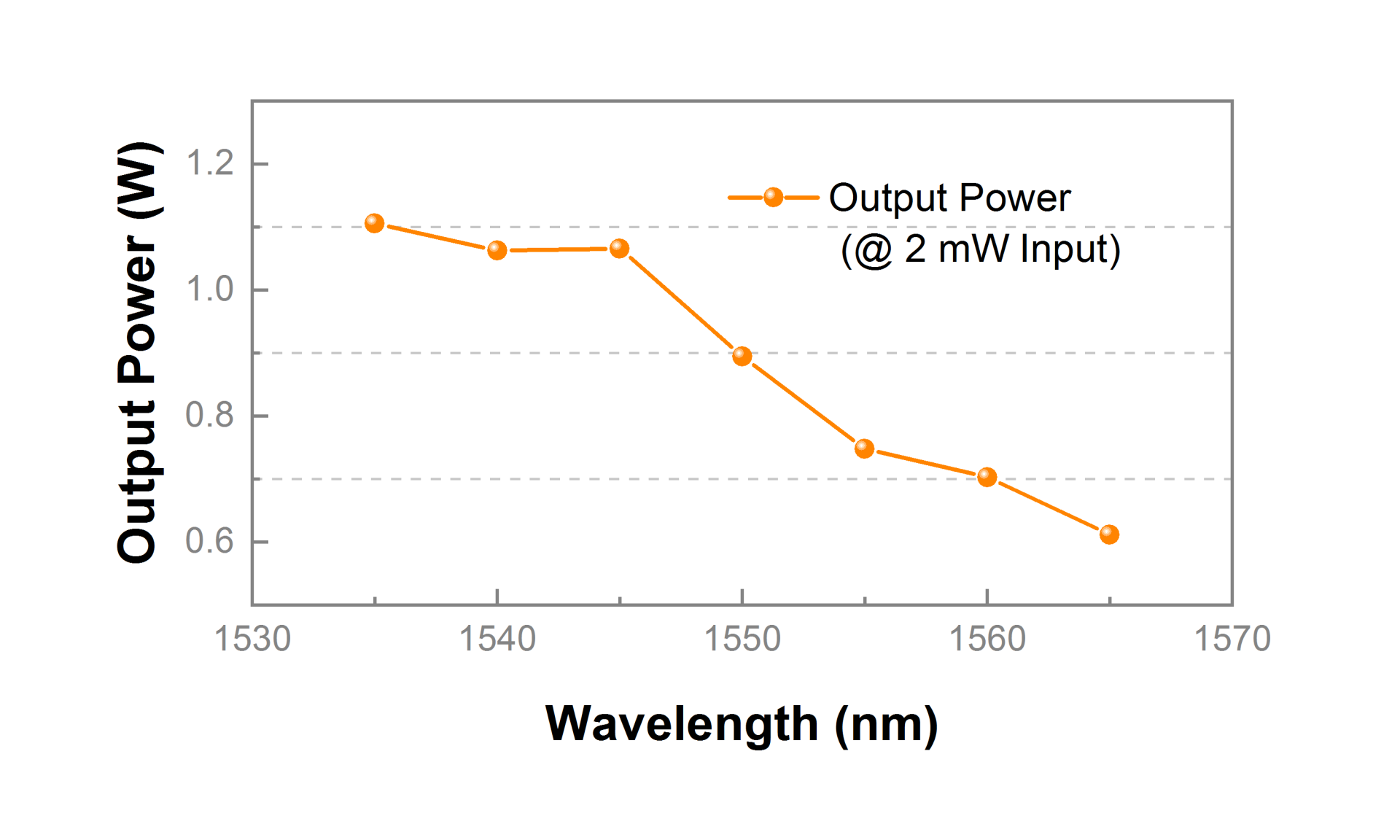

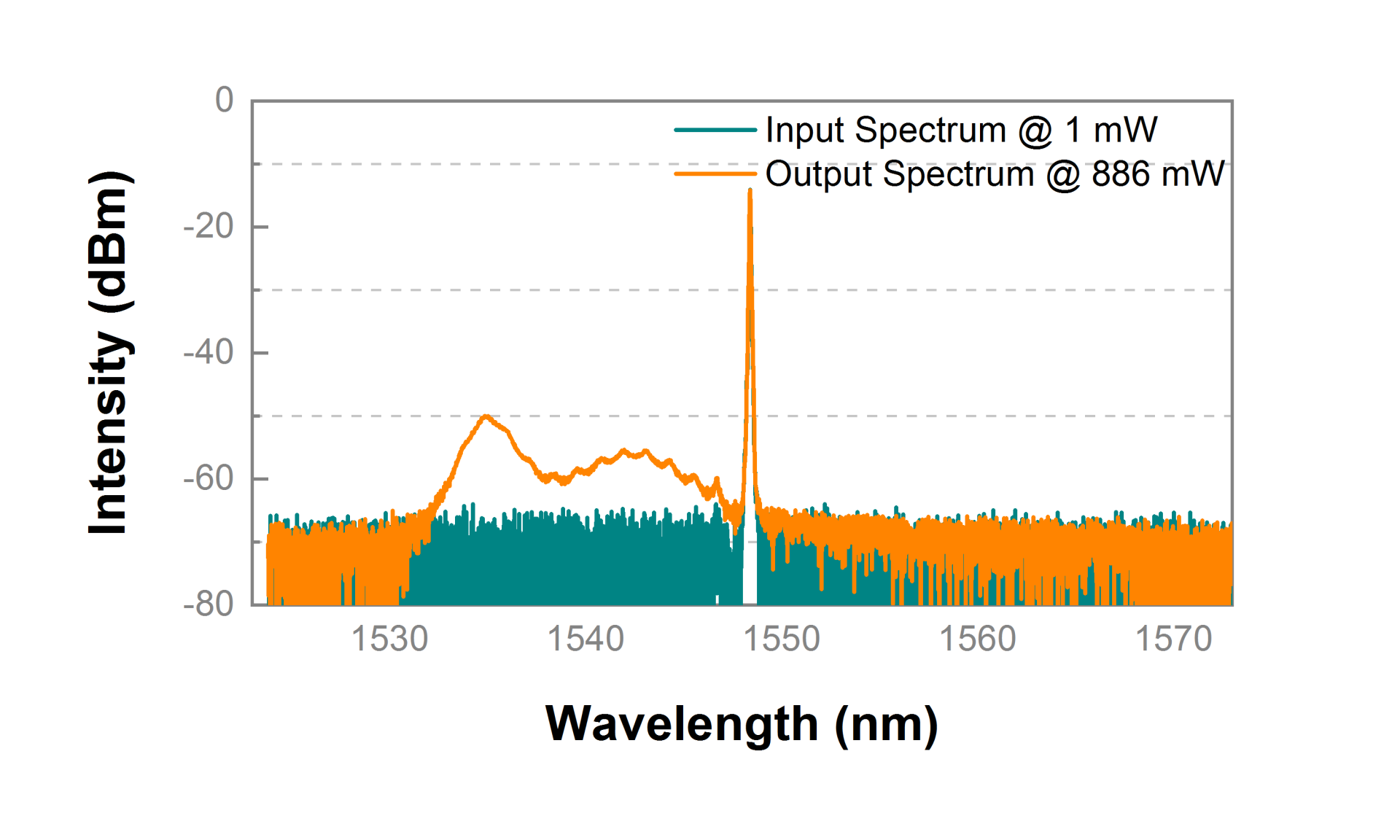

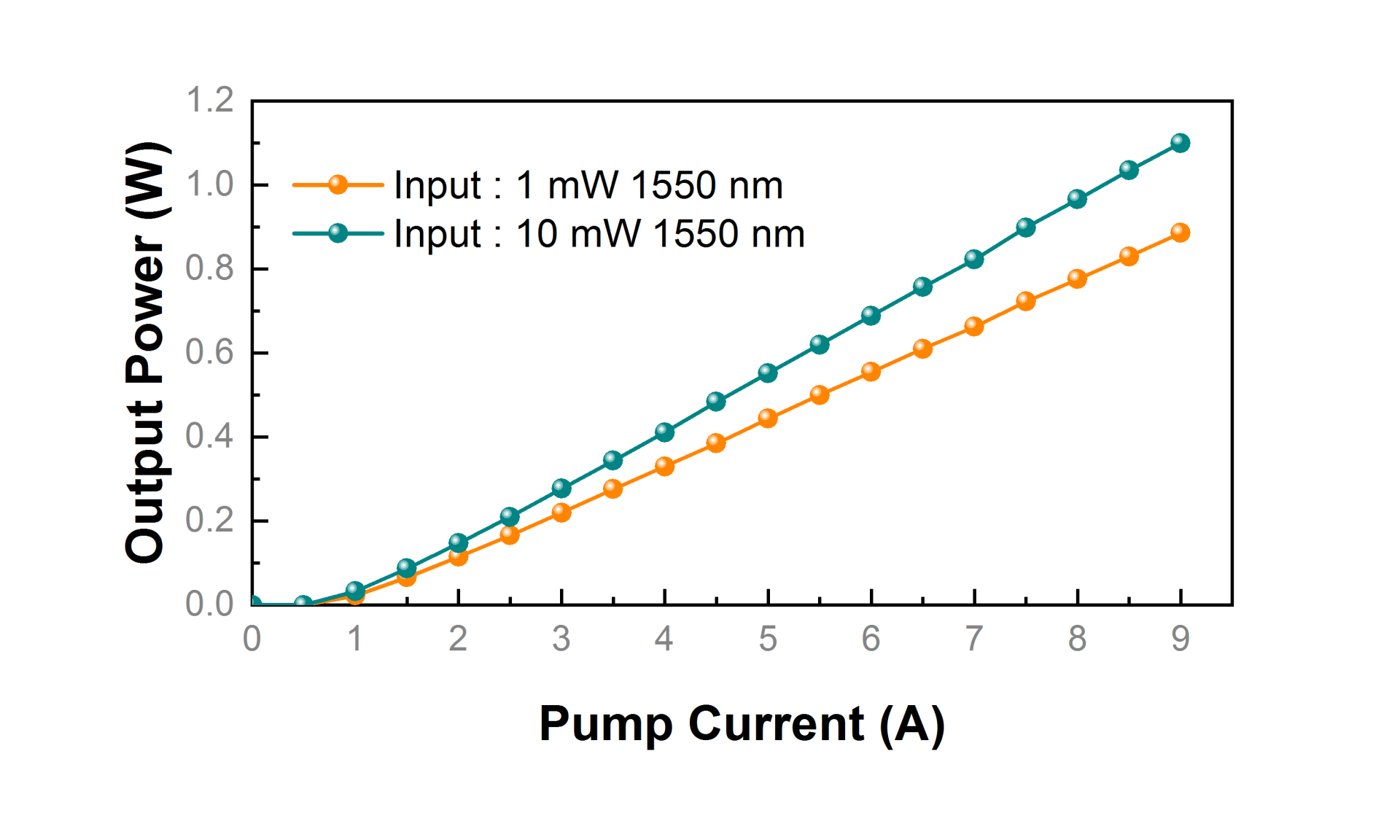

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: High Power Erbium-doped fiber amplifier
    • Commodity ID: 1041147852115238912

    EDFA is a benchtop Er-doped fiber amplifier. It incorporates high-end multi-mode pump diodes, WDM combiners, and high-gain Er-doped fiber. The system has industrial-leading power-level and noise performance.</br></br> Our EDFAs feature a turn-key design. The operator panel has an alarm and status indicators, and integrates RS232 connector (or Ethernet interface) for PC remote control. There are customization options for single-frequency, all-polarization-maintaining and short-pulsed operation.

    Laser Parameters

    Operating Wavelength

    1530-1570 nm

    Gain coefficient

    >29 dB

    Saturation power

    1 W

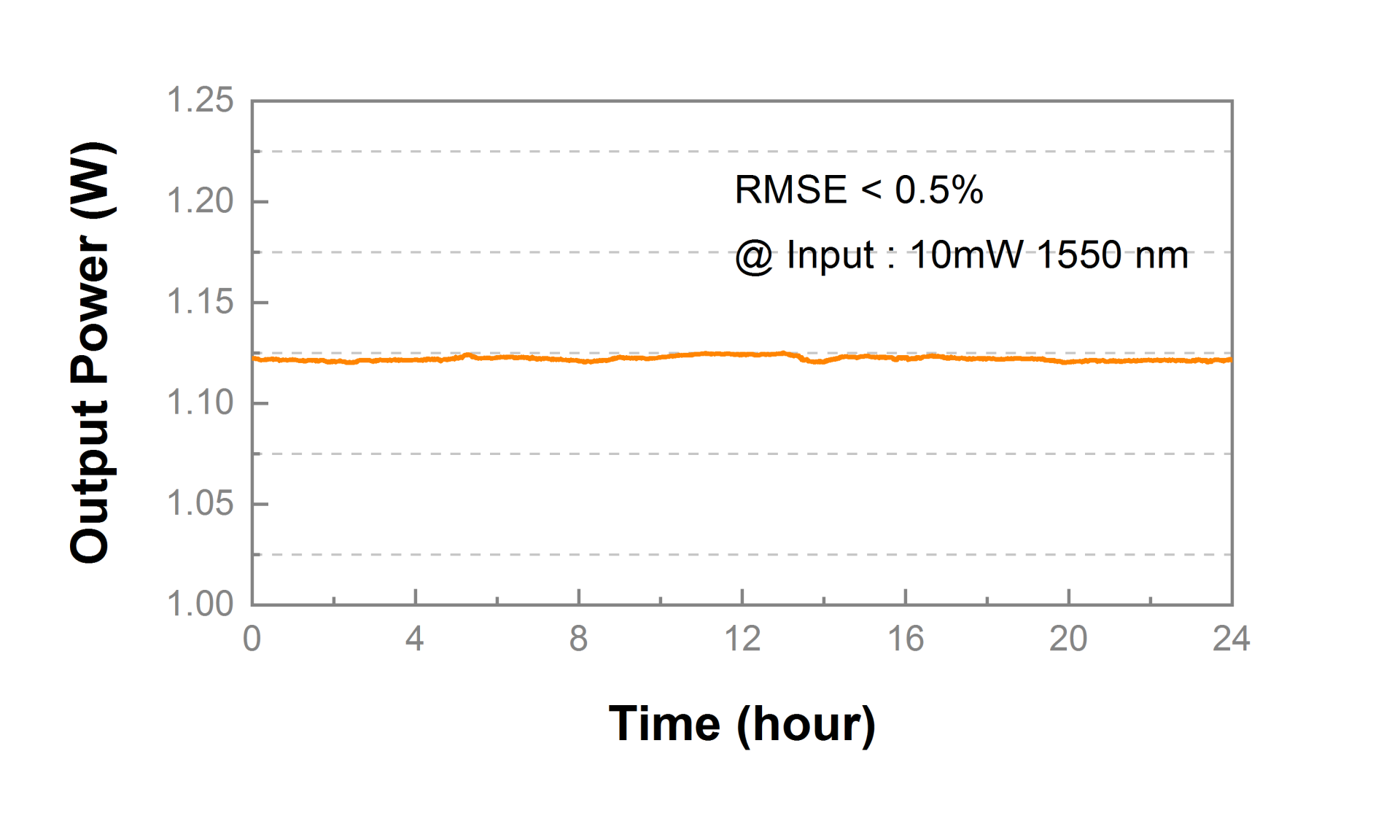

    Average Power Stability

    <0.5 RMS (24h@25℃)
    Beam Quality

    TEM00,M2<1.2

    Output Polarization

     Random/Linear Polarization
    Output Type

     SMF28e/PM1950 Fiber,FC/APC Connector

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    4.6 Kg

    Dimensions

    306×276×111.6 mm

    Cooling

     Air cooling

  •

  • Key Features:

    · Wide wavelength bandwidth

    · Low noise

    · Excellent Power Stability

    · Diffration limited beam

    Applications:

    · Power amplification

    · Terahertz generation

    · Two photon polymerization

    · Second harmonic imaging
