High Power Ytterbium Doped Fiber Amplifier


YDFA is a benchtop Yb-doped fiber amplifier. It incorporates high-end multi-mode pump diodes, WDM combiners, and high-gain Yb-doped fiber. The system has industrial-leading power level and noise performance.

Our YDFAs feature a turn-key design. The operator panel has an alarm and status indicators, and integrates RS232 connector (or Ethernet interface) for PC remote control. There are customization options for single-frequency, all-polarization-maintaining and short-pulsed operation.

product details

  • Detail

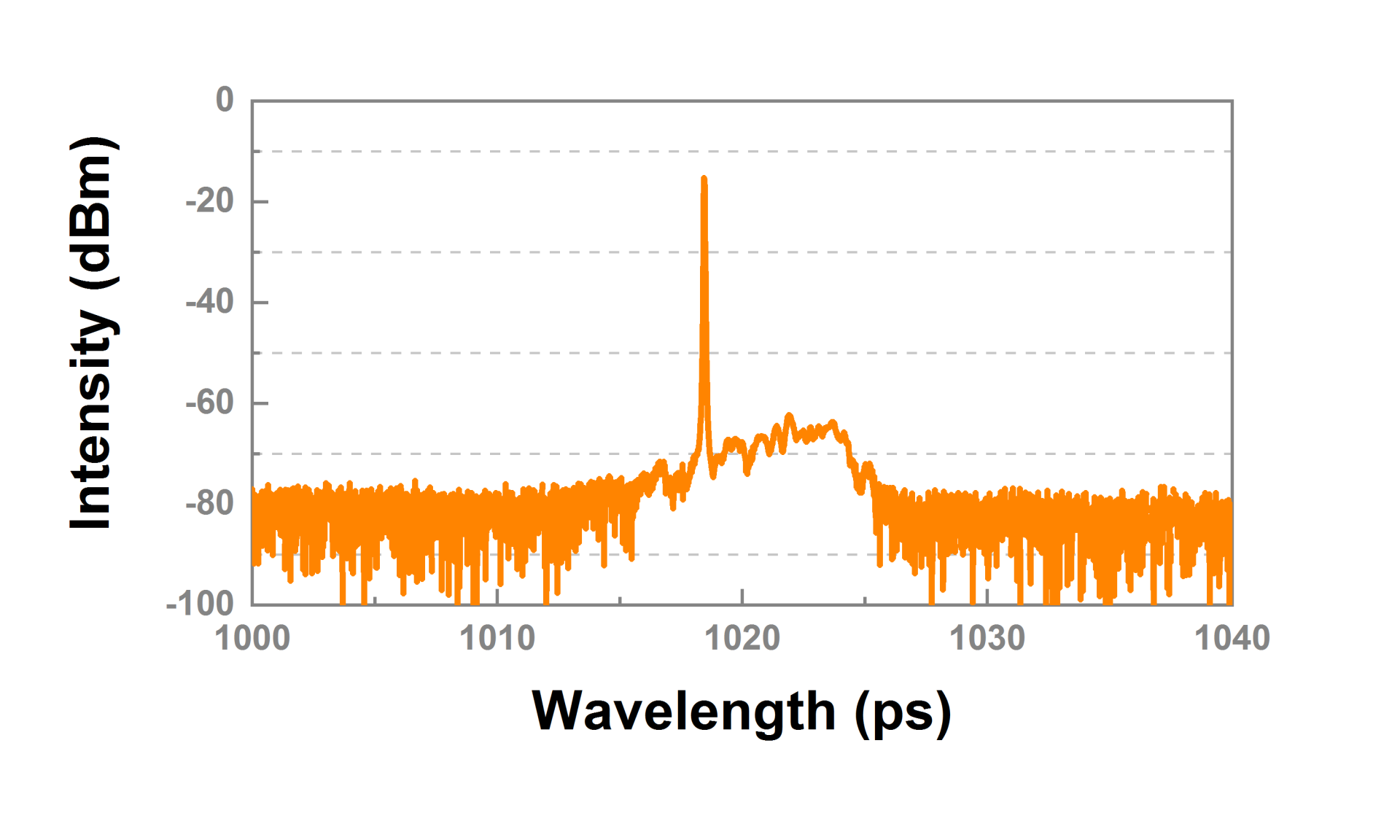

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: High Power Ytterbium Doped Fiber Amplifier
    • Commodity ID: 1041147894754533376

    YDFA is a benchtop Yb-doped fiber amplifier. It incorporates high-end multi-mode pump diodes, WDM combiners, and high-gain Yb-doped fiber. The system has industrial-leading power level and noise performance.</br></br> Our YDFAs feature a turn-key design. The operator panel has an alarm and status indicators, and integrates RS232 connector (or Ethernet interface) for PC remote control. There are customization options for single-frequency, all-polarization-maintaining and short-pulsed operation.

    Laser Parameters

    Operating Wavelength

    1015-1090 nm

    Input Power

    >10 mW

    Output Power

    1 W, 10 W

    Gain peak wavelength

    1064 nm
    Noise Figure

    <8 dB

    Output polarization

    Random / linear polarization
    Output Type

    Output collimator(>1 W)

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    4.6 Kg

    Dimensions

    306×276×111.6

    Cooling

     Air cooling

  • Key Features:

    · Wide wavelength bandwidth

    · Low noise

    · Excellent Power Stability

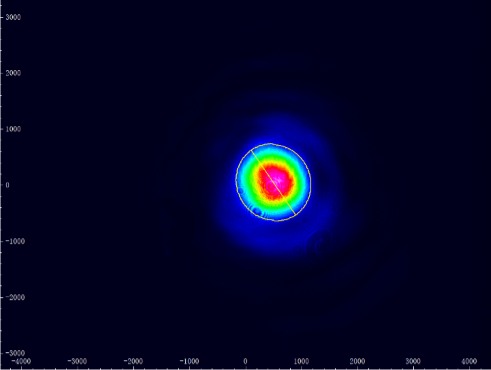

    · Diffration limited beam

    Applications:

    · OPA pump

    · Pump-probe

    · Laser ranging

    · Supercontinuum generation
