OPPO MIR-ps Widely Tunable Fiber Laser


OPPO MIR is a tunable laser based on optical parameter oscillation (OPO).

OPPO MIR has tunable wavelength range of 2.8~4.2um, with maximum output power >1W at characteristic wavelengths. Both picosecond (100ps) and CW (narrow-linewidth) versions are available.

OPPO MIR has important applications in material characterizations, remote sensing, medical and biomedical fields. It boasts rugged industrial design ensuring high stability and high reliability. The user-friendly software allows easy control of both operating wavelength and power. With high brightness, good coherence performance, it can be widely used in mid-infrared sensing and infrared materials/structure characterizations etc.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: OPPO MIR-ps Widely Tunable Fiber Laser
    • Commodity ID: 1041147981962502144

    OPPO MIR is a tunable laser based on optical parameter oscillation (OPO). </br></br> OPPO MIR has tunable wavelength range of 2.8~4.2um, with maximum output power >1W at characteristic wavelengths. Both picosecond (100ps) and CW (narrow-linewidth) versions are available. </br></br> OPPO MIR has important applications in material characterizations, remote sensing, medical and biomedical fields. It boasts rugged industrial design ensuring high stability and high reliability. The user-friendly software allows easy control of both operating wavelength and power. With high brightness, good coherence performance, it can be widely used in mid-infrared sensing and infrared materials/structure characterizations etc.

    Laser Parameters

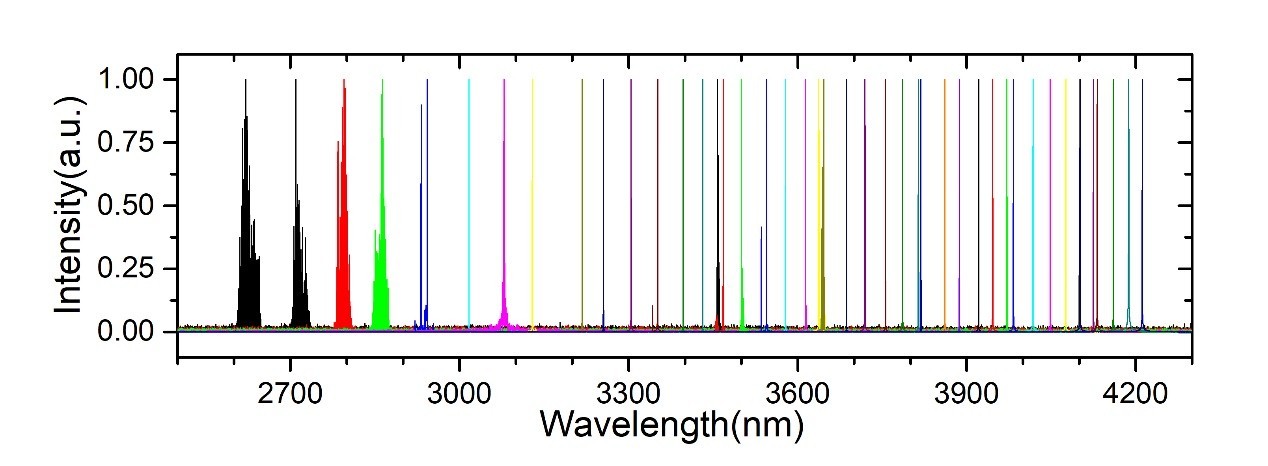

    Operating Wavelength

    2800-4200 nm

    Wavelength tuning accuracy

    <1 nm

    Pulse width (FWHM)

    <100 ps

    Repetition Rate

    100±2 MHz
    Average Power

    >100 mW

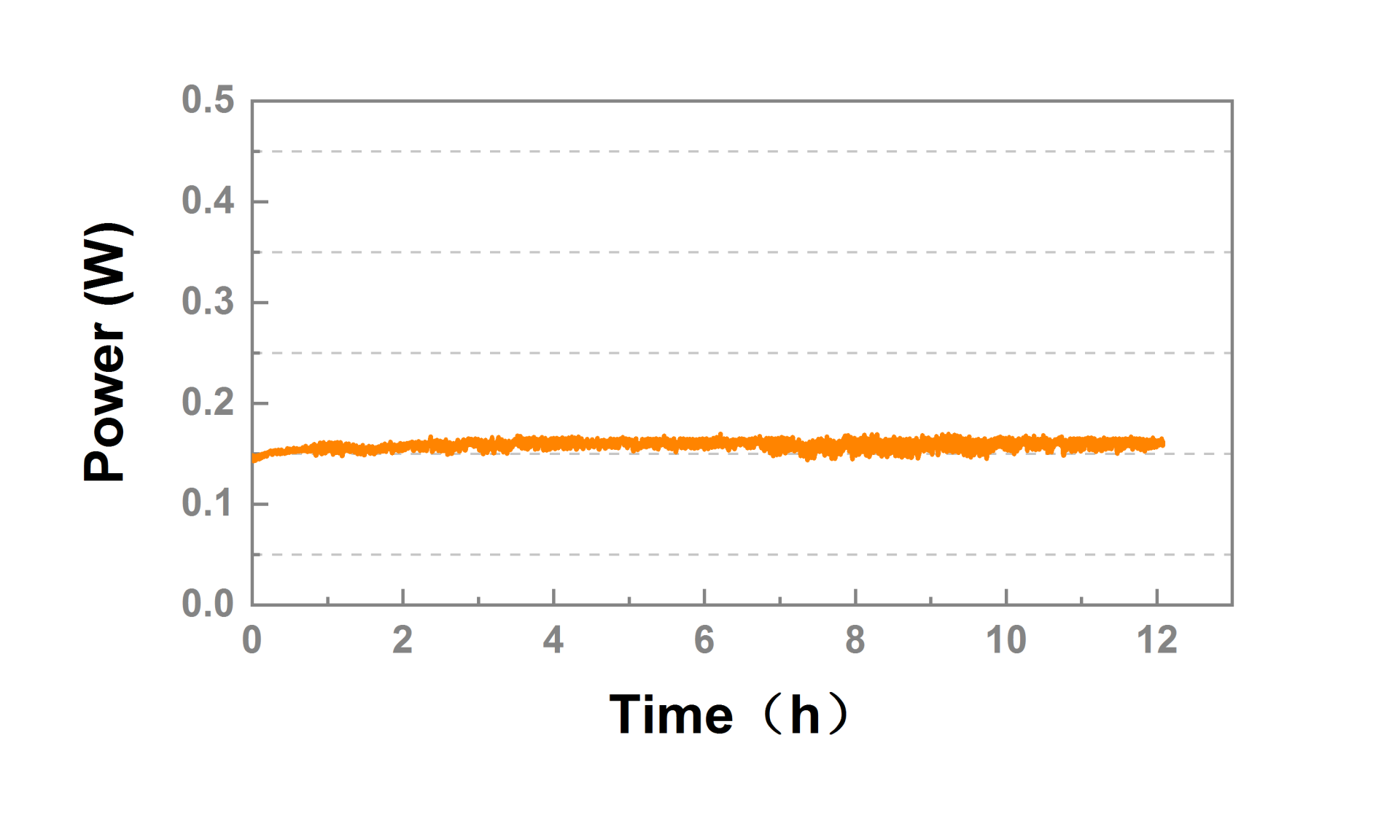

    Aerage Power Stability

    <0.5% RMS(12h@25℃)

    Beam Diameter

    5±1 mm

    Output Type

    Spatially collimated output

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    25 Kg

    Dimensions

    360×240×123

    Cooling

     Water cooling

  • Key Features:

    ·  Tunable wavelength

    ·   Mode-hop-free sweep

    ·   Excellent power stability

    ·   Diffration limited beam

    Applications:

    ·   Gas sensing

    ·   Atmospheric remote sensing

    ·   Biomedical analysis

    ·   Test and measurement
