OPPO-SP Multichannel Broadband Tunable Ultrafast Fiber Laser

OPPO-SP is a tunable fiber laser developed specifically for Silicon Photonics and mid-infrared ultrafast nonlinear photonics research. Compared with solid-state OPO systems, OPPO-SP has decisive advantages in terms of power and pulse energy in the range beyond 2000 nm, where two-photon absorption in silicon diminishes. In addition, the system is based on an all-fiber and modular architecture, featuring excellent stability, mode-quality and cost/performance ratio.

OPPO-SP is also used by customers working in the fields of mid-infrared supercontinuum generation, and infrared material spectroscopy.

product details

  • Detail

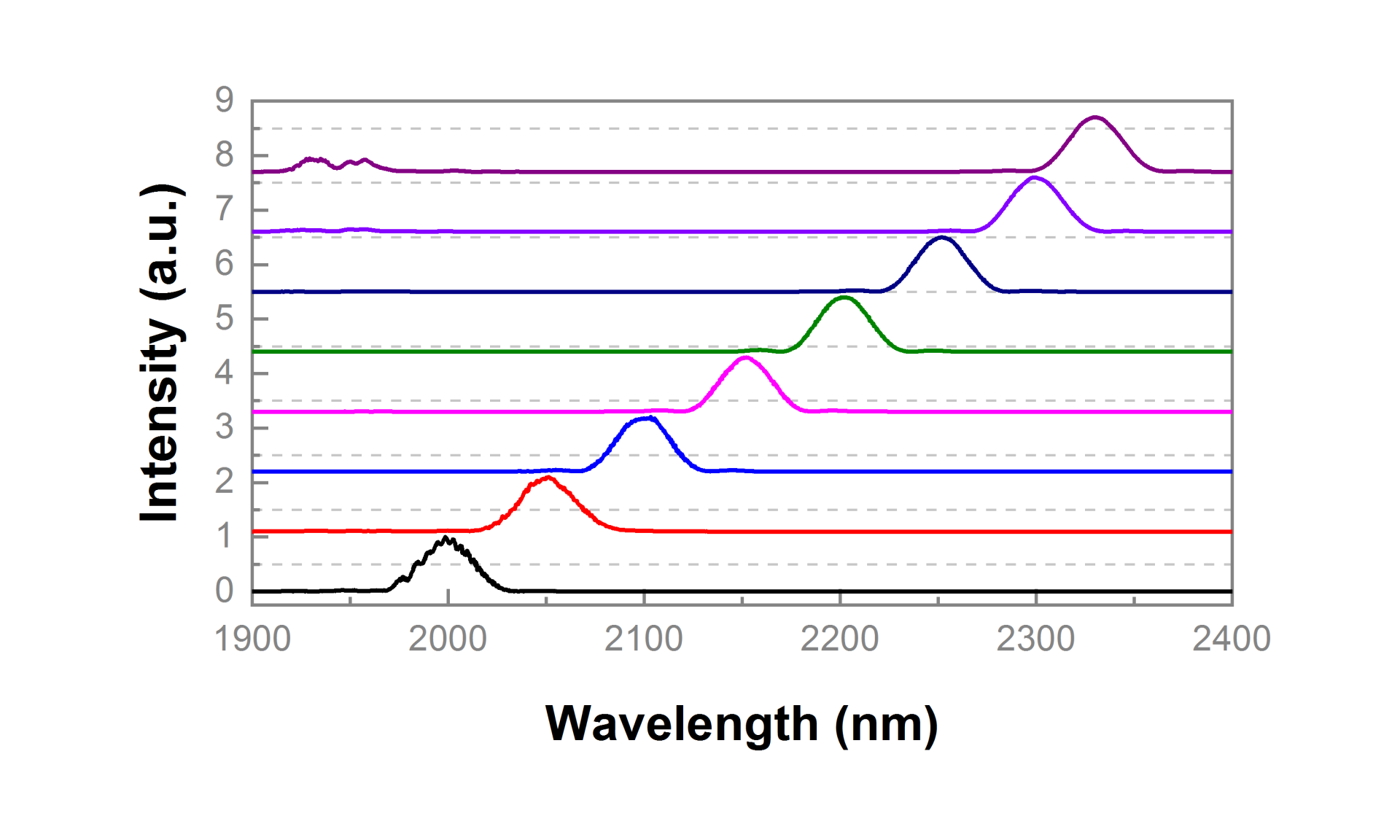

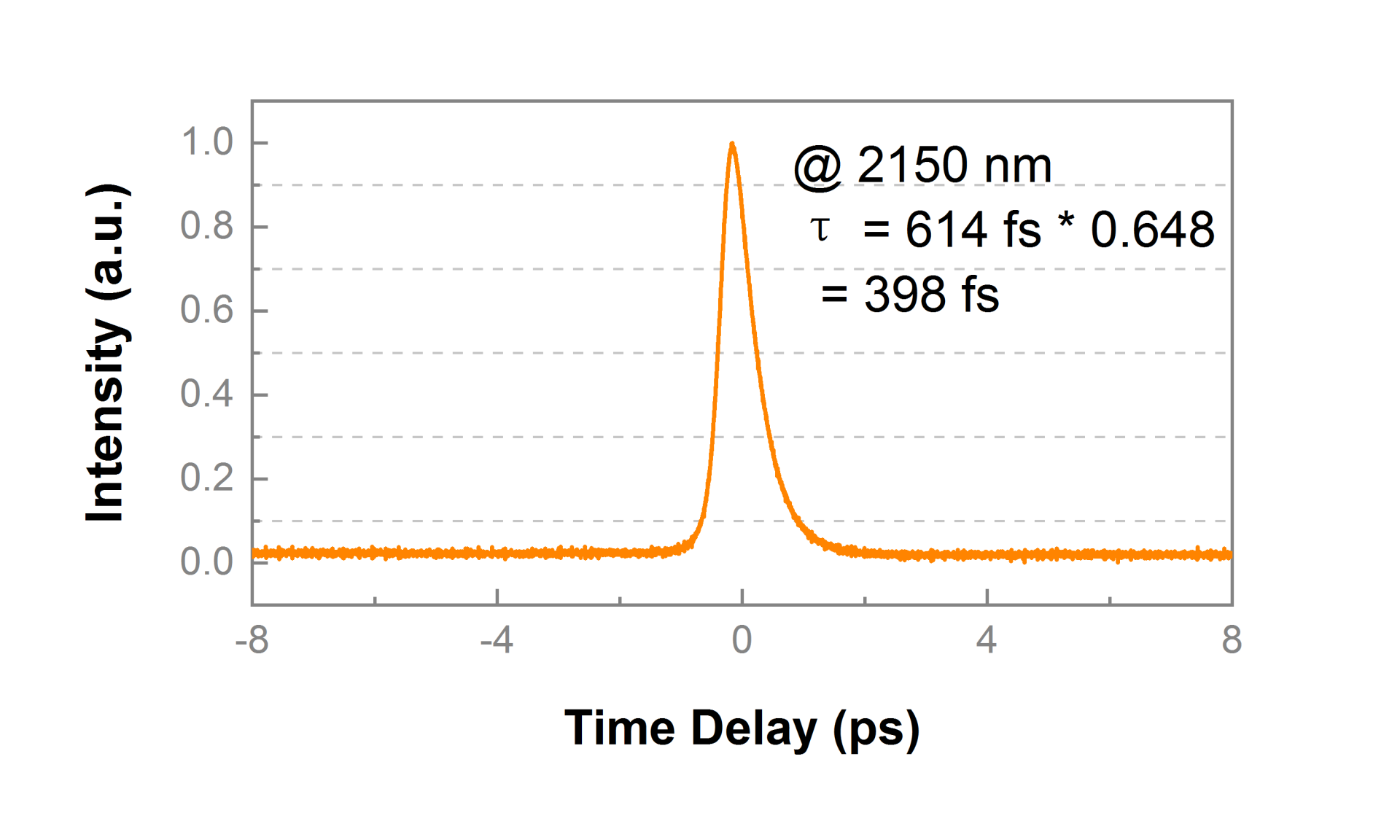

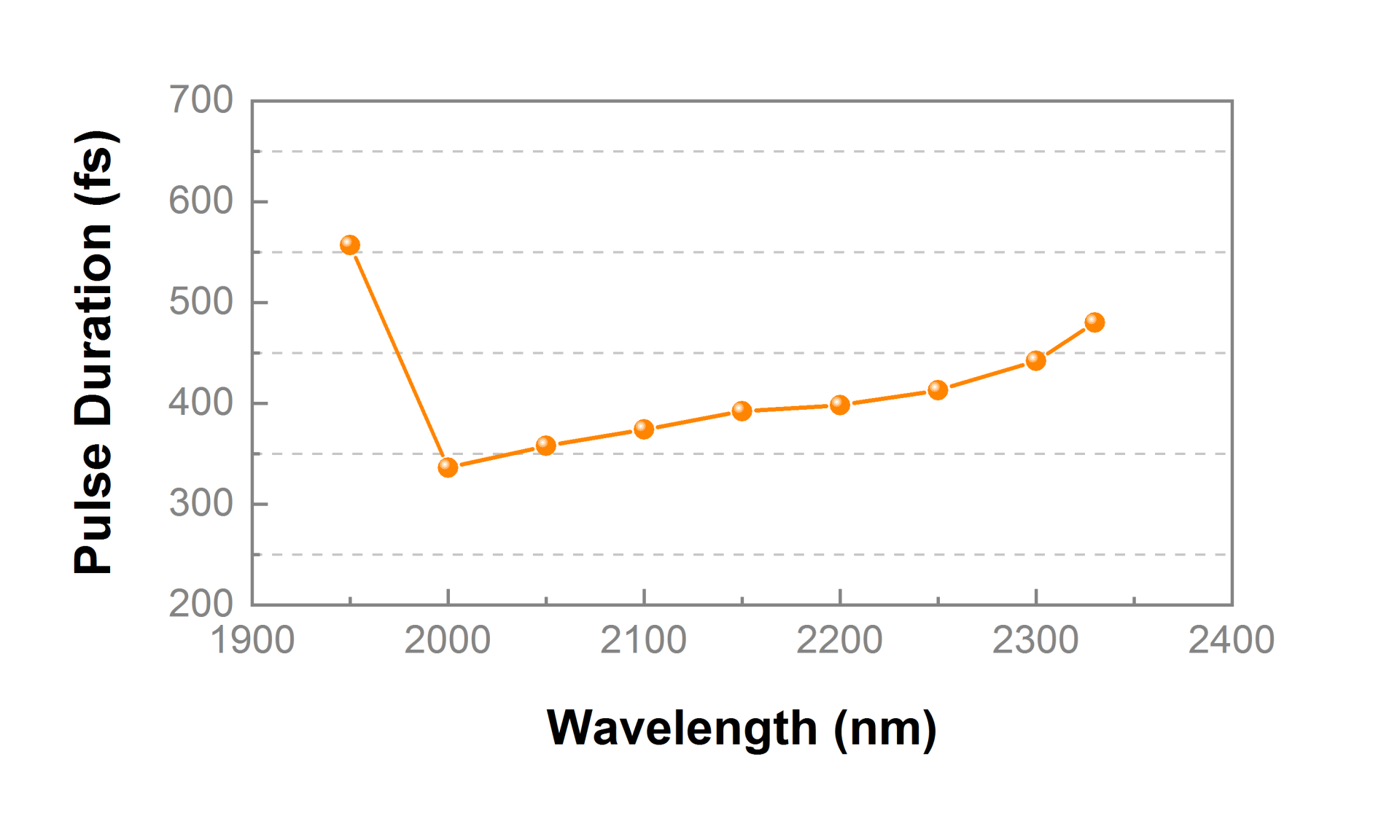

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: OPPO-SP Multichannel Broadband Tunable Ultrafast Fiber Laser
    • Commodity ID: 1041148025545515008

    OPPO-SP is a tunable fiber laser developed specifically for Silicon Photonics and mid-infrared ultrafast nonlinear photonics research. Compared with solid-state OPO systems, OPPO-SP has decisive advantages in terms of power and pulse energy in the range beyond 2000 nm, where two-photon absorption in silicon diminishes. In addition, the system is based on an all-fiber and modular architecture, featuring excellent stability, mode-quality and cost/performance ratio. </br></br> OPPO-SP is also used by customers working in the fields of mid-infrared supercontinuum generation, and infrared material spectroscopy.

    Laser Parameters

    Operating Wavelength

    2000-2300 nm

    Pulse width (FWHM)

    <500 fs

    Repetition Rate

    80 MHz

    Average Power

    		 >300 mW

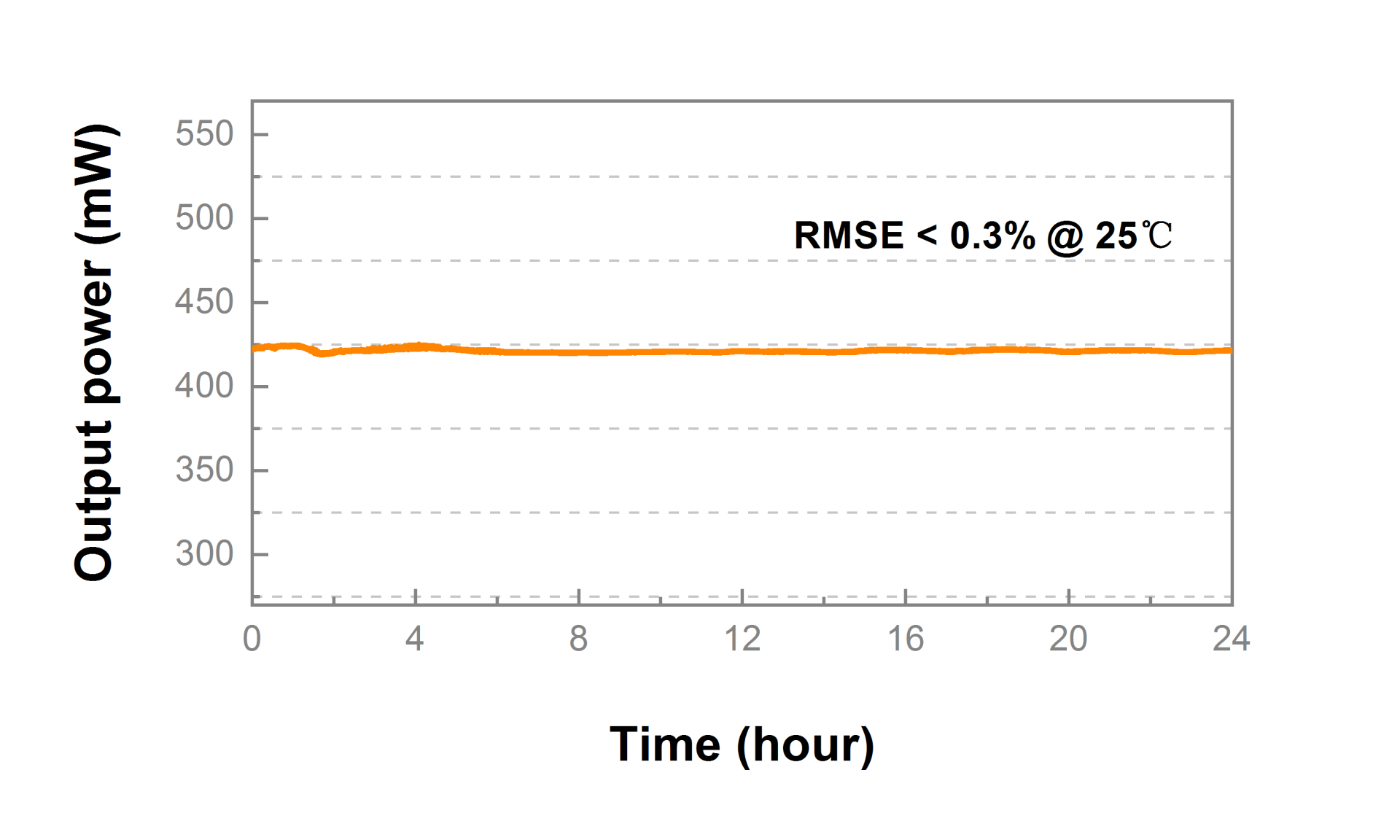

    Aerage Power Stability

    <0.5% RMS(12h@25℃)
    Pulse Energy

    >3.75 nJ
    Polarization Extinction Ratio

    >15 dB

    Output Type

    		 PM1550 Fiber,FC/APC Connector

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    17 Kg

    Dimensions

    391×298×115

    Cooling

     Air cooling

  •

  • Key Features：

    · Multi-channel, wavelength tunable

    · High peak power

    · Linearly polarization

    · Diffration limited beam

    · Turn-key system

    Applications：

    · Medium infrared spectrum

    · Pump-probe

    · Medium infrared femtosecond seed

    · Nonlinear optics

    · Silicon photonics

  • OPPO SP.pdf
