1550/780 nm Ultrafast Fiber Laser


Rainbow 1550 Dichro features a dual-port design and may provide high-power output at both 1550nm and 780nm simultaneously. It gives customers the ultimate flexibilities in constructing multi-purpose photonic systems. The proportion of 1550 and 780 output power can be customized upon user request. The laser is an easy-to-use turn-key system, and can also be computer controlled.

Rainbow 1550 Dichro is well-suited for scientific uses such as THz-TDS (time-domain terahertz generation), SHG/THG imaging, pump-probe spectroscopy and multi-photon imaging. It can meet a broad range of R&D requirements of the scientific community.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1550/780 nm Ultrafast Fiber Laser
    • Commodity ID: 1041148214935117824

    Rainbow 1550 Dichro features a dual-port design and may provide high-power output at both 1550nm and 780nm simultaneously. It gives customers the ultimate flexibilities in constructing multi-purpose photonic systems. The proportion of 1550 and 780 output power can be customized upon user request. The laser is an easy-to-use turn-key system, and can also be computer controlled.</br></br> Rainbow 1550 Dichro is well-suited for scientific uses such as THz-TDS (time-domain terahertz generation), SHG/THG imaging, pump-probe spectroscopy and multi-photon imaging. It can meet a broad range of R&D requirements of the scientific community.

    Laser Parameters

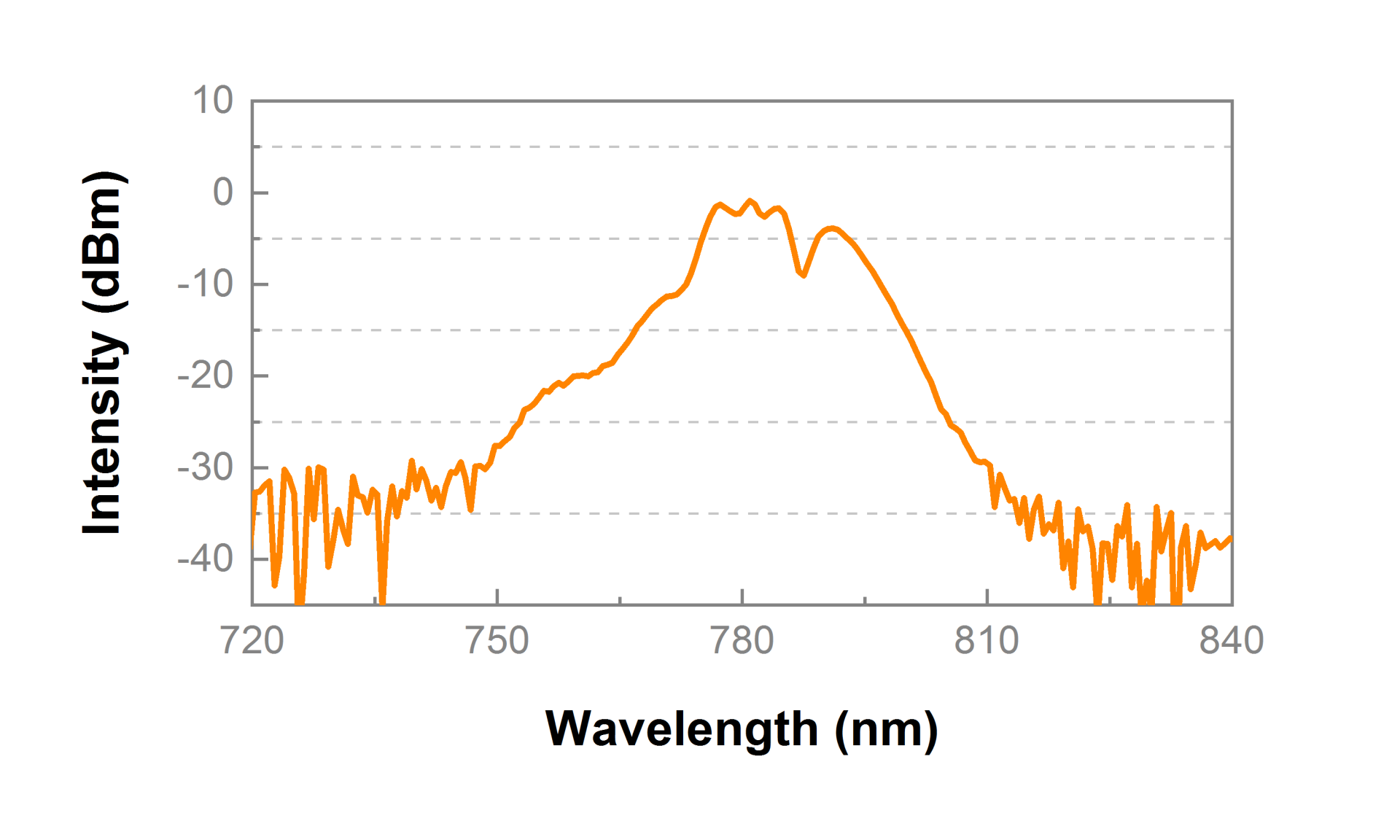

    Operating Wavelength

    1560±10 nm

    780±10 nm

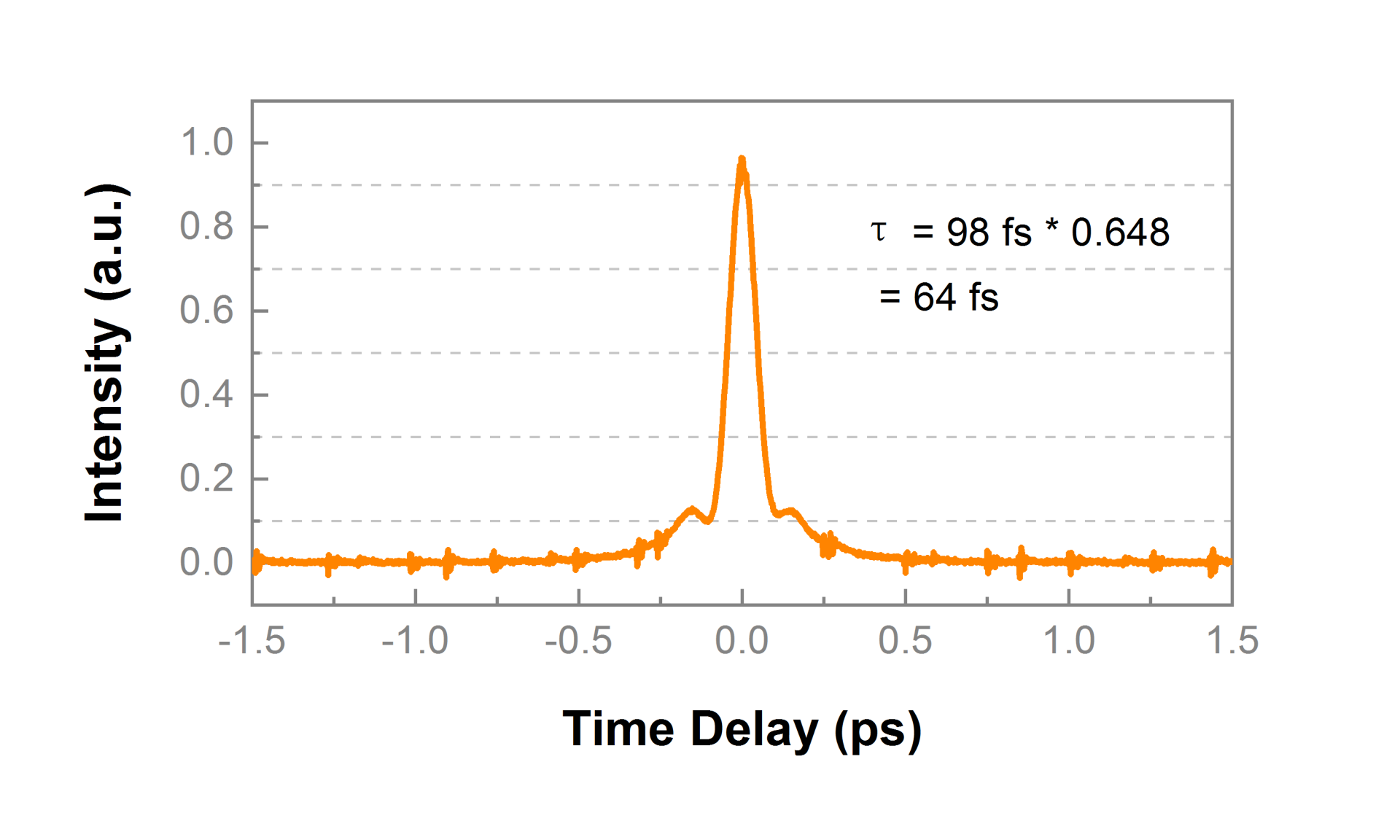

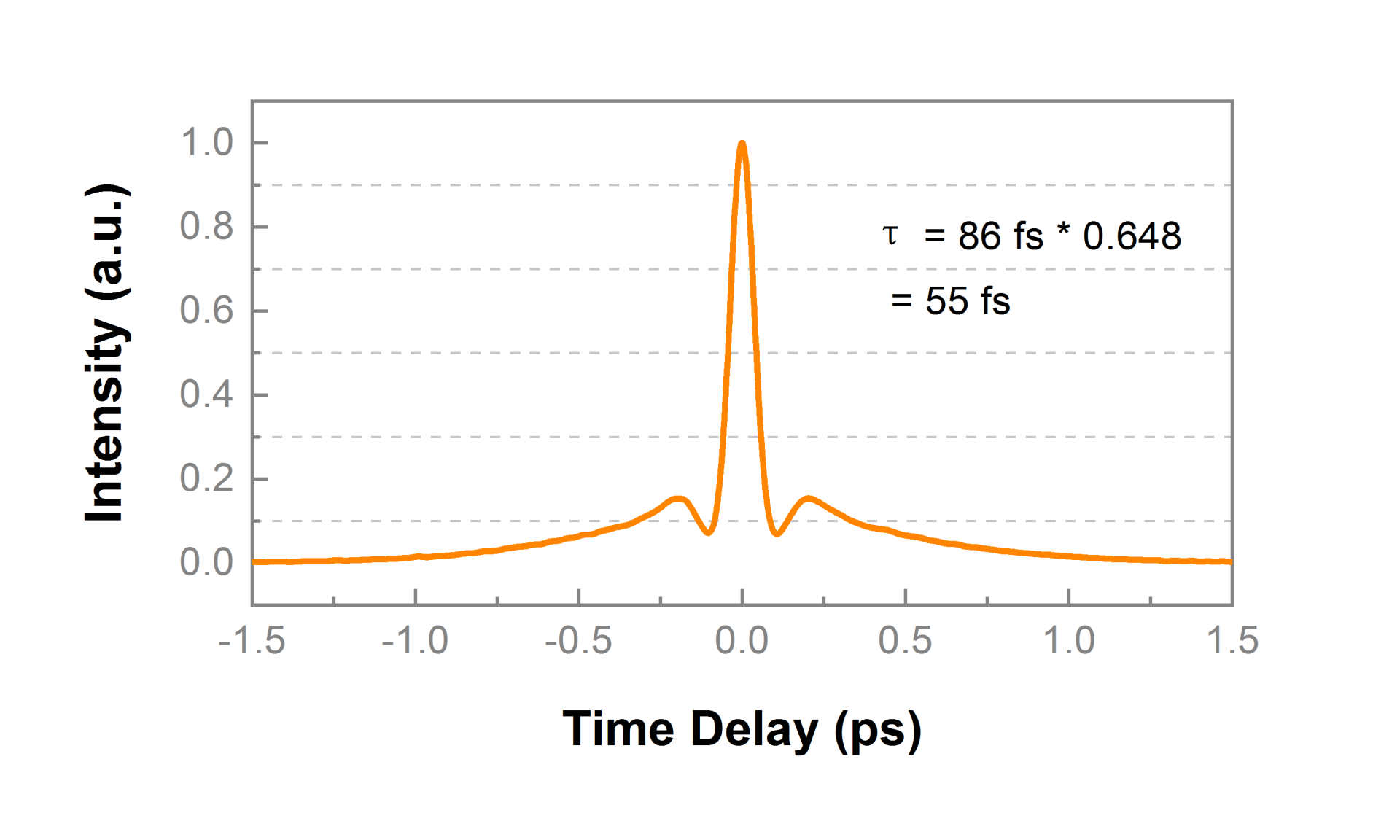

    Pulse width (FWHM)

    <80 fs

    <100 fs

    Repetition Rate

    80 MHz

    Average Power

    >100 mW >60 mW(Up to 90 mW)

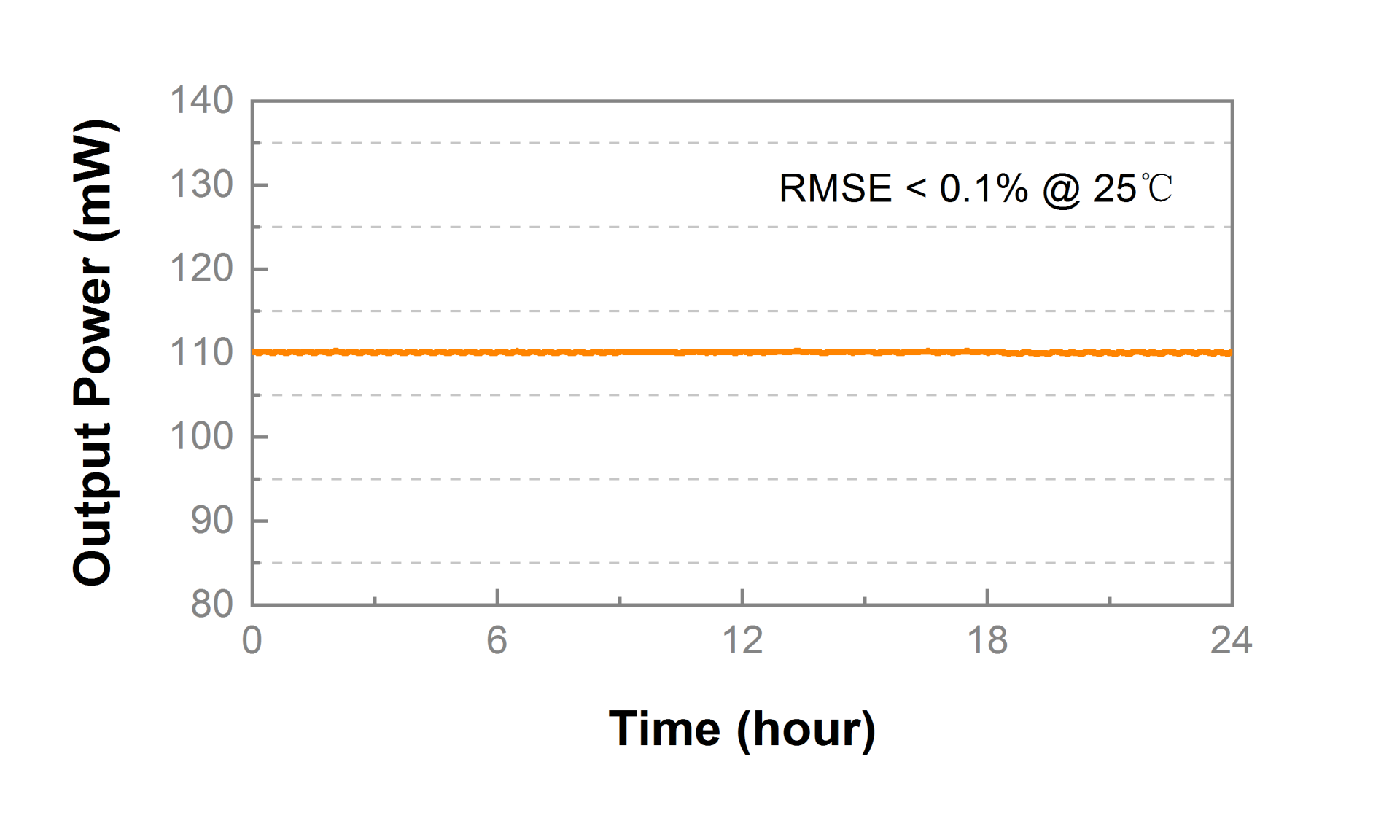

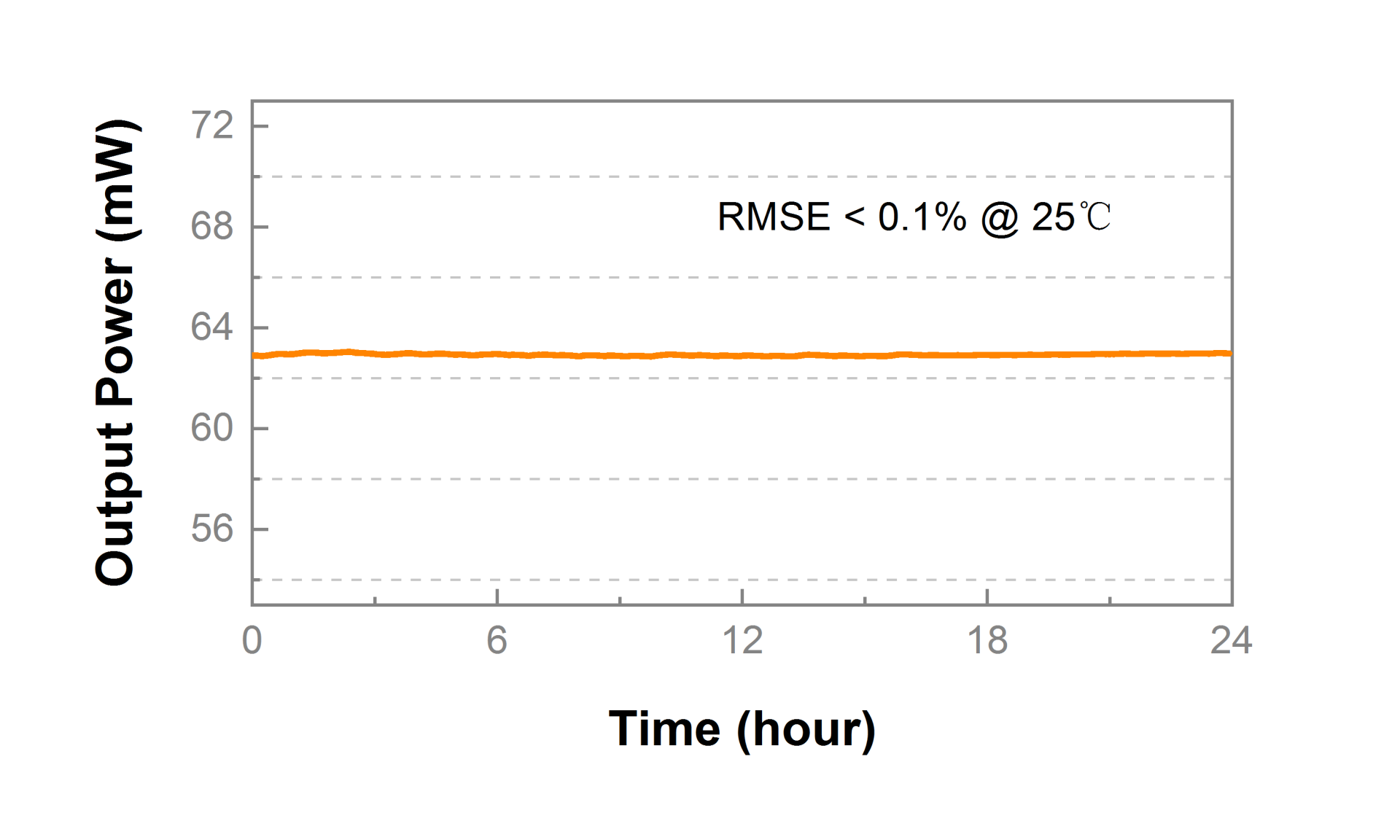

    Average Power Stability

    <0.5% RMS(12h@25℃)

    Pulse Energy

    >1.25 nJ

    >0.75 nJ
    Polarization Extinction Ratio

    >20 dB

    Output Type

    PM1550 Fiber,FC/APC Connector Spatial collimation output

    Electrical, Environmental and Mechanical Parameters



    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    17 kg

    Dimensions

    395×348×126 mm

    Cooling

     Air cooling

  •



  • Key Features:

    · Double wavelength outputs

    · High peak power

    · Linear polarization

    · Diffration-limited beam

    Applications:

    · SHG imaging

    · Two-photon Polymerization

    · Multiphoton imaging

    · Terahertz generation
