1064/532 nm Ultrafast Fiber Laser


Rainbow 1064 Dichro features a dual-port design and may provide high-power output at both 1064nm and 532nm simultaneously. It gives customers the ultimate flexibilities in constructing multi-purpose photonic systems. The proportion of 1064 and 532 output power can be customized upon user request. The laser is an easy-to-use turn-key system, and can also be computer controlled.

Rainbow 1064 Dichro is ideal for materials research such as TCSPC, SHG/THG imaging, pump-probe spectroscopy, and other nonlinear optical applications. It can meet a broad range of R&D requirements of the photonics and materials research community

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1064/532 nm Ultrafast Fiber Laser
    • Commodity ID: 1041148163882049536

    Rainbow 1064 Dichro features a dual-port design and may provide high-power output at both 1064nm and 532nm simultaneously. It gives customers the ultimate flexibilities in constructing multi-purpose photonic systems. The proportion of 1064 and 532 output power can be customized upon user request. The laser is an easy-to-use turn-key system, and can also be computer controlled.</br></br> Rainbow 1064 Dichro is ideal for materials research such as TCSPC, SHG/THG imaging, pump-probe spectroscopy, and other nonlinear optical applications. It can meet a broad range of R&D requirements of the photonics and materials research community

    Laser Parameters



    Operating Wavelength

    1030-1064 nm

    515-532 nm

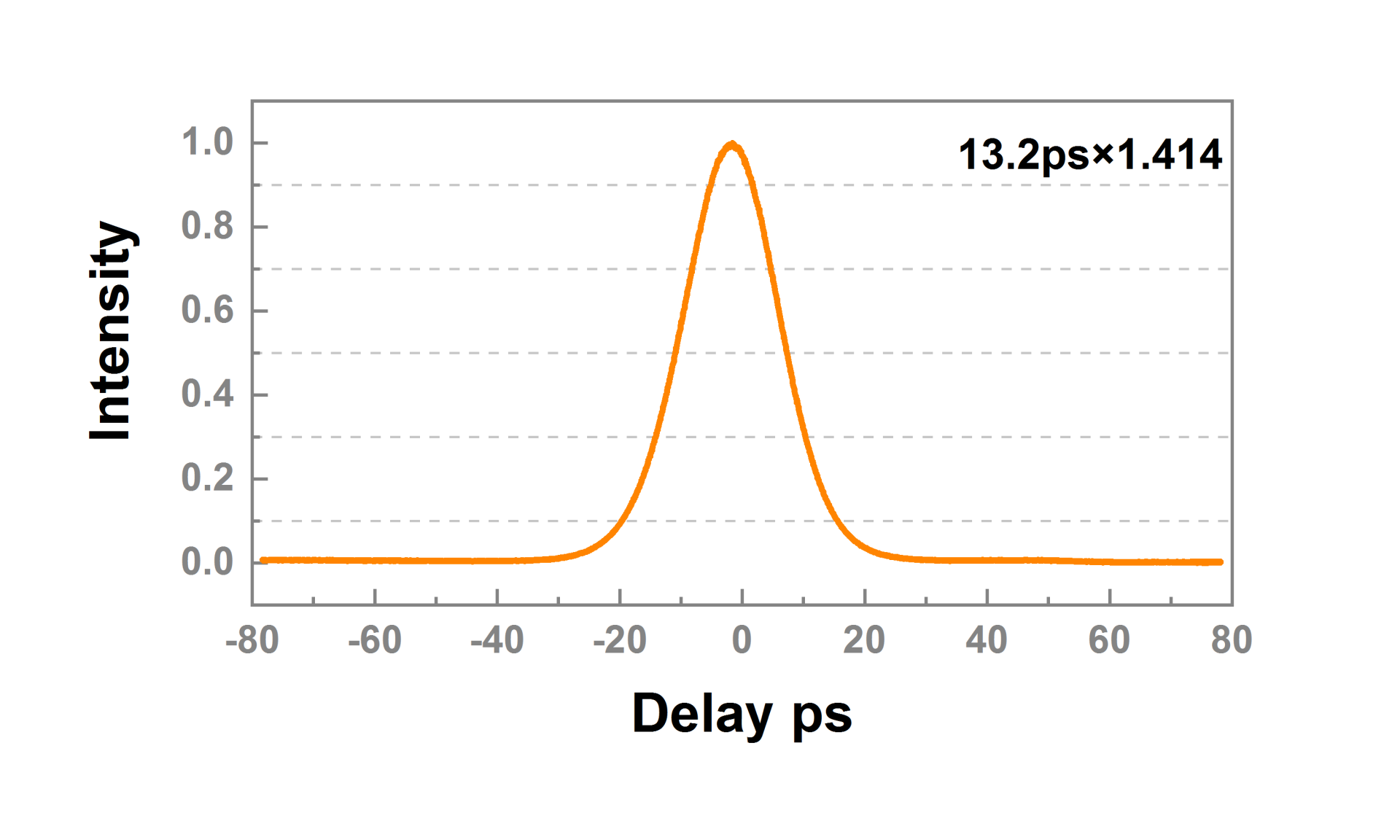

    Pulse width (FWHM)

    <15 ps

    Repetition Rate

    20-50 MHz

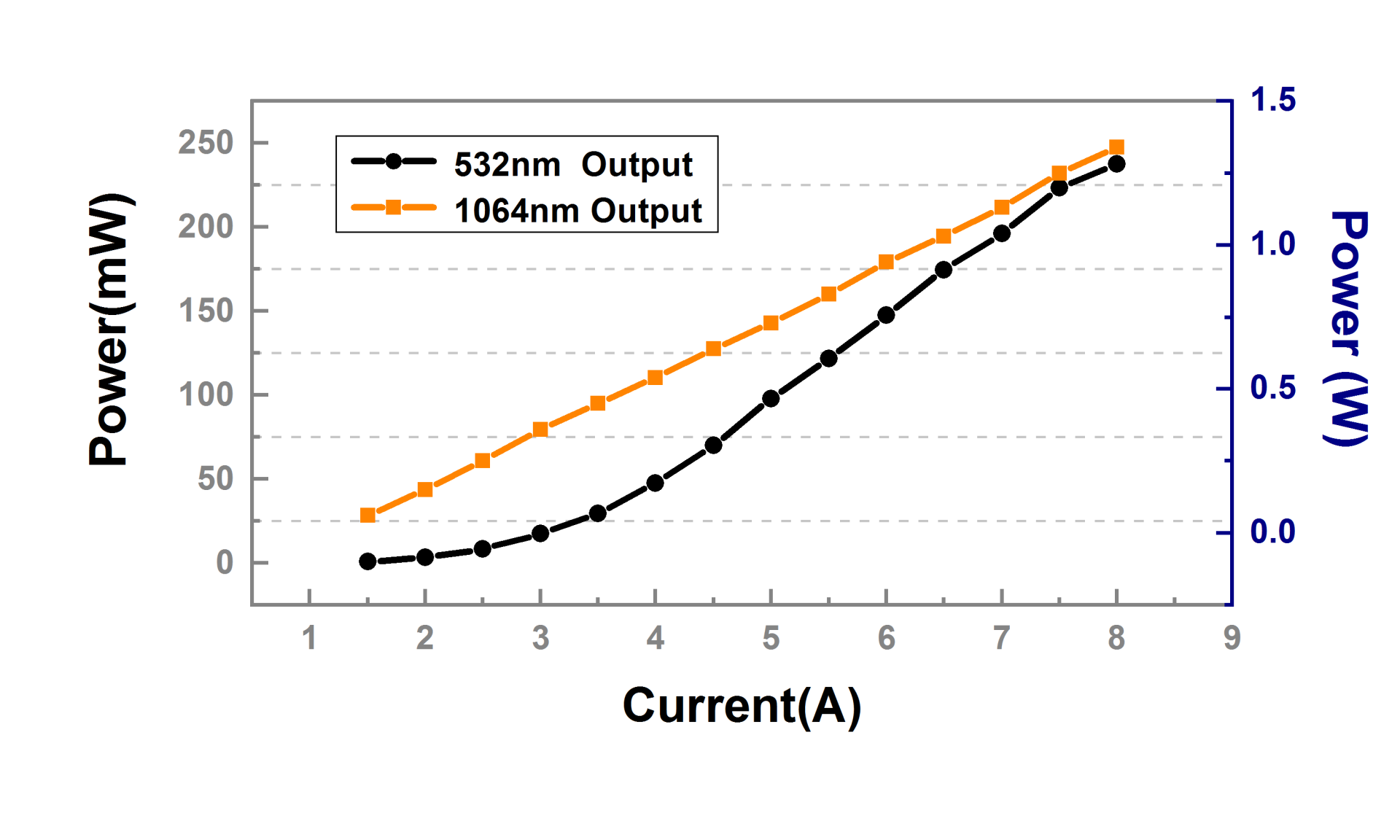

    Average Power

    1 W 700 mW

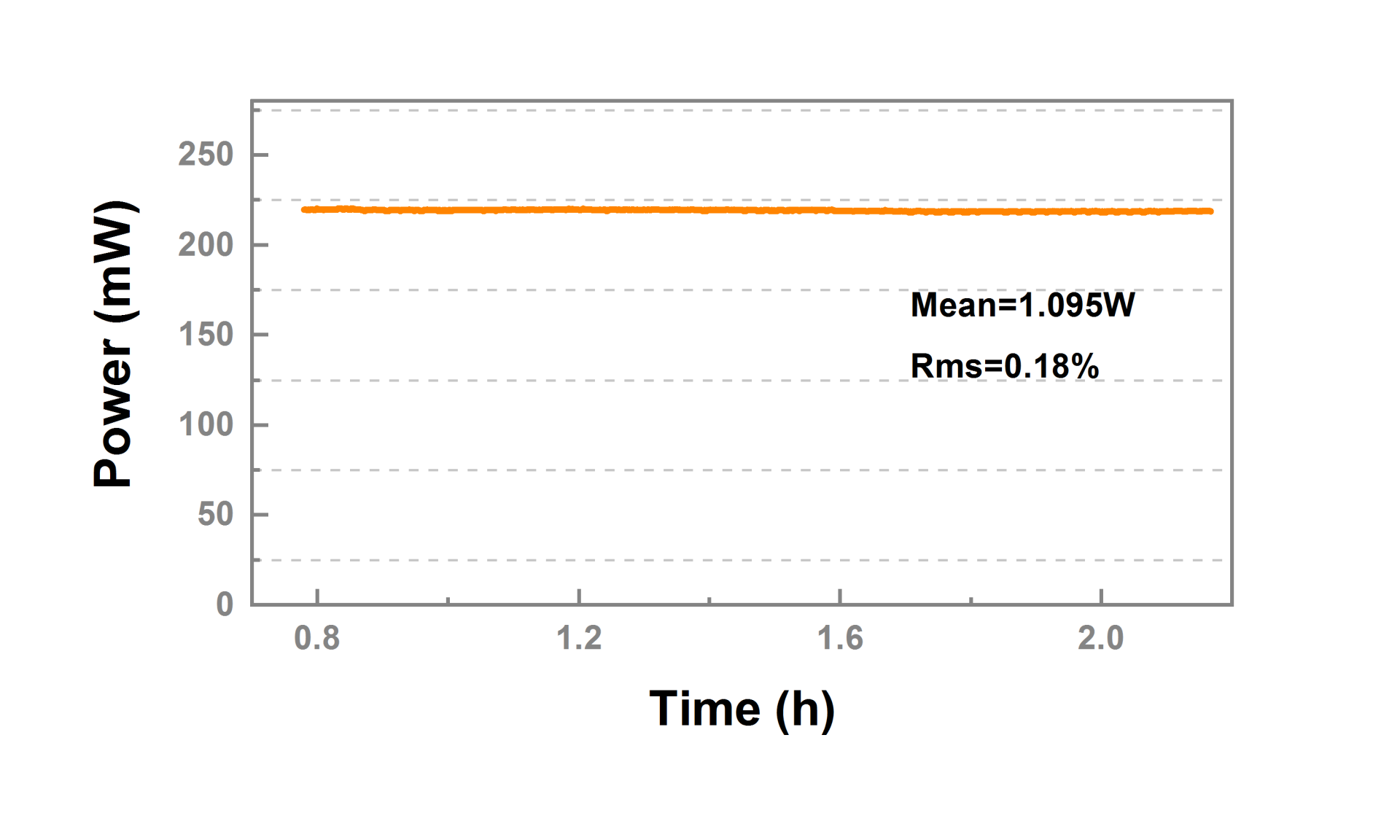

    Average Power Stability

    <0.5% RMS(12h@25℃)

    Polarization Extinction Ratio

    >20 dB

    Beam Quality

    M2<1.1

    TEM00

    Output Type

    Collimated output, beam diameter <2mm

    Electrical, Environmental and Mechanical Parameters



    Supply Voltage

    100-240 VAC

    12 VDC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    17 Kg

    8 Kg

    Dimensions

    387×298×115

    436×186×135.5

    Cooling

     Air cooling

  • Key Features:

    · Double wavelength output

    · High peak power

    · Linear polarization

    · Diffration-limited beam

    Applications:

    · SHG imaging

    · Two-photon Polymerization

    · Multiphoton imaging

    · Time-resolved fluorescence
