2000 nm Ultrafast Fiber Laser


Rainbow 2000 Pro is a thulium-fiber based high-performance ultrafast fiber laser specifically designed for scientific users and has flexible parameters upon user requests. It has a center wavelength of 1970±10 nm, a pulse width of 200 fs (15 ps Optional), repetition rate of 80MHz, and an average output power of 200mW (4W Optional)

Rainbow 2000 Pro is based on SESAM passive locking technology and has an all-PM fiber structure. It uses NPI Lasers' proprietary optical switch packaging technology, and integrates with NPI Lasers' unique "Smart-Lock" processes to ensure long-term stability and reliability. The laser is an easy-to-use turn-key system, and can also be computer controlled.

Rainbow 2000 Pro is well-suited for applications such as Mid-IR frequency conversion, Nonlinear optics and Silicon photonics. It can meet a broad range of R&D requirements of the scientific community.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 2000 nm Ultrafast Fiber Laser
    • Commodity ID: 1041148113823031296

    Rainbow 2000 Pro is a thulium-fiber based high-performance ultrafast fiber laser specifically designed for scientific users and has flexible parameters upon user requests. It has a center wavelength of 1970±10 nm, a pulse width of 200 fs (15 ps Optional), repetition rate of 80MHz, and an average output power of 200mW (4W Optional)</br></br> Rainbow 2000 Pro is based on SESAM passive locking technology and has an all-PM fiber structure. It uses NPI Lasers' proprietary optical switch packaging technology, and integrates with NPI Lasers' unique "Smart-Lock" processes to ensure long-term stability and reliability. The laser is an easy-to-use turn-key system, and can also be computer controlled.</br></br> Rainbow 2000 Pro is well-suited for applications such as Mid-IR frequency conversion, Nonlinear optics and Silicon photonics. It can meet a broad range of R&D requirements of the scientific community.

    Laser Parameters

    Operating Wavelength

    1970±10 nm

    Pulse width (FWHM)

    200 fs, 15 ps

    Repetition Rate

    80 MHz

    Average Power

    200 mW(200 fs), 4 W(15 ps)
    Average Power Stability

    <0.5% RMS(12h@25℃)

    Pulse Energy

    2.5 nJ(200 fs), 50 nJ(15 ps)

    Polarization Extinction Ratio

    >20 dB

    Output Type

    PM1550 Fiber,FC/APC Connector(200fs), Free-space(15ps)

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    7 Kg

    Dimensions

    387×298×115

    Cooling

     Air cooling

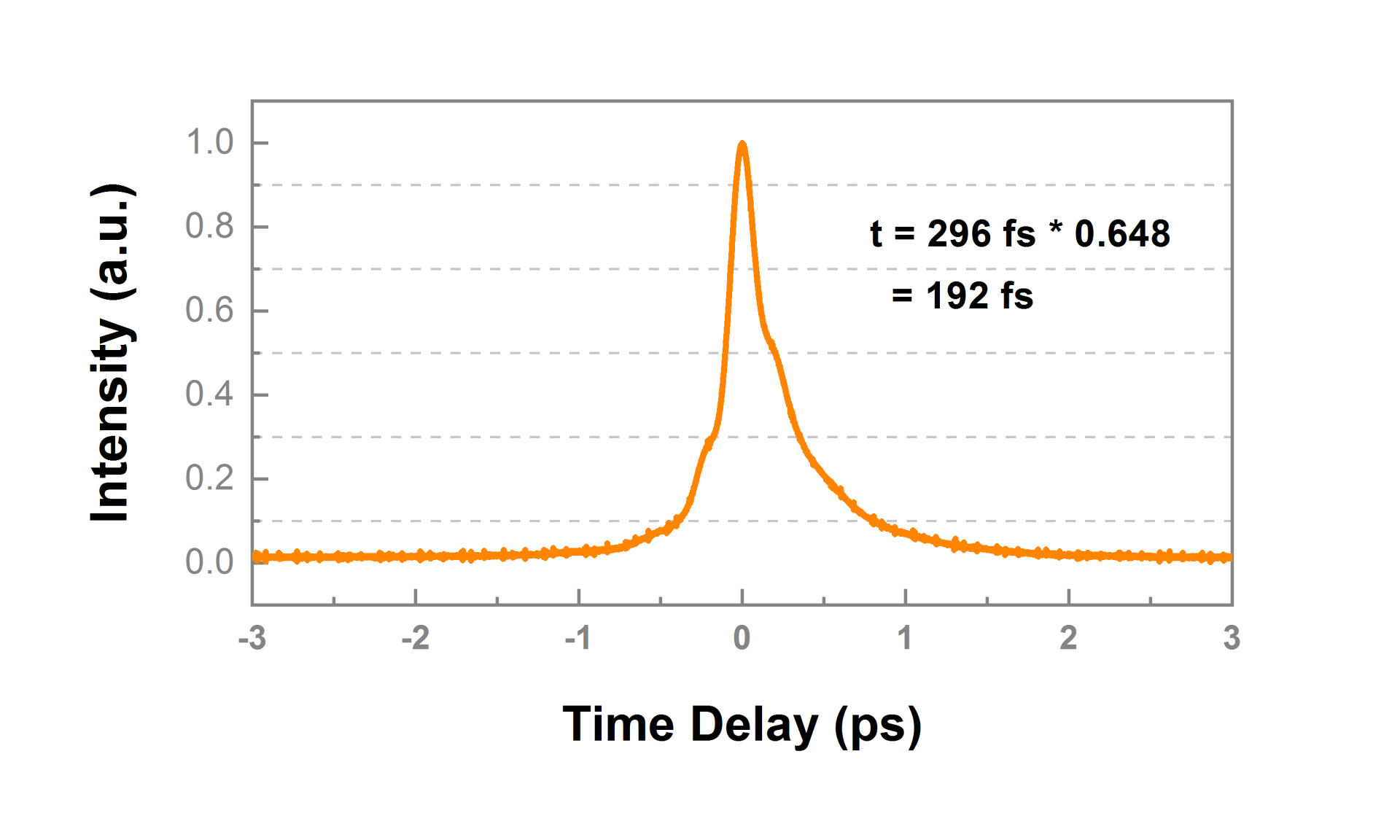

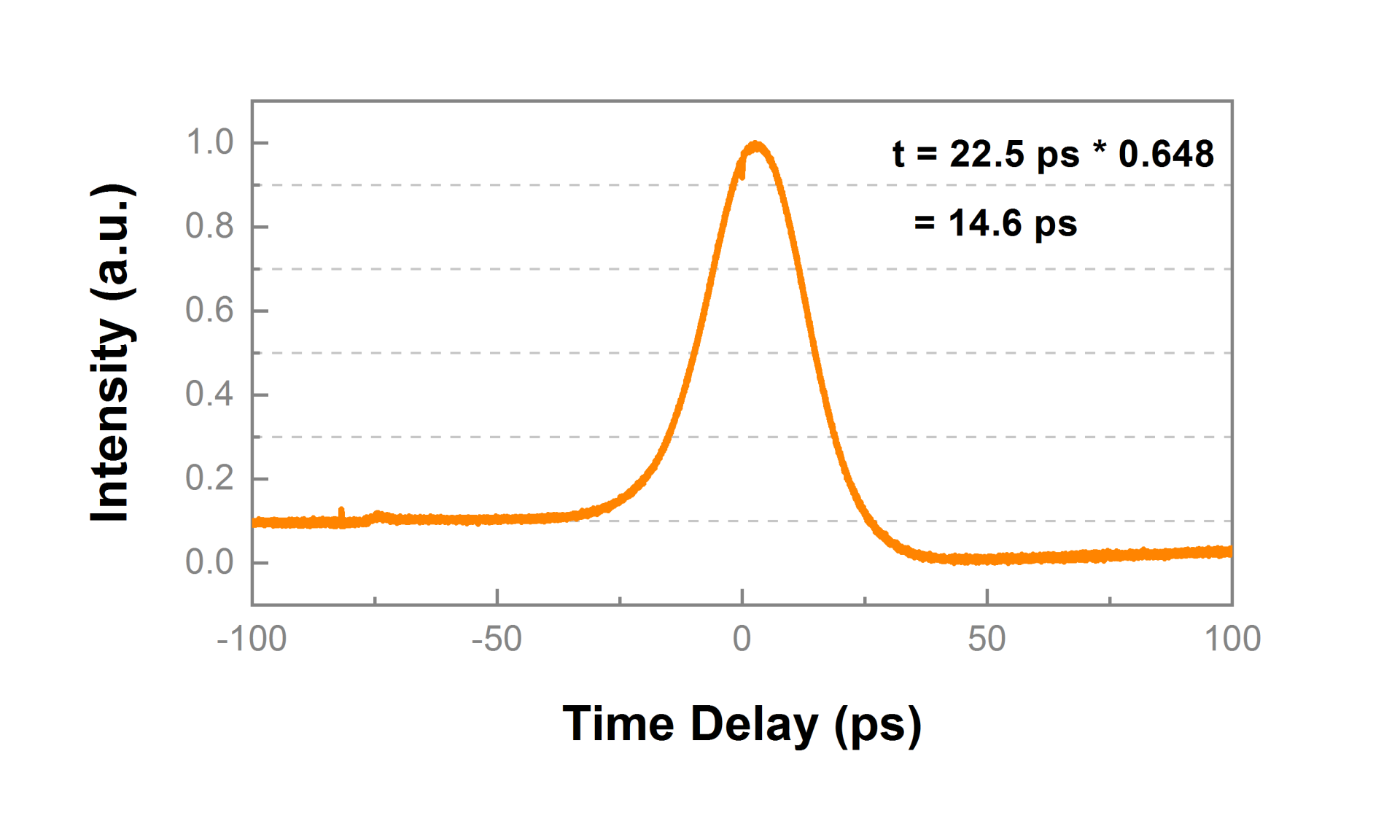

  •                       Typical autocorrelation trace@200fs                                           Typical autocorrelation trace@15ps

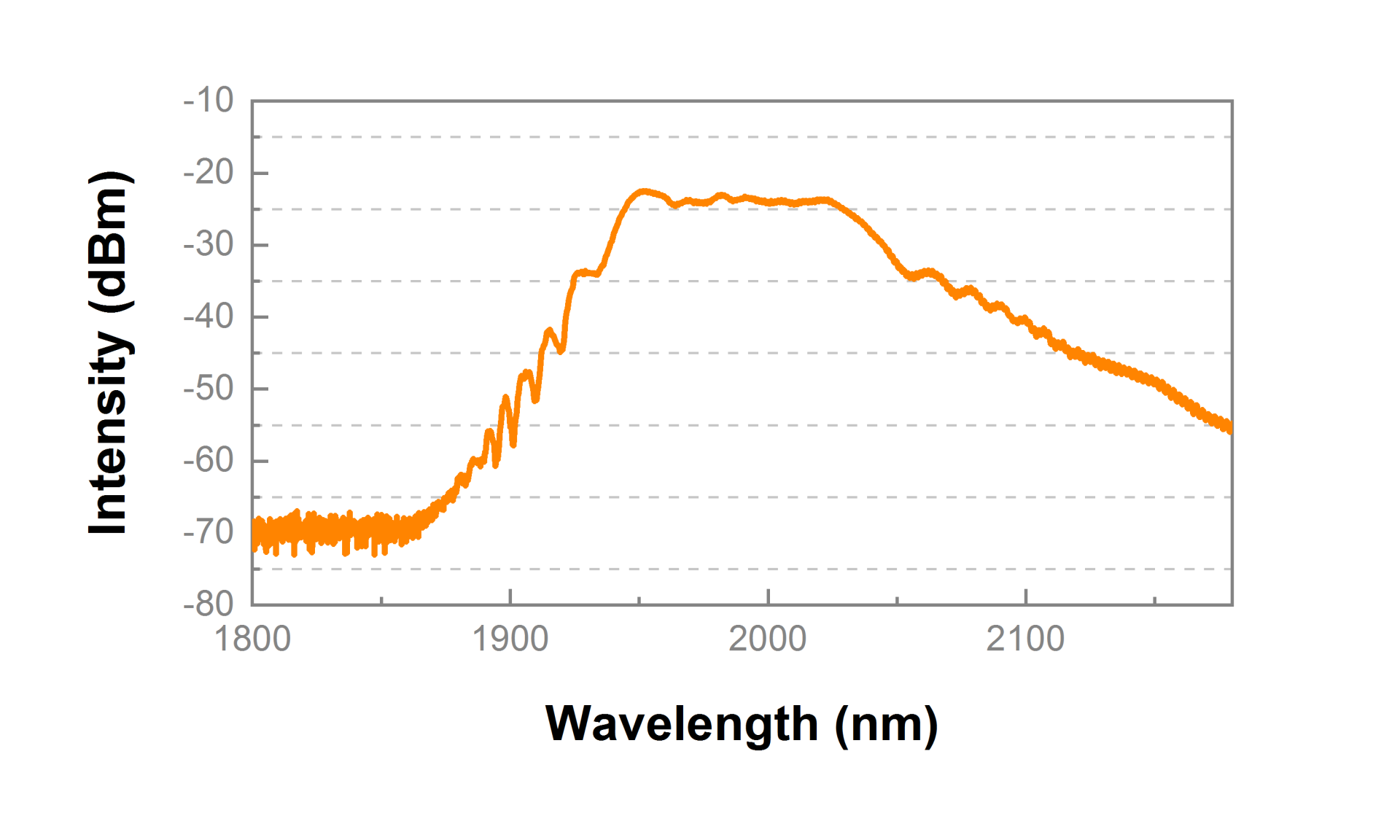

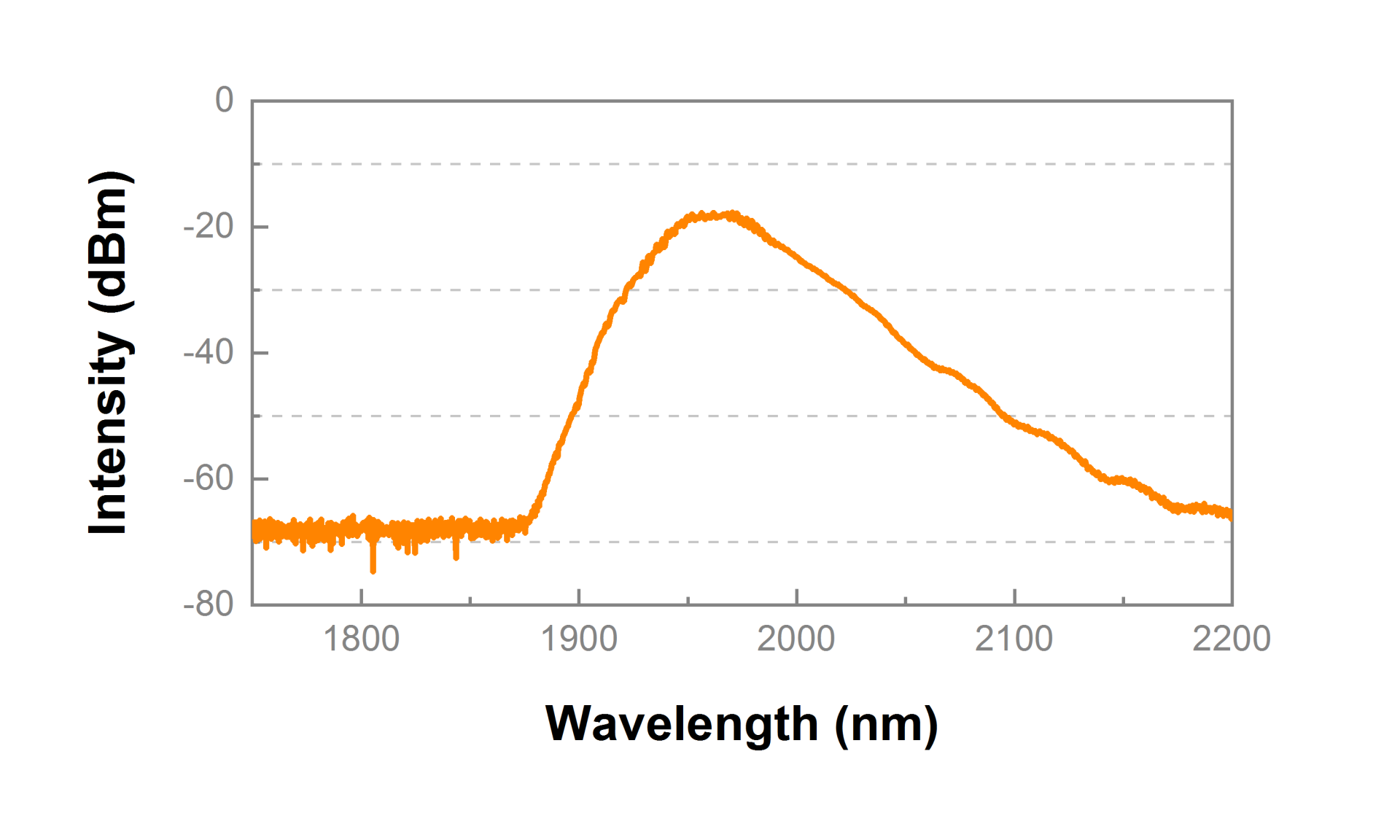

                                      Output spectrum@200fs                                                           Output spectrum@15ps

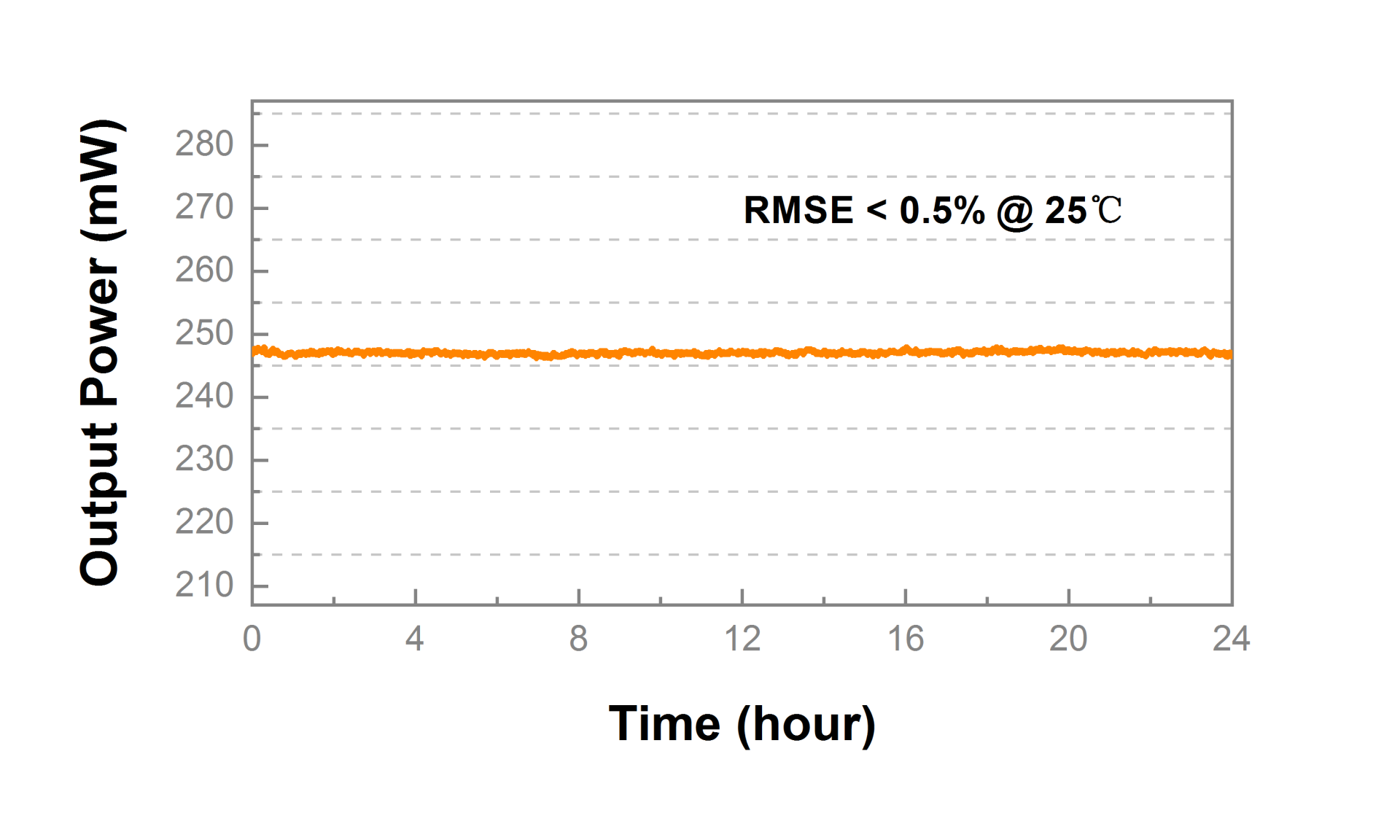

                               Average power stability@200fs                                             Average power stability@15ps

  • Key Features:

    · Customizable wavelength

    · Femtosecond level

    · Linear polarization

    · Diffration-limited beam

    Applications:

    · Mid-IR Frequency Conversion

    · Nonlinear optics

    · Mid-IR spectroscopy

    · Silicon photonics
