1550 nm Ultrafast Fiber Laser


Rainbow 1550 Pro is an Er-fiber based high-performance ultrafast fiber laser specifically designed for scientific users and has flexible parameters upon user requests. The laser has an operating wavelength of 1560±10nm, pulse width of ≤80fs, repetition rate of 80MHz and an average power up to 200mW.

Rainbow 1550 Pro is based on SESAM passive locking technology and has an all-PM fiber structure. It uses NPI Lasers' proprietary optical switch packaging technology, and integrates NPI Lasers' unique "Smart-Lock" processes to ensure long-term stability and reliability. The laser is an easy-to-use turn-key system, and can also be computer controlled. As a newest feature, the repetition rate of Rainbow 1550 Pro can be locked to an ultra-stable frequency reference to achieve a repetition rate deviation as small as <10mHz (the “LOCK” option).

Rainbow 1550 Pro is well-suited for scientific uses such as THz-TDS (time-domain terahertz generation), SHG/THG imaging and multi-photon imaging. It can meet a broad range of R&D requirements of the scientific community.

product details

  • Detail

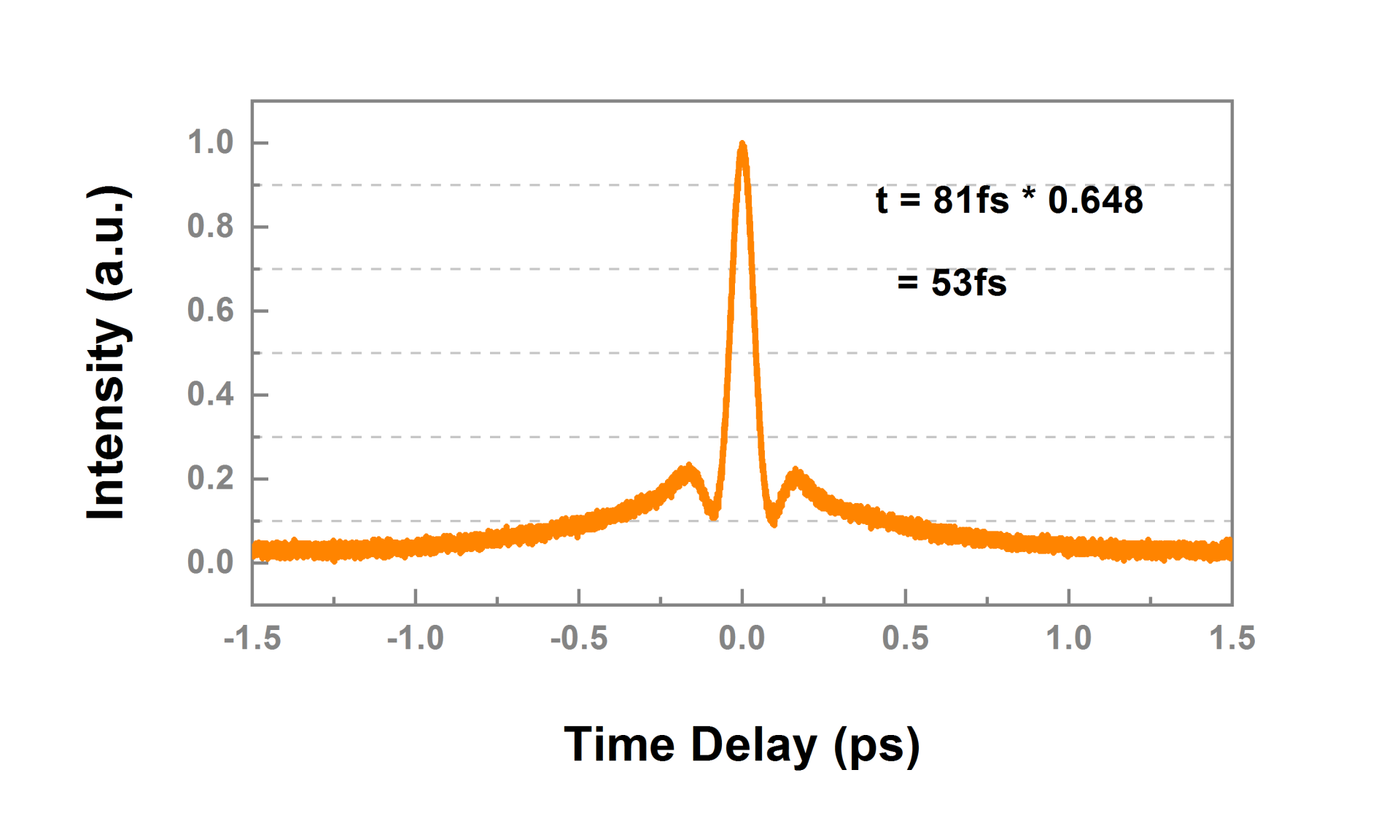

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1550 nm Ultrafast Fiber Laser
    • Commodity ID: 1041148069317271552

    Rainbow 1550 Pro is an Er-fiber based high-performance ultrafast fiber laser specifically designed for scientific users and has flexible parameters upon user requests. The laser has an operating wavelength of 1560±10nm, pulse width of ≤80fs, repetition rate of 80MHz and an average power up to 200mW.</br></br> Rainbow 1550 Pro is based on SESAM passive locking technology and has an all-PM fiber structure. It uses NPI Lasers' proprietary optical switch packaging technology, and integrates NPI Lasers' unique "Smart-Lock" processes to ensure long-term stability and reliability. The laser is an easy-to-use turn-key system, and can also be computer controlled. As a newest feature, the repetition rate of Rainbow 1550 Pro can be locked to an ultra-stable frequency reference to achieve a repetition rate deviation as small as <10mHz (the “LOCK” option).</br></br> Rainbow 1550 Pro is well-suited for scientific uses such as THz-TDS (time-domain terahertz generation), SHG/THG imaging and multi-photon imaging. It can meet a broad range of R&D requirements of the scientific community.

    Laser Parameters

    Operating Wavelength

    1560±10 nm

    Pulse width (FWHM)

    <80 fs

    Repetition Rate

    80 MHz

    Average Power

    >200 mW
    Average Power Stability

    <0.5% RMS(12h@25℃)

    Pulse Energy

    >1.25 nJ

    Polarization Extinction Ratio

    >20 dB

    Output Type

    PM1550 Fiber,FC/APC Connector

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    7 Kg

    Dimensions

    387×298×115

    Cooling

     Air cooling

  •

  • Key Features:

    · Customizable wavelength

    · Femtosecond level

    · Linear polarization

    · Diffration-limited beam

    Applications:

    · Terahertz generation

    · Precision measurement

    · Two-photon polymerization

    · Two-photon imaging
