1064 nm Ultrafast Fiber Laser


Rainbow 1064 Pro is a Yb-fiber based high-performance ultrafast fiber laser specifically designed for scientific users and has flexible parameters upon user requests. The laser has pulse width of <15ps, repetition rate range between 20~50MHz and an average power up to 1W. The operating wavelength can be customized in the range of 1064±2 nm.

Rainbow 1064 Pro is based on SESAM passive locking technology and has an all-PM fiber structure. It uses NPI Lasers' proprietary optical switch packaging technology, and integrates NPI Lasers' unique "Smart-Lock" processes to ensure long-term stability and reliability. The laser is an easy-to-use turn-key system, and can also be computer controlled.

Rainbow 1064 Pro is well-suited for scientific uses such as high-power laser amplification, super-continuum generation, OPA pumping, time-resolved fluorescence excitation. It can meet a broad range of R&D requirements of the scientific community.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1064 nm Ultrafast Fiber Laser
    • Commodity ID: 1041147605062344704

    Rainbow 1064 Pro is a Yb-fiber based high-performance ultrafast fiber laser specifically designed for scientific users and has flexible parameters upon user requests. The laser has pulse width of <15ps, repetition rate range between 20~50MHz and an average power up to 1W. The operating wavelength can be customized in the range of 1064±2 nm. </br></br> Rainbow 1064 Pro is based on SESAM passive locking technology and has an all-PM fiber structure. It uses NPI Lasers' proprietary optical switch packaging technology, and integrates NPI Lasers' unique "Smart-Lock" processes to ensure long-term stability and reliability. The laser is an easy-to-use turn-key system, and can also be computer controlled.</br></br> Rainbow 1064 Pro is well-suited for scientific uses such as high-power laser amplification, super-continuum generation, OPA pumping, time-resolved fluorescence excitation. It can meet a broad range of R&D requirements of the scientific community.

    Laser Parameters

    Operating Wavelength

    1064±2 nm

    Spectral Width

    <1.5 nm

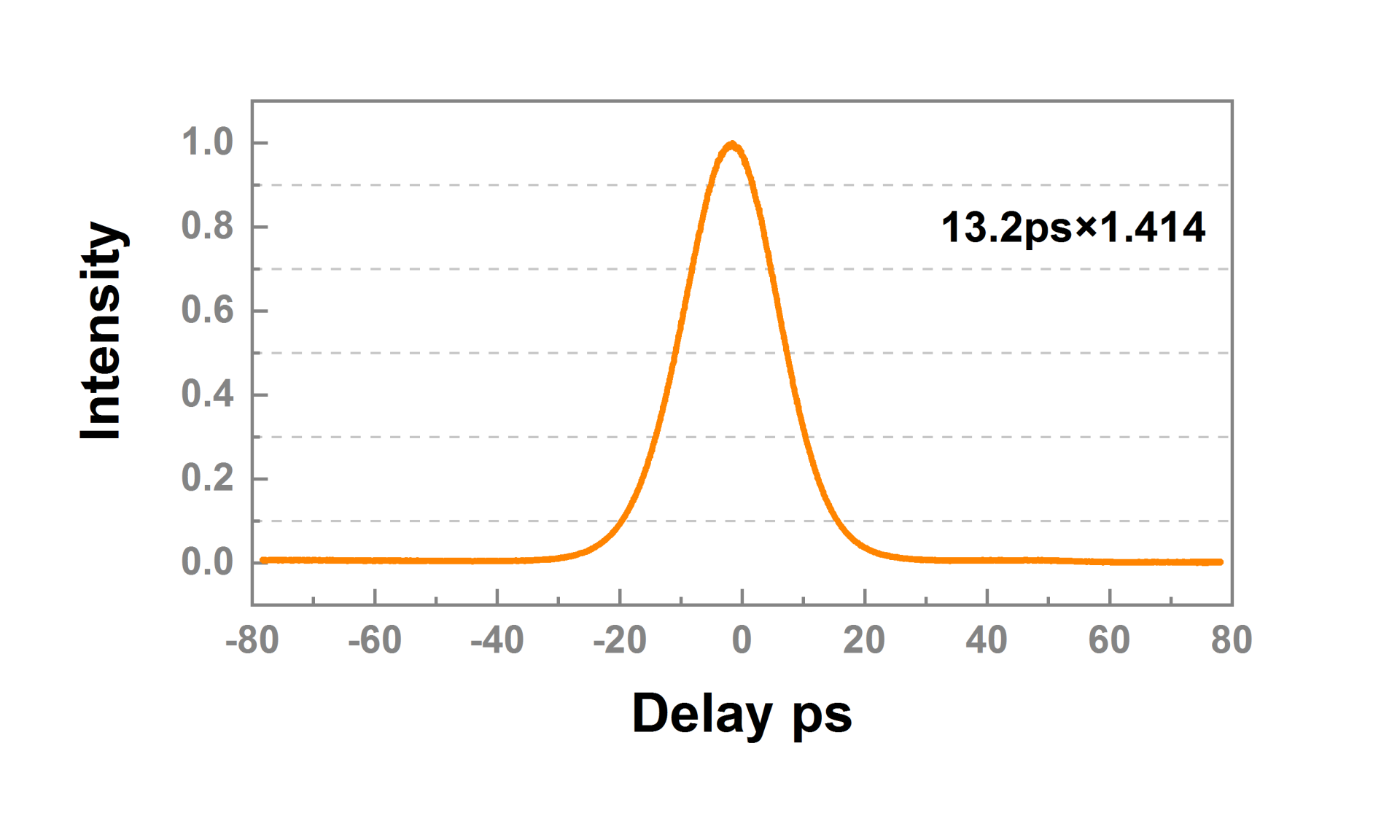

    Pulse width (FWHM)

    <15 ps

    Repetition Rate

    20-50 MHz(Typical 30 MHz)
    Average Power

    >1 W

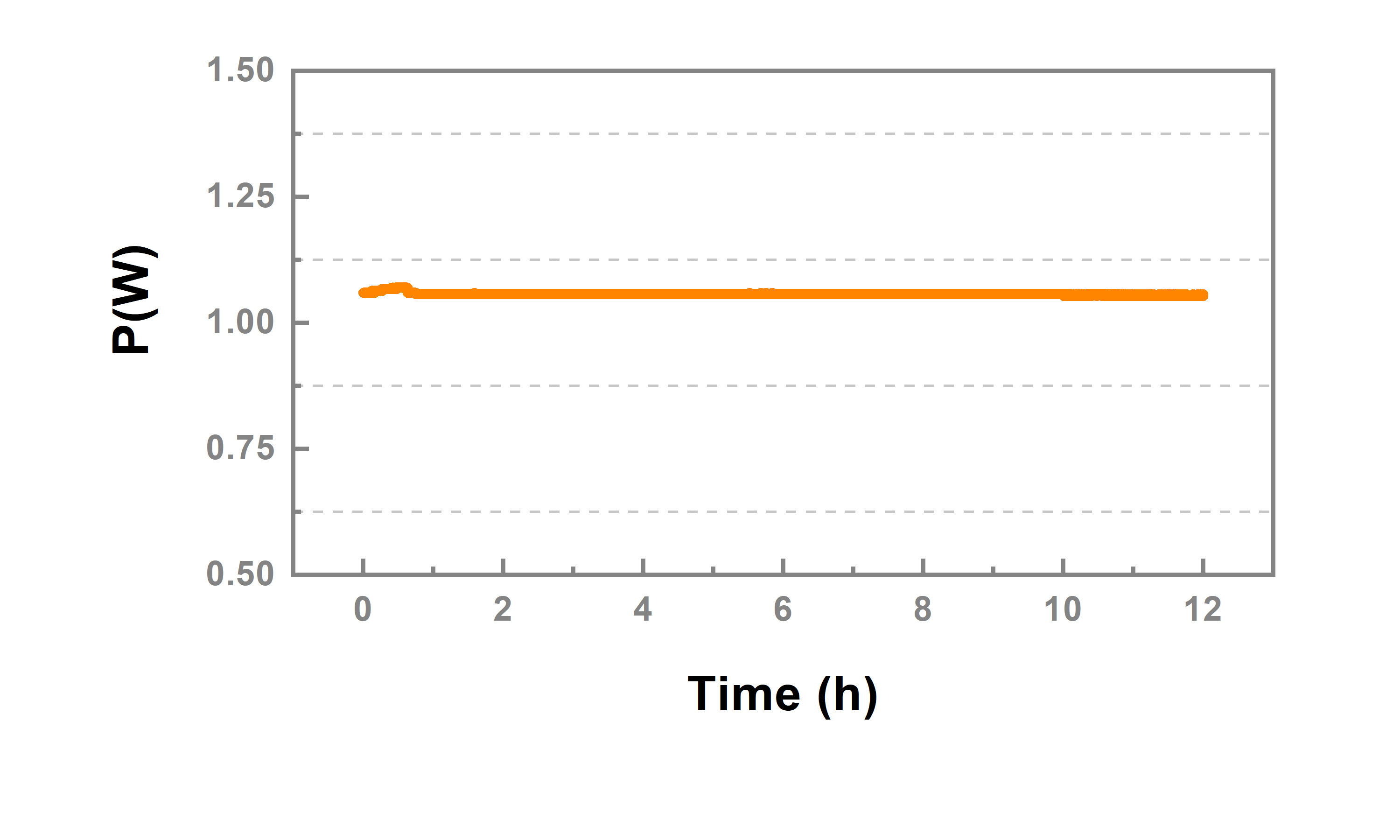

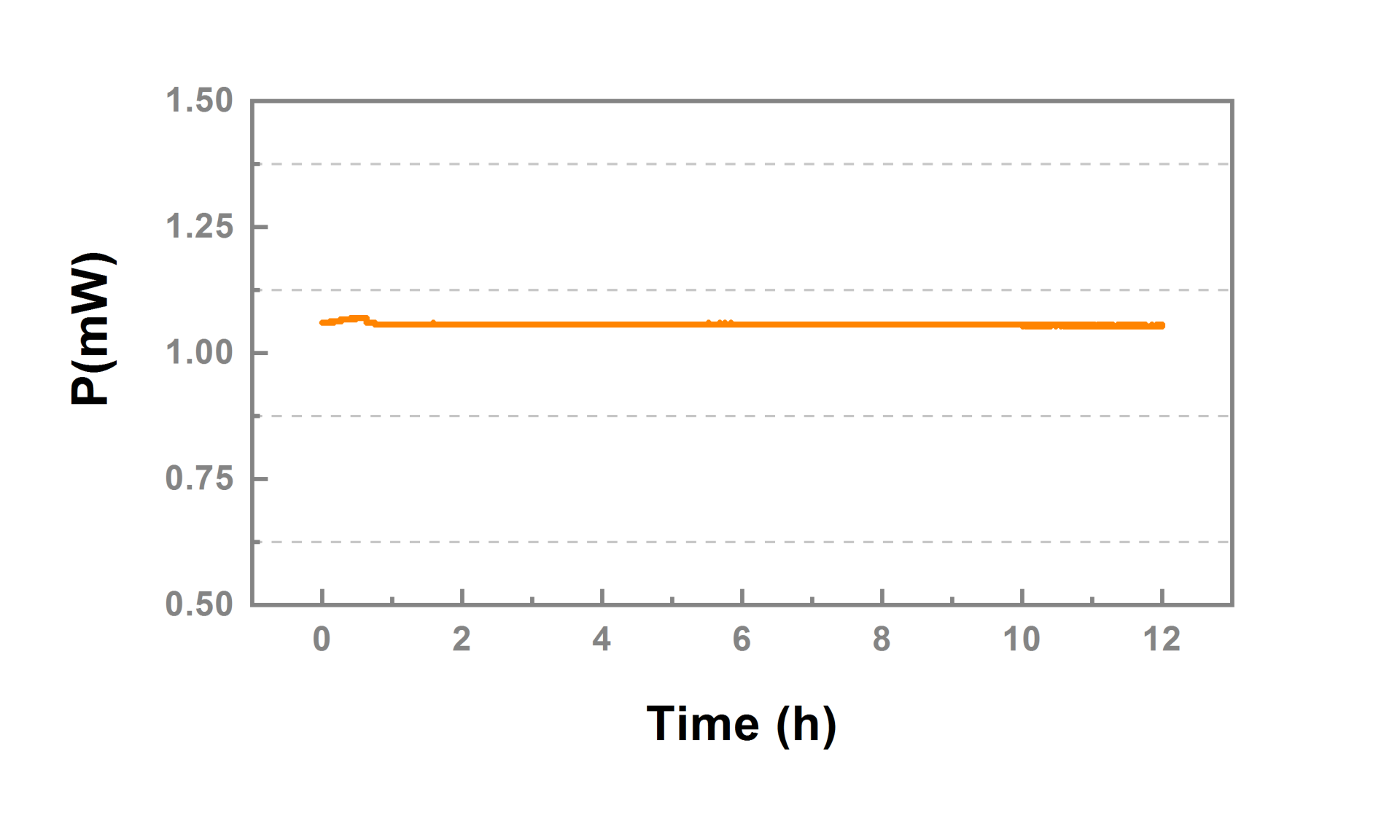

    Average Power Stability

    <0.5% RMS(12h@25℃)

    Polarization Extinction Ratio

    >20 dB

    Output Type

    With collimator, spot diameter <2mm

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    7 kg

    Dimensions

    395×298×115 mm

    Cooling

     Air cooling





  • Key Features:

    · Customizable wavelength

    · Picosecond level

    · Linear polarization

    · Diffration-limited beam

    Applications:

    · OPA pump

    · Pump-probe

    · Laser ranging

    · Supercontinuum generation
