1μm fs Fiber Laser Seed


Blade series 1um femtosecond mode-locked fiber seed laser is developed and manufactured solely by NPI Lasers.

Blade series 1um femtosecond mode-locked fiber seed laser adopts a SESAM based oscillator structure with PM fiber. It uses NPI Lasers' own optical switch packaging technology, and integrates NPI Lasers' unique "Smart-Lock" processing and characterization technologies to ensure stability and reliability. The laser has synchronous output via TTL port and DB9 connector is available for I/O control; it also supports remote control from PC. The laser is equipped with one button power switch, and is compact and maintenance-free.

Blade series 1um femtosecond mode-locked fiber seed laser is suitable for any round-the-clock industrial use cases and other commercial applications.

product details

  • Detail

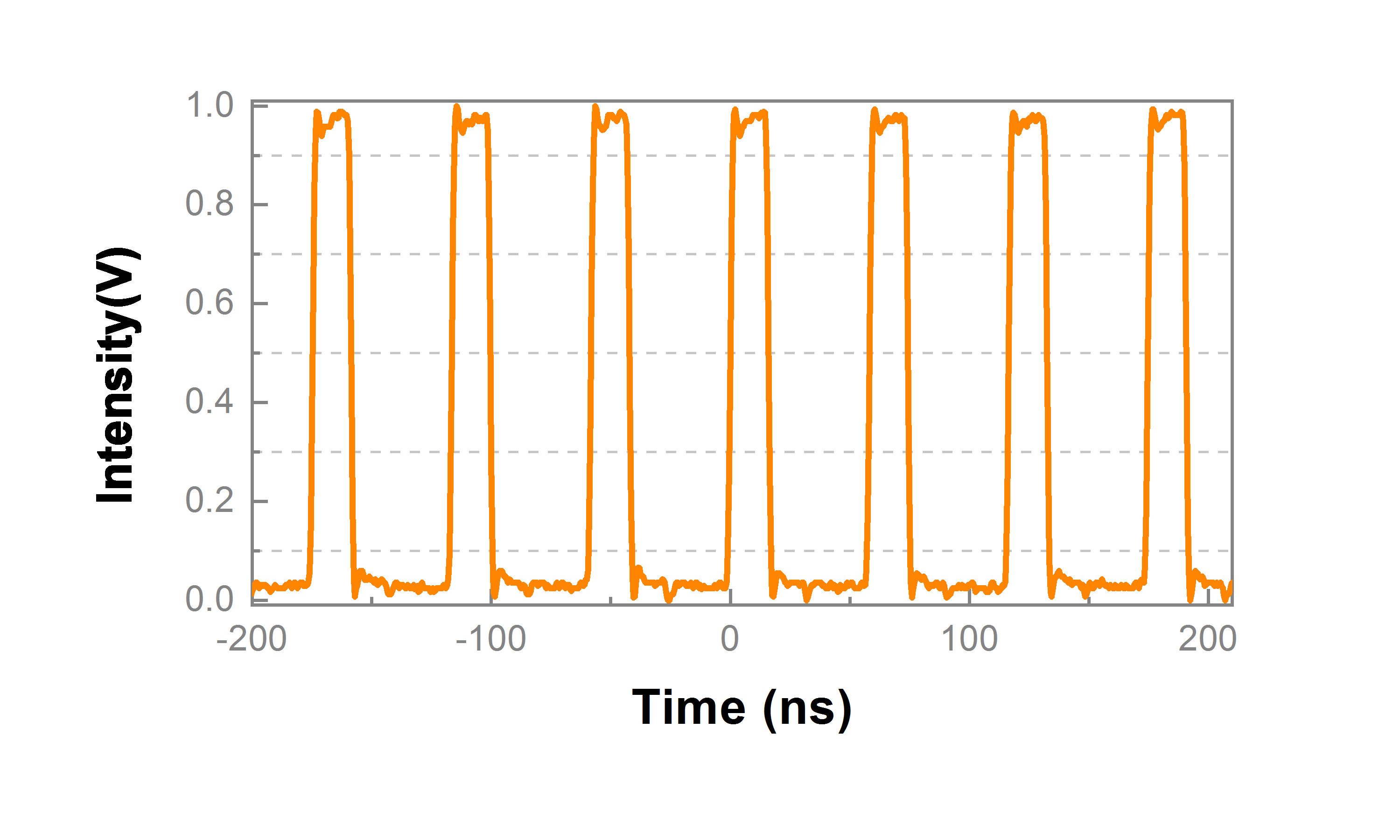

  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1μm fs Fiber Laser Seed
    • Commodity ID: 1041148307553738752

    Blade series 1um femtosecond mode-locked fiber seed laser is developed and manufactured solely by NPI Lasers. </br></br> Blade series 1um femtosecond mode-locked fiber seed laser adopts a SESAM based oscillator structure with PM fiber. It uses NPI Lasers' own optical switch packaging technology, and integrates NPI Lasers' unique "Smart-Lock" processing and characterization technologies to ensure stability and reliability. The laser has synchronous output via TTL port and DB9 connector is available for I/O control; it also supports remote control from PC. The laser is equipped with one button power switch, and is compact and maintenance-free. </br></br> Blade series 1um femtosecond mode-locked fiber seed laser is suitable for any round-the-clock industrial use cases and other commercial applications.

    Laser Parameters

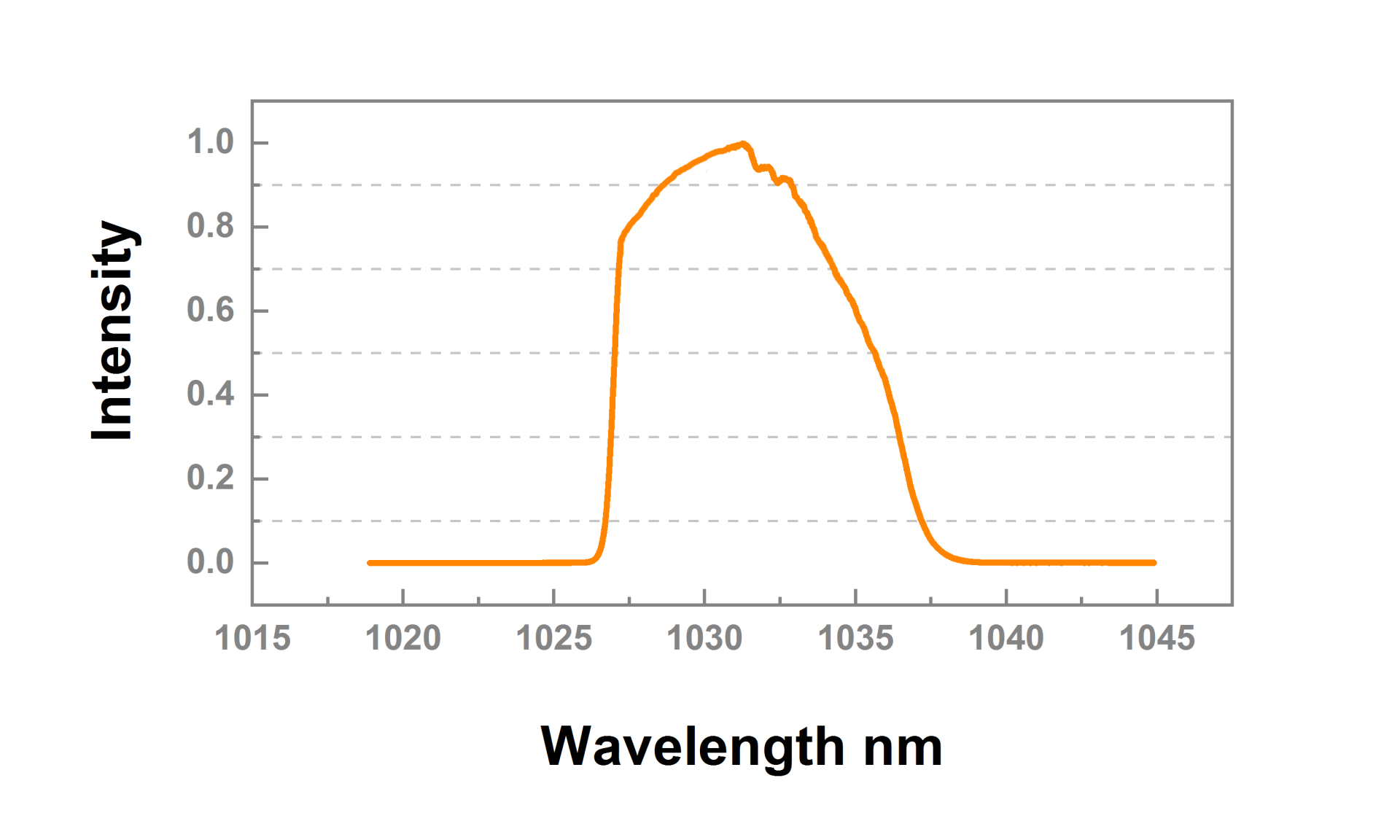

    Operating Wavelength

    1030-1045 nm

    Spectral Width

    5-15 nm

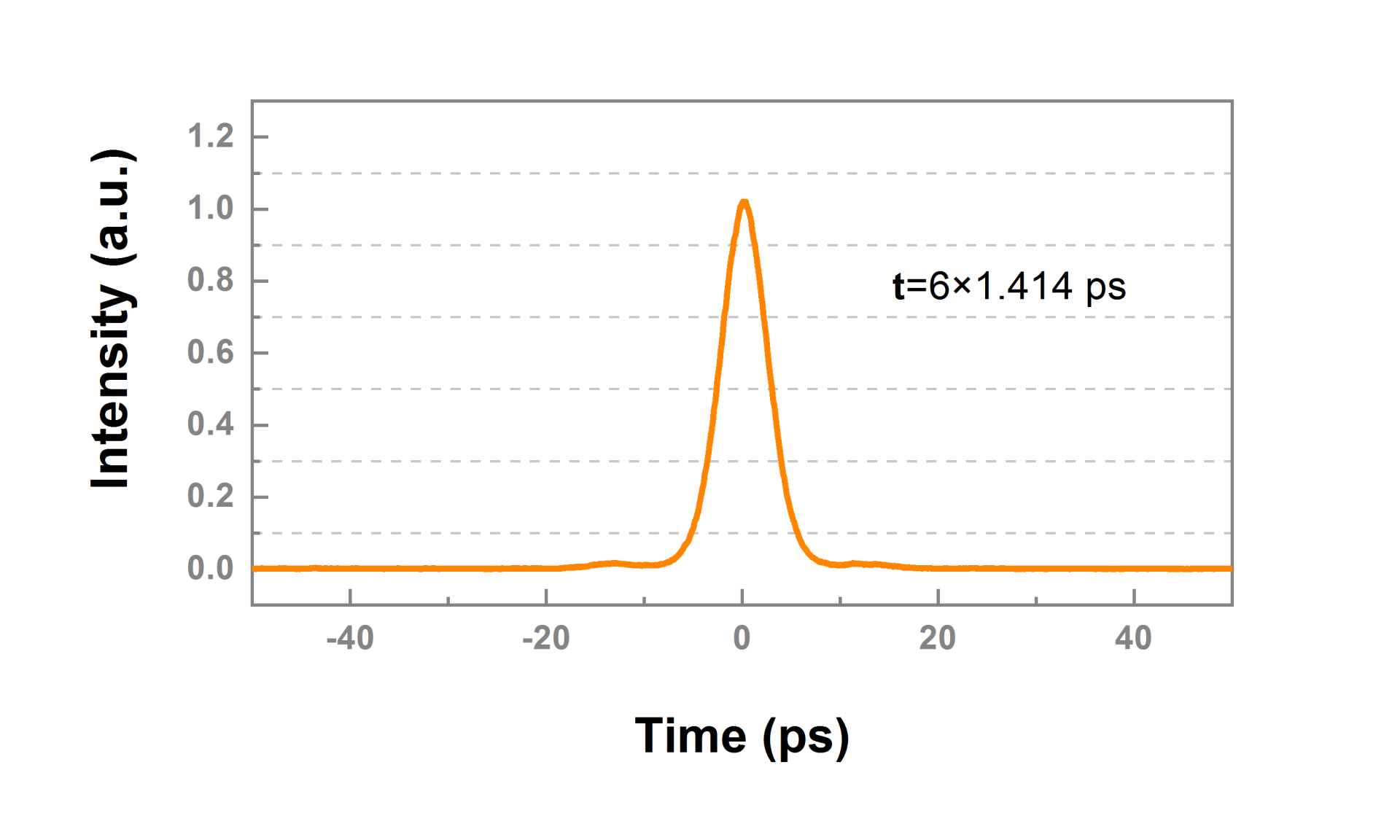

    Pulse width (FWHM)

    <10 ps (compressible to 300 fs)

    Repetition Rate

    20-50 MHz(Typical 25 MHz)

    Average Power

    >50 mW

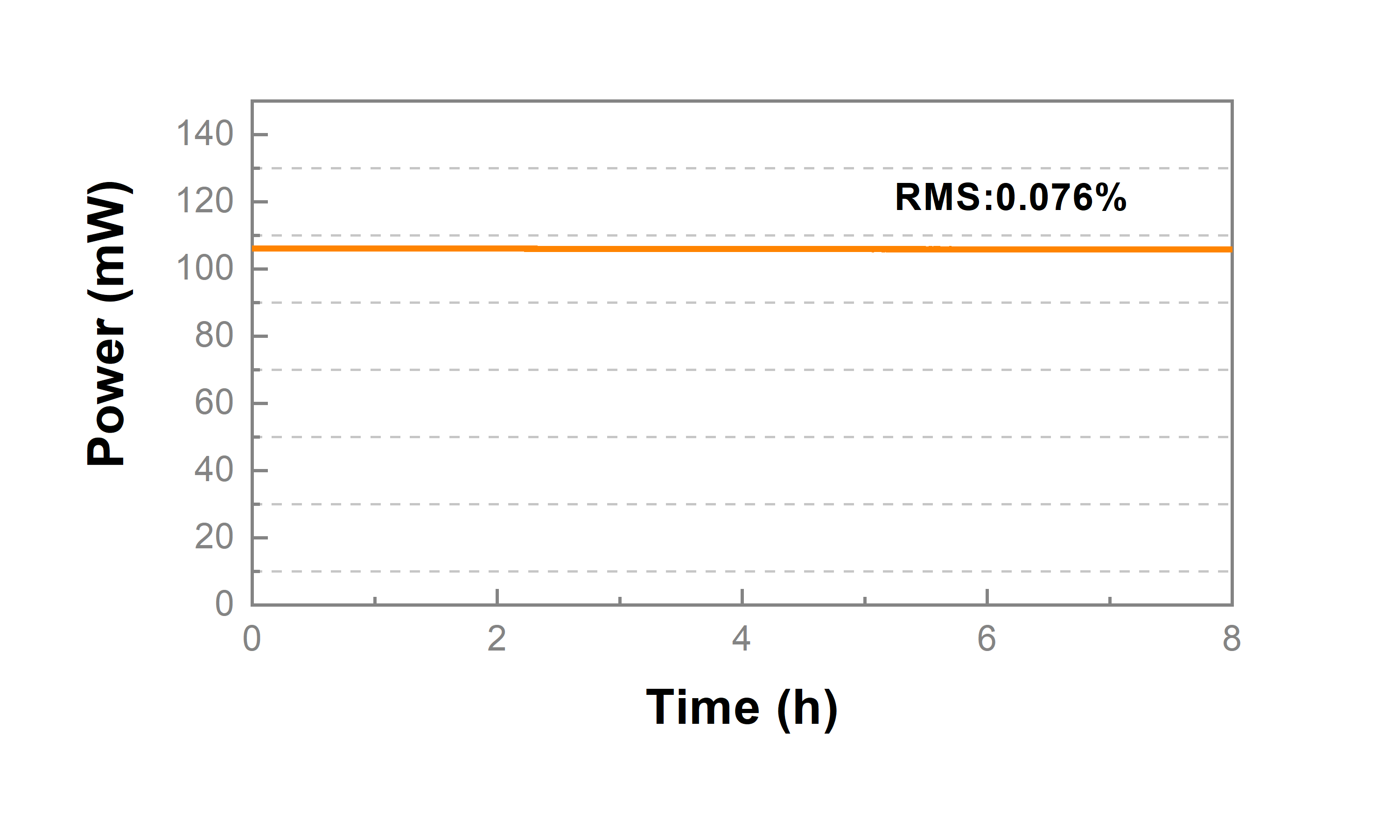

    Average Power Stability

    <0.5% RMS(12h@25℃)

    Polarization Extinction Ratio

    >20 dB

    Output Type

    PM SM fiber (>35cm), FC/APC narrow key jumper

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    12 VDC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    1.2 kg

    Dimensions

    185×127×50 mm

    Cooling

     Air cooling

  • Key Features:

    · 24/7 design

    · 10k times mooperationde-locked test

    · HASS test

    · Flexible, customized desigh

    · Customizable wavelength

    Applications:

    · Ultrafast laser seed

    · Time-resolved fluorescence

    · Laser ranging

    · Supercontinuum generation

    · Ultrafast spectroscopy
