2000 nm Ultrafast Fiber Laser


Rainbow 2000 OEM is a miniaturized version of Rainbow 2000 Pro. The laser is highly compact and is specially developed for oem integration, such as seeder for high-power mid-infrared pulsed systems.

Rainbow 2000 OEM has flexible parameters upon user requests. The laser operates at a wavelength of 1970±20nm, and has spectral bandwidth up to 100nm (narrower bandwidth are available as option), repetition rate of 80MHz and an average power up to 15mW.

Rainbow 2000 OEM is ideal for applications such as Mid-IR frequency conversion, Nonlinear optics and Silicon photonics. It can meet a broad range of R&D requirements of the scientific community.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 2000 nm Ultrafast Fiber Laser
    • Commodity ID: 1041148524281815040

    Rainbow 2000 OEM is a miniaturized version of Rainbow 2000 Pro. The laser is highly compact and is specially developed for oem integration, such as seeder for high-power mid-infrared pulsed systems.</br></br> Rainbow 2000 OEM has flexible parameters upon user requests. The laser operates at a wavelength of 1970±20nm, and has spectral bandwidth up to 100nm (narrower bandwidth are available as option), repetition rate of 80MHz and an average power up to 15mW.</br></br> Rainbow 2000 OEM is ideal for applications such as Mid-IR frequency conversion, Nonlinear optics and Silicon photonics. It can meet a broad range of R&D requirements of the scientific community.

    Laser Parameters

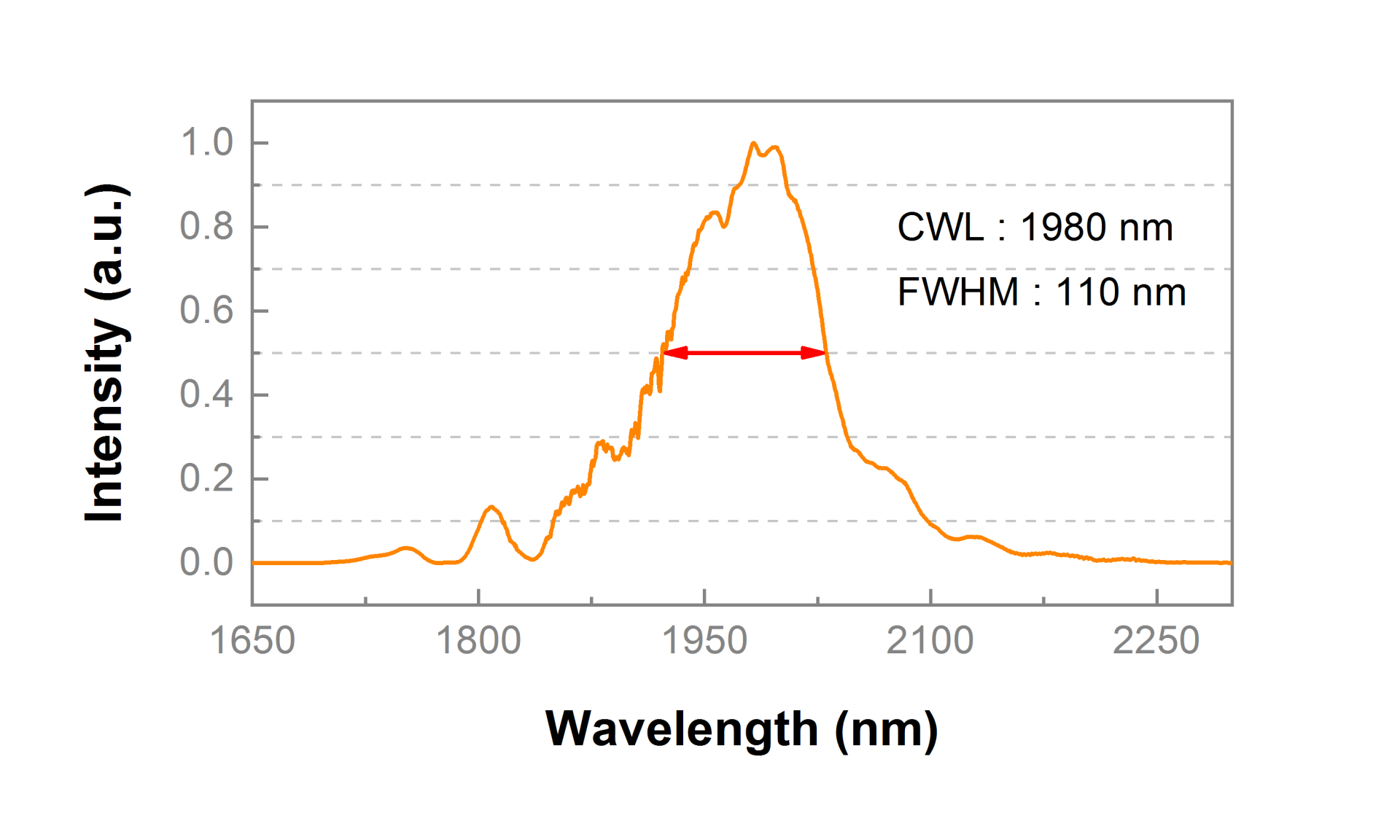

    Operating Wavelength

    1970±20 nm

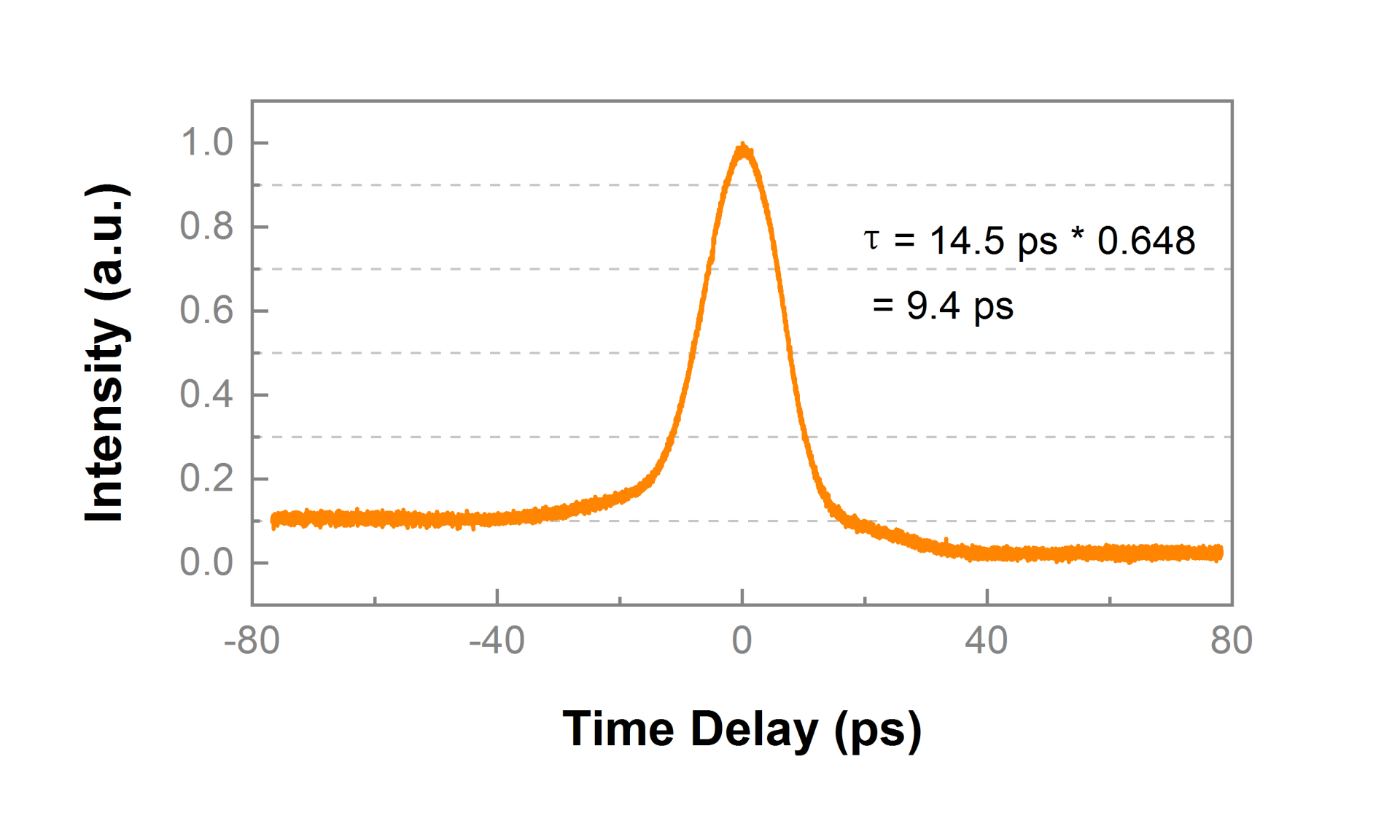

    Pulse width (FWHM)

    <10 ps

    Repetition Rate

    80 MHz

    Average Power

    >15 mW

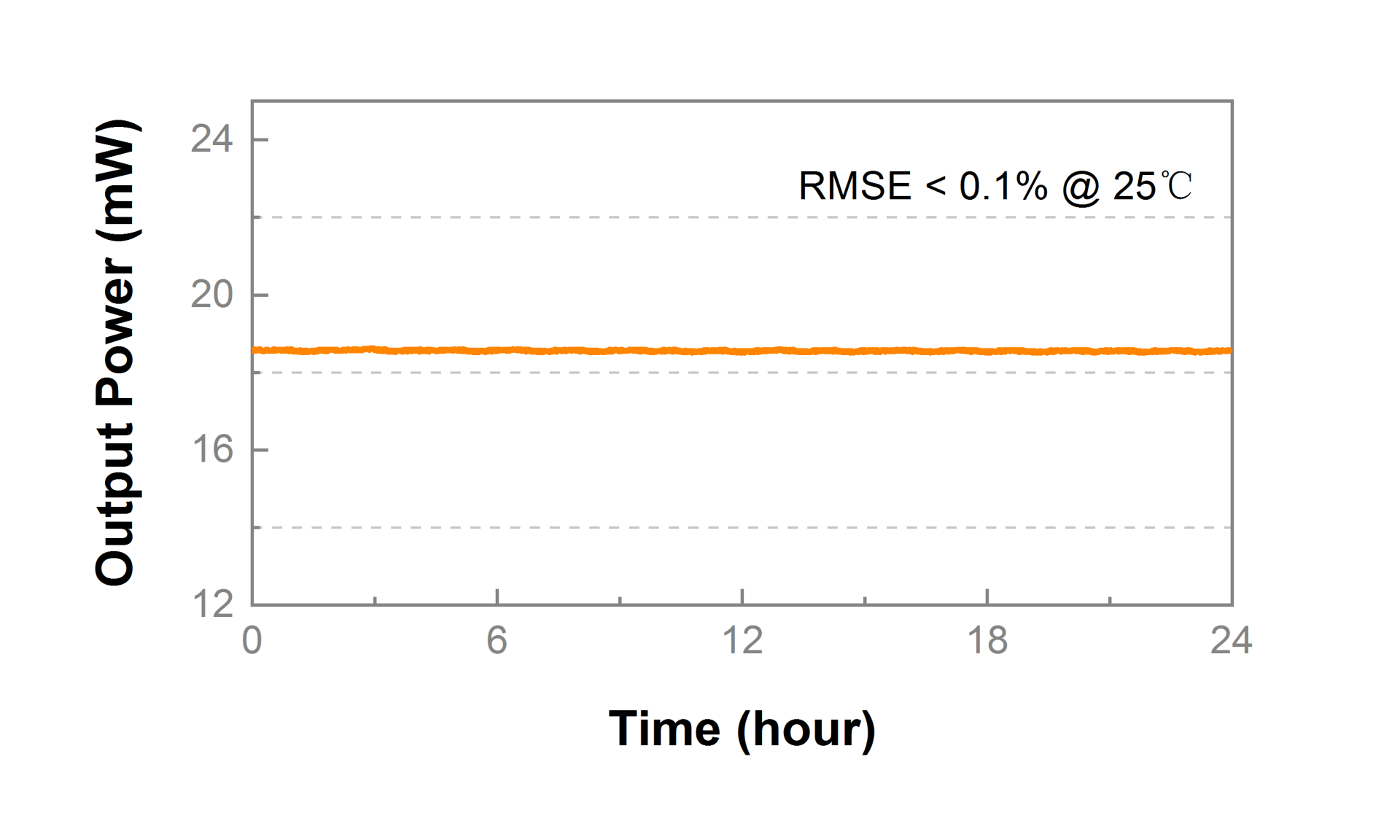

    Aerage Power Stability

    <0.5% RMS(12h@25℃)

    Pulse Energy

    >0.18 nJ

    Polarization Extinction Ratio

    >20 dB

    Output Type

    PM 1550 fiber, FC/APC connector

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    12 VDC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    1.2 Kg

    Dimensions

    200×140×48 mm

    Cooling

     Air cooling

  • Key Features:

    · Customizable wavelength

    · Picosecond / Femtosecond level

    · Linear polarization

    · Diffration-limited beam

    · Turn-key system

    Applications:

    · Mid-IR frequency conversion

    · Nonlinear optics

    · Multiphoton imaging

    · Silicon photonics

    · Mid-IR spectroscopy
