1550 nm High Power Ultrafast Fiber Laser

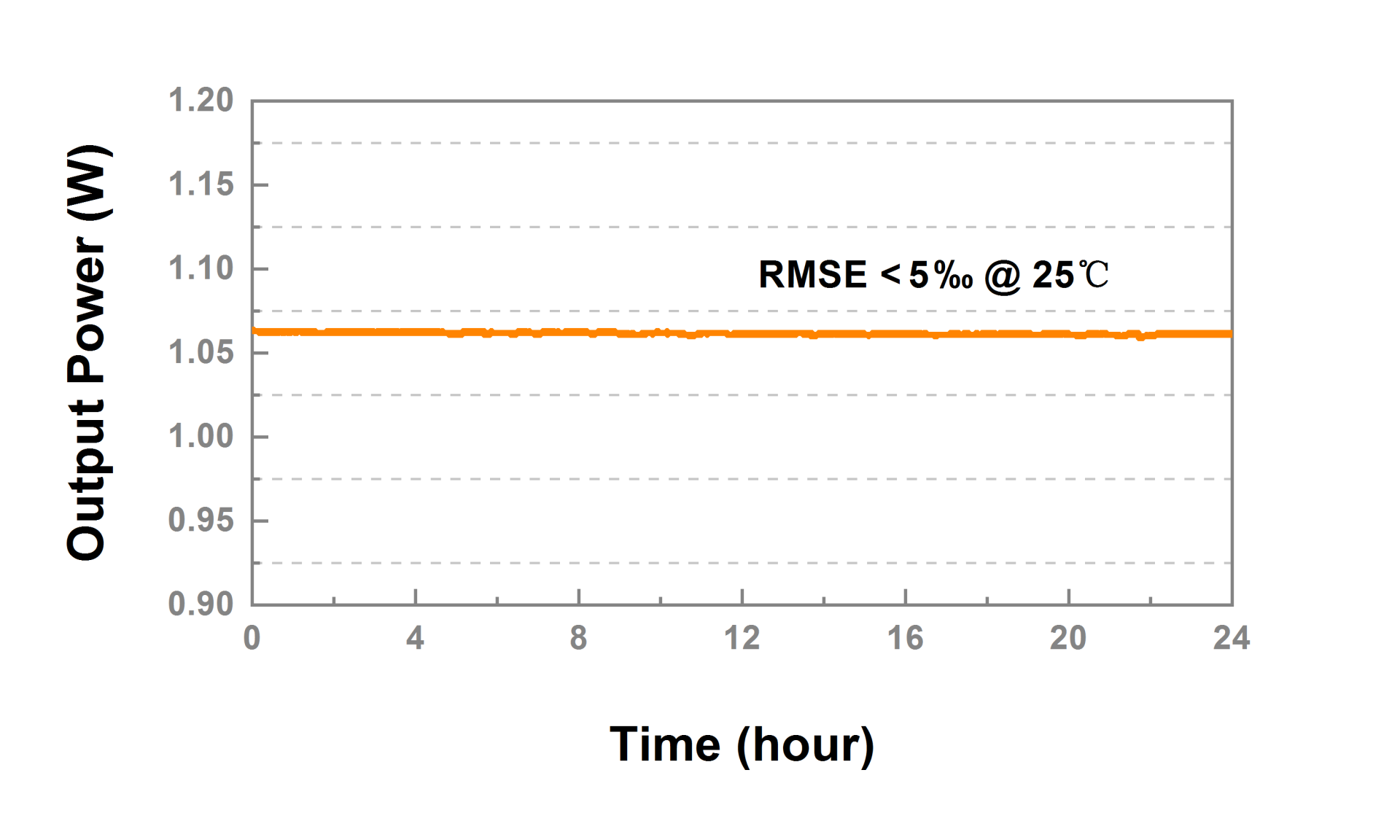

Rainbow 1550 HP femtosecond Er-fiber laser is the flagship of NPI Lasers’ 1550 nm product series. It has an average output power exceeding 1 W, and a near diffraction-limited free space laser beam with sub-150 fs pulse width. The laser boasts 24-hour power stability within 0.5%, currently the highest standard in industry.

Rainbow 1550 HP is ideal for applications such as THz-TDS (time-domain terahertz generation), non-linear optics, quantum optics, SHG/THG imaging and multi-photon imaging. It can meet a broad range of R&D requirements of the scientific community.

product details

  • Detail
  • Test Data
  • Applications
  • Datasheet
  • Quotation
    • Commodity name: 1550 nm High Power Ultrafast Fiber Laser
    • Commodity ID: 1041148396229713920

    Rainbow 1550 HP femtosecond Er-fiber laser is the flagship of NPI Lasers’ 1550 nm product series. It has an average output power exceeding 1 W, and a near diffraction-limited free space laser beam with sub-150 fs pulse width. The laser boasts 24-hour power stability within 0.5%, currently the highest standard in industry.</br></br> Rainbow 1550 HP is ideal for applications such as THz-TDS (time-domain terahertz generation), non-linear optics, quantum optics, SHG/THG imaging and multi-photon imaging. It can meet a broad range of R&D requirements of the scientific community.

    Laser Parameters

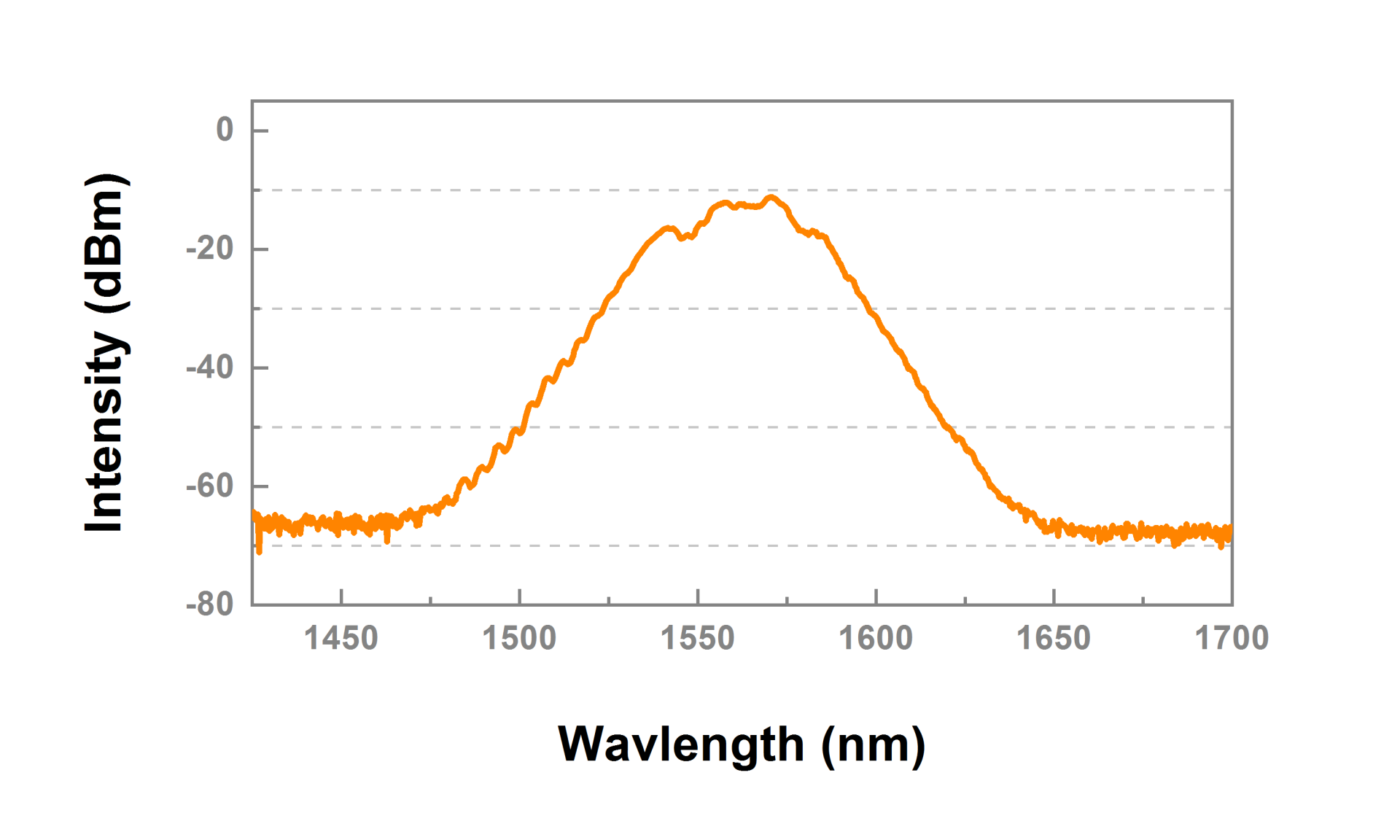

    Operating Wavelength

    1560±10 nm

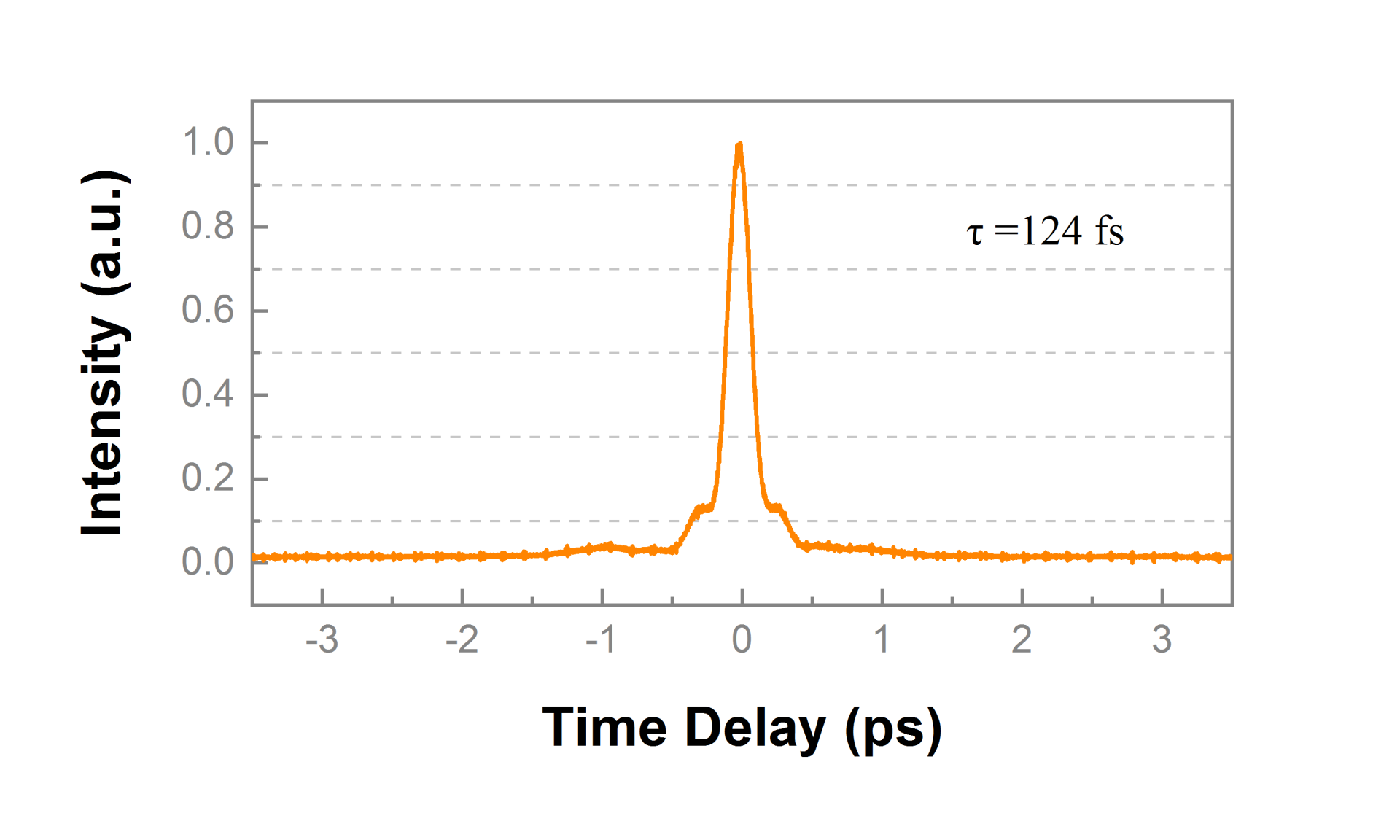

    Pulse width (FWHM)

    <150 fs

    Repetition Rate

    80 MHz

    Average Power

    >1 W
    Aerage Power Stability

    <0.5% RMS(12h@25℃)

    Pulse Energy

    >12.5 nJ

    Polarization Extinction Ratio

    >20 dB

    Output Type

    Spatially collimated output

    Electrical, Environmental and Mechanical Parameters

    Supply Voltage

    100-240 VAC

    Operational Temperature Range

    15-35 ℃

    Operational Humidity Range

    20~80 ( non-condensing )

    Weight

    20 kg

    Dimensions

    448×300×134 mm, 445×383×97 mm

    Cooling

     Air cooling

  • Key Features:

    ·Long-term stable operation

    · High pulse energy

    · Reliable mode-locking

    · All-PM solution

    Applications:

    · Terahertz generation

    · Two-photon polymerization

    · Two-photon imaging

    · Second-harmonic imaging
