1064 nm ps Fiber Laser Seed

型号:
Blade series 1um picosecond mode-locked fiber seed laser is developed and manufactured solely by NPI Lasers. The seed has pulse width of 5-60 ps Optional, repetition rate selectable between 20-80 MHz, and average power >75mW.

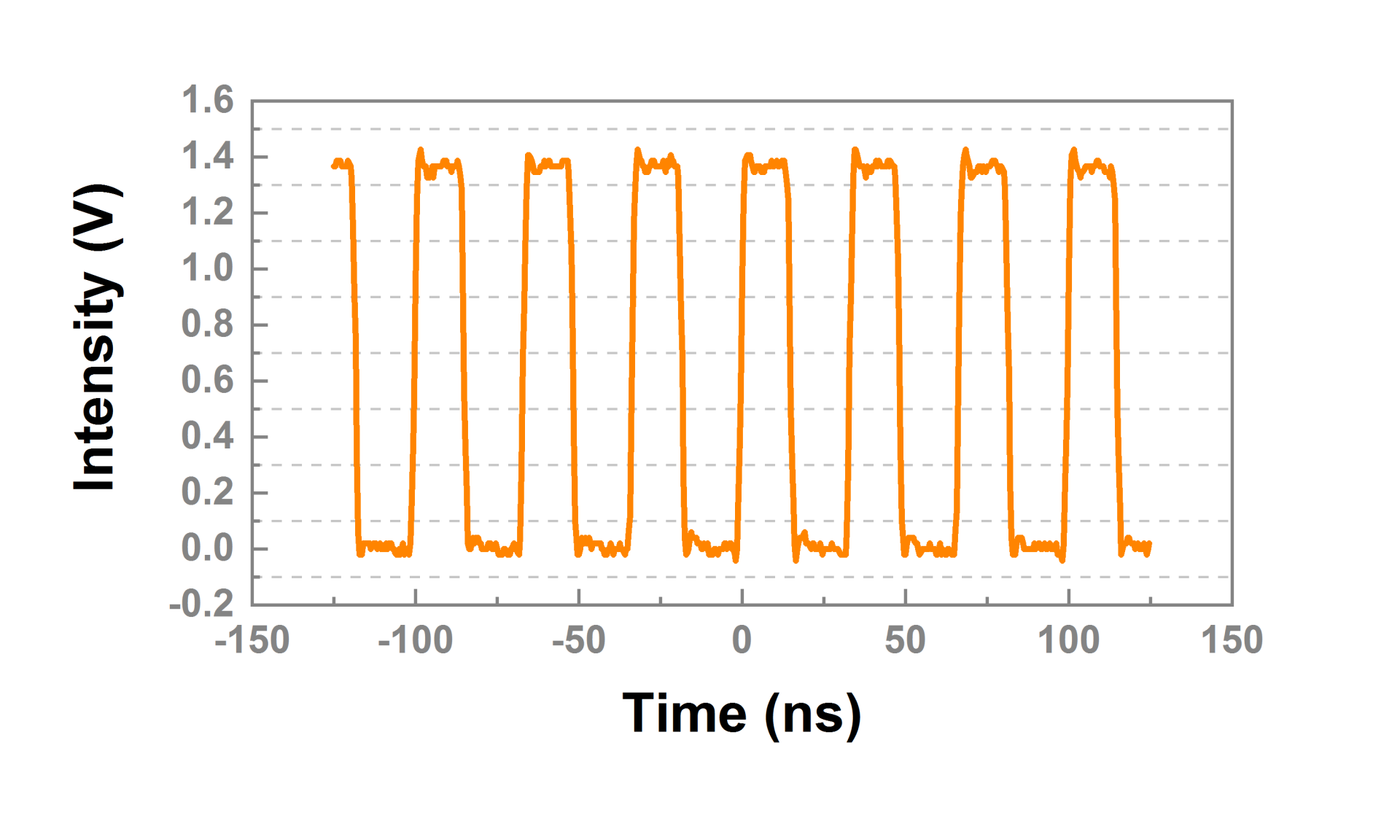

Blade series 1um picosecond mode-locked fiber seed laser adopts a SESAM based oscillator structure with PM fiber. It uses NPI Lasers' own optical switch packaging technology, and integrates NPI Lasers' unique "Smart-Lock" processing and characterization technologies to ensure stability and reliability. The laser has synchronous output via TTL port and DB9 connector is available for I/O control; it also supports remote control from PC. The laser is equipped with one button power switch, and is compact and maintenance-free.

Blade series 1um picosecond mode-locked fiber seed laser is designed for SSL picosecond laser power amplification. It is suitable for any round-the-clock industrial use cases and other commercial applications.
Retail price
0.0
Market price
0.0
Number of views:
1093
Quantity
-
+
Stock:
1
Main Specification
Parameters
Test Data
Applications
Datasheet
Quotation

Laser Parameters

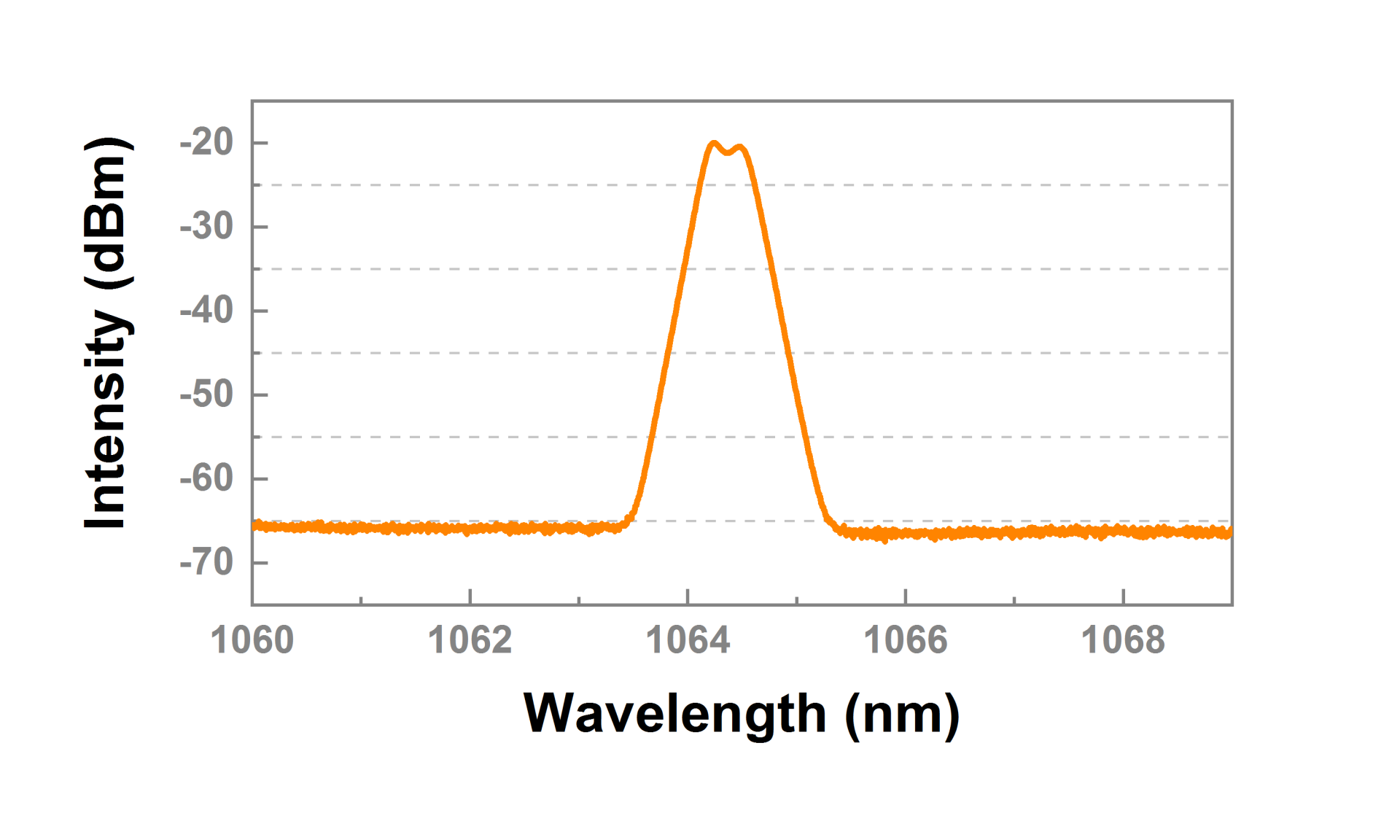

Operating Wavelength

1064.3±0.15 nm

Spectral Width

< 0.5 nm

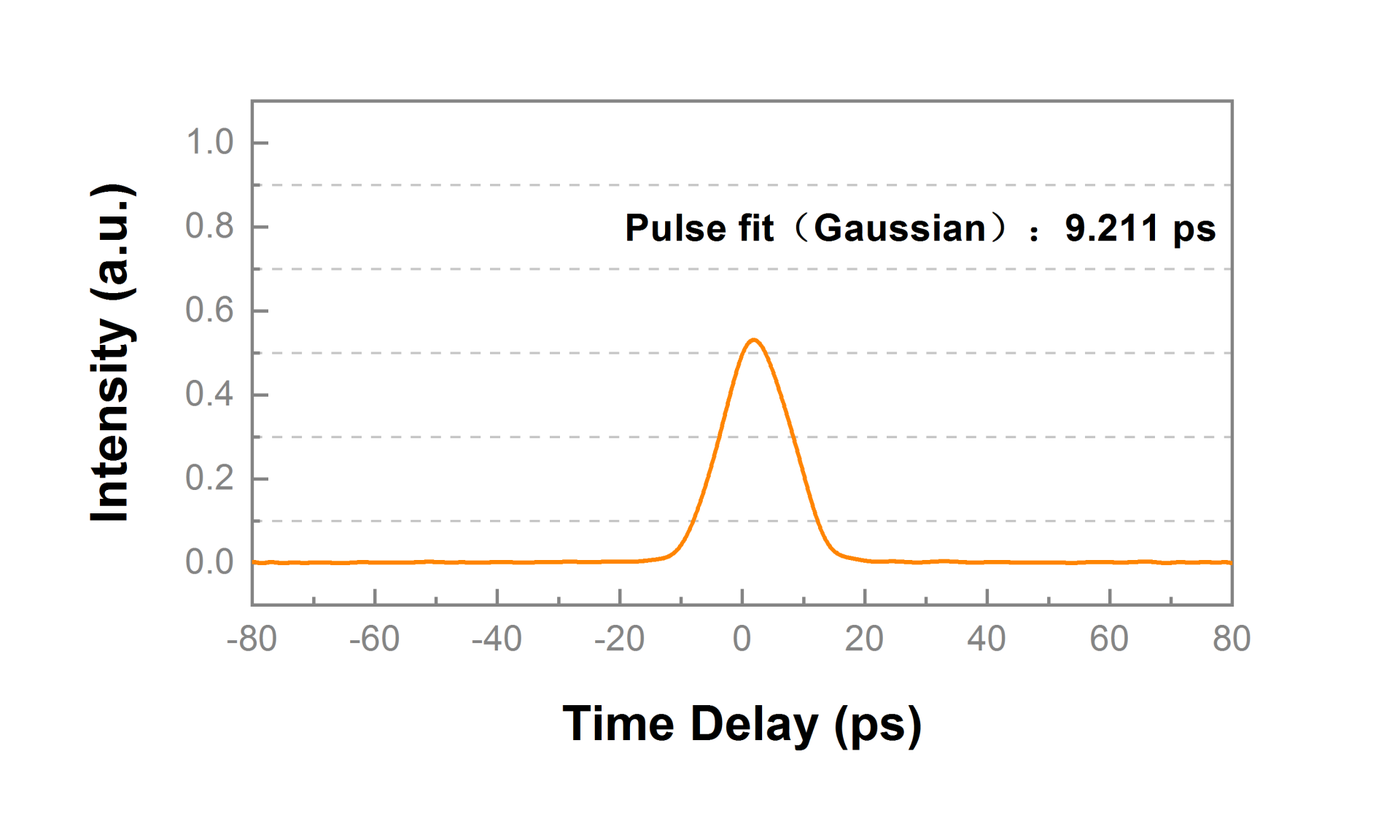

Pulse width (FWHM)

5-60 ps Optional(Typical 10 ps)

Repetition Rate

20-80 MHz(Typical 30 MHz)

Average Power

>75 mW(Adjustable or non adjustable power)

Average Power Stability

<0.5% RMS(12h@25℃)

Polarization Extinction Ratio

>20 dB

Output Type

PM SM  fiber (>35cm), FC/APC narrow key jumper

Electrical, Environmental and Mechanical Parameters

Supply Voltage

12 VDC

Operational Temperature Range

15-35 ℃

Operational Humidity Range

20~80 ( non-condensing )

Weight

1.2 Kg

Dimensions

185×127×50

Cooling

Air cooling

We could not find any corresponding parameters, please add them to the properties table

Key Features:

· 24/7 design of high reliable operation

· 10k times mode-locked test

· HASS test

· Flexible, customized desigh

· Customizable wavelength

Applications:

· Ultrafast laser seed

· Time-resolved fluorescence detection

· Laser ranging

· Supercontinuum generation

· Ultrafast spectroscopy



Please contact us for sales requests by email or by phone:

Tel:025-84985077

Email:sales@npilasers.com

You can also use the sales request form below.
